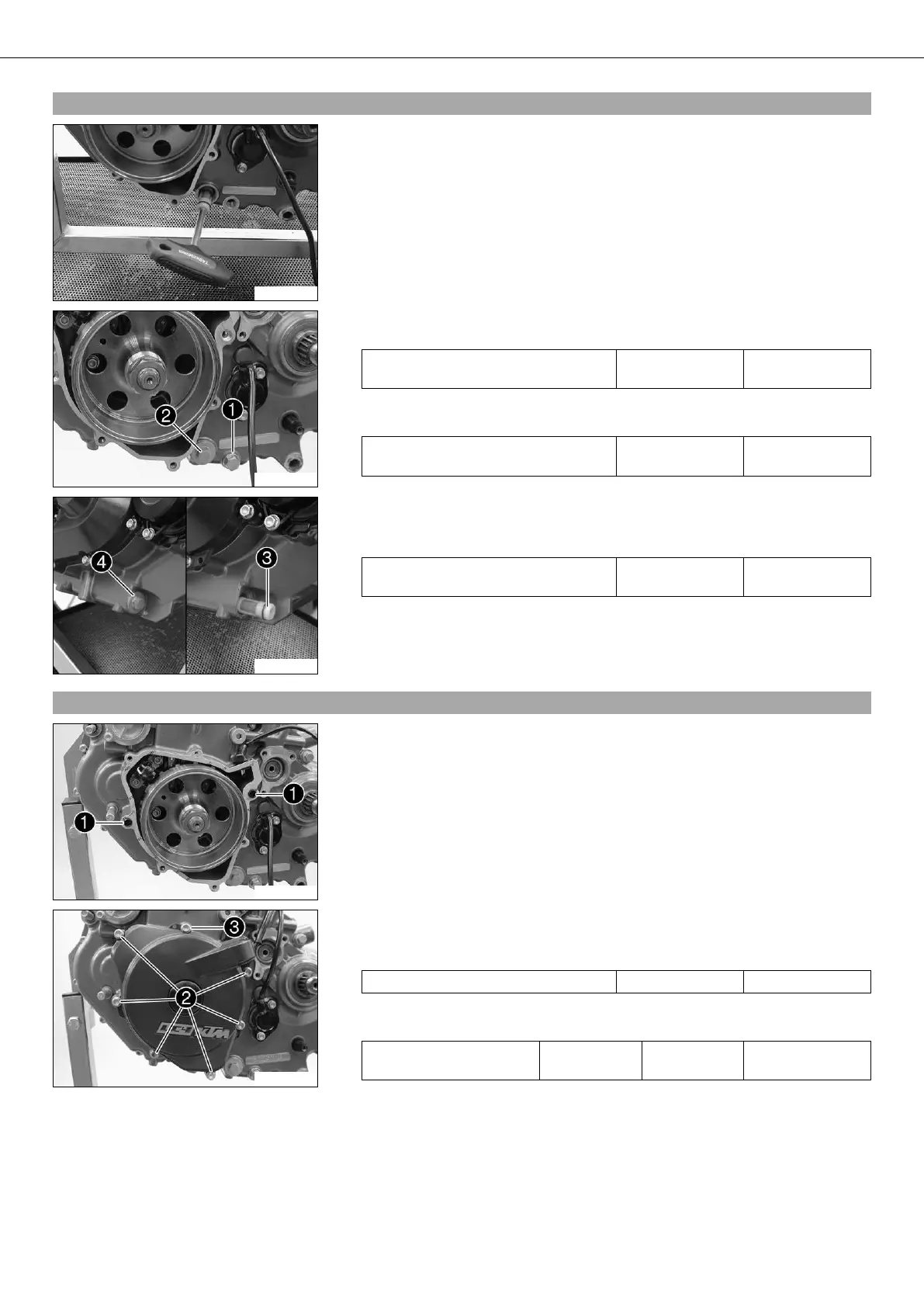

30/ASSEMBLING THE ENGINE 151
20.31Installing oil screens
300152-10
– Push the oil screen with O-rings on to a pin wrench. Push the pin wrench through
the opening into the drill hole of the opposite engine case wall and push the oil
screen as far as possible into the engine case.
300008-10
– Install the oil drain plug with magnet  and a new seal ring and tighten it.
Guideline
Oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
– Install and tighten the plug  with O-rings.
Guideline
Plug, oil screen M20x1.5 15 Nm
(11.1 lbf ft)
300161-11
– Position the oil screen  with O-rings.
– Install and tighten the plug  with O-rings.
Guideline
Plug, oil screen M20x1.5 15 Nm
(11.1 lbf ft)
20.32Installing alternator cover
300005-10
– Apply sealing compound lightly in the area of the cable support sleeve.
– Install the dowel . Put on the alternator cover seal.
300004-11
– Position the alternator cover.
– Mount and tighten screws .
Guideline
Screw in alternator cover M6 10 Nm (7.4 lbf ft)
– Mount and tighten screw .
Guideline
Screw, alternator cover
(chain shaft through-hole)
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243â„¢
