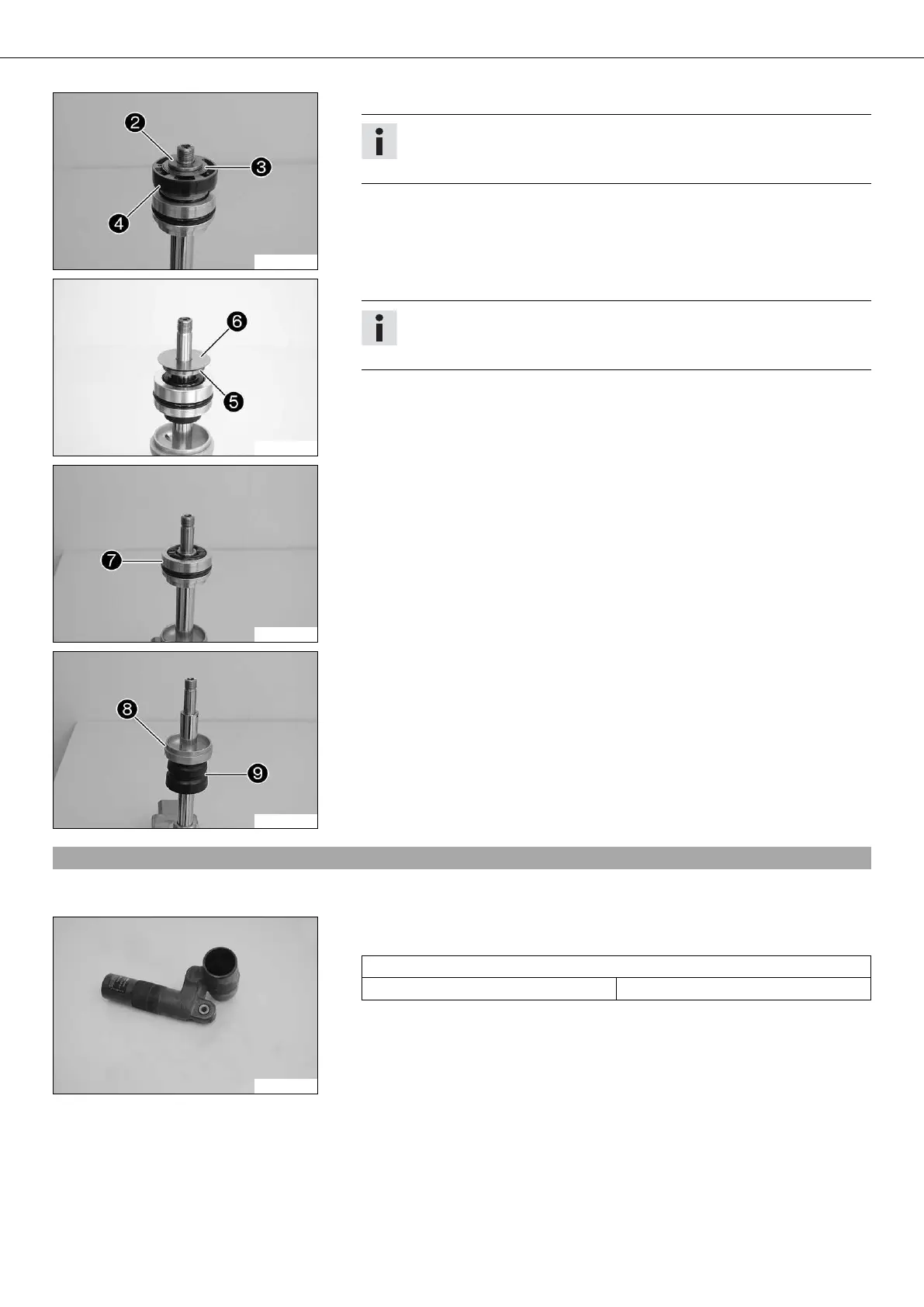

04/SHOCK ABSORBER, SWINGARM 41
300541-10
– Remove supporting plate  and rebound shim stack  together with piston .
Info
Thread the rebound shim set on a screwdriver and set the parts down
together.
200572-11
– Remove compression shim stack  with supporting plate .
Info
Thread the compression shim stack on a screwdriver and set the parts down
together.
300542-10
– Remove seal ring retainer .
300543-10
– Remove locking cap  and rubber buffer .
8.15Checking the damper
Condition
The damper has been disassembled.
300596-10
– Measure the inside diameter at both ends and in the center of the damper car-
tridge.
Damper cartridge
Minimum diameter 46.10 mm (1.815 in)
» If the measured value is greater than the specified value:
– Change the damper cartridge.
– Check the damper cartridge for damage and wear.
» If there is damage or wear:
– Change the damper cartridge.
