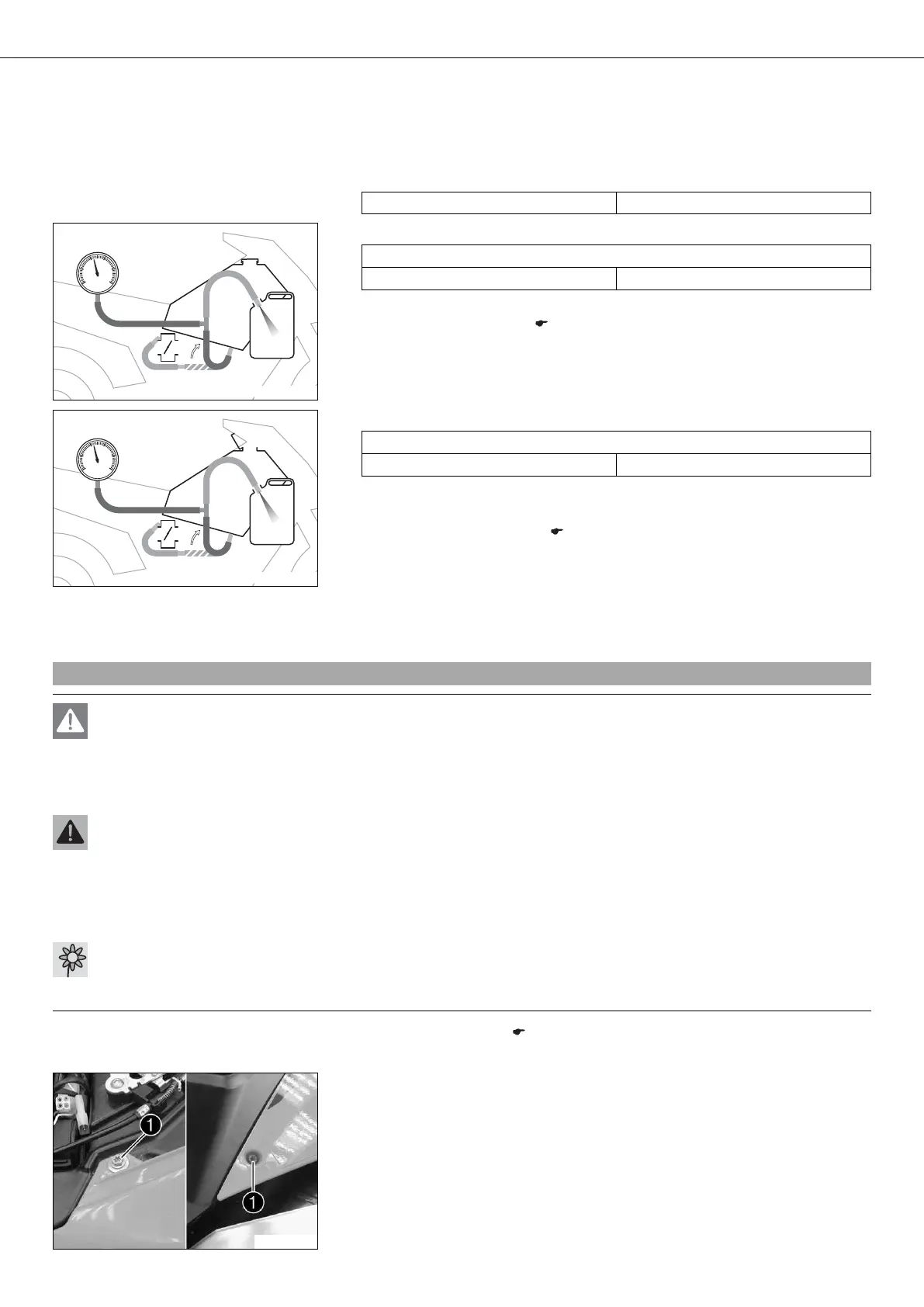

07/FUEL TANK, SEAT, TRIM 60
– Select "Fuel pump relay function test".
– Press "Continue".
– In the KTM diagnostics tool, read the information page and start the actuator test
with "Continue".
Guideline
Maximum duration of actuator test 3 min
400927-01
– Check the fuel pressure with the filler cap closed.
Fuel pressure
When the fuel pump is active 3.3… 3.7 bar (48… 54 psi)
» If the specification is not reached:
– Open the filler cap. ( p. 58)
– Check the tank air vent system.
400928-01
– Check the fuel pressure with the filler cap open.
Fuel pressure
When the fuel pump is active 3.3… 3.7 bar (48… 54 psi)
» If the specification is not reached:
– Check that the fuel line is clear.
– Change the fuel filter. ( p. 60)
– Replace the fuel pump.
– Stop the "Function test of fuel pump control" actuator test by pressing the "Quit" but-
ton.
– Dismantle the special tools.
– Connect the fuel hose connection.
11.8Changing the fuel filter
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse immedi-
ately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed, con-
tact a doctor immediately. Change clothing that has come into contact with fuel. Store fuel in a suitable canister according
to regulations and keep it out of the reach of children.
Warning
Environmental hazard Improper handling of fuel is a danger to the environment.
– Do not allow fuel to get into the ground water, the ground, or the sewage system.
– Disconnect the battery. ( p. 72)
– Drain the fuel from the fuel tank into a suitable container.
300562-10
– Remove screws .
