30/ASSEMBLING THE ENGINE 139

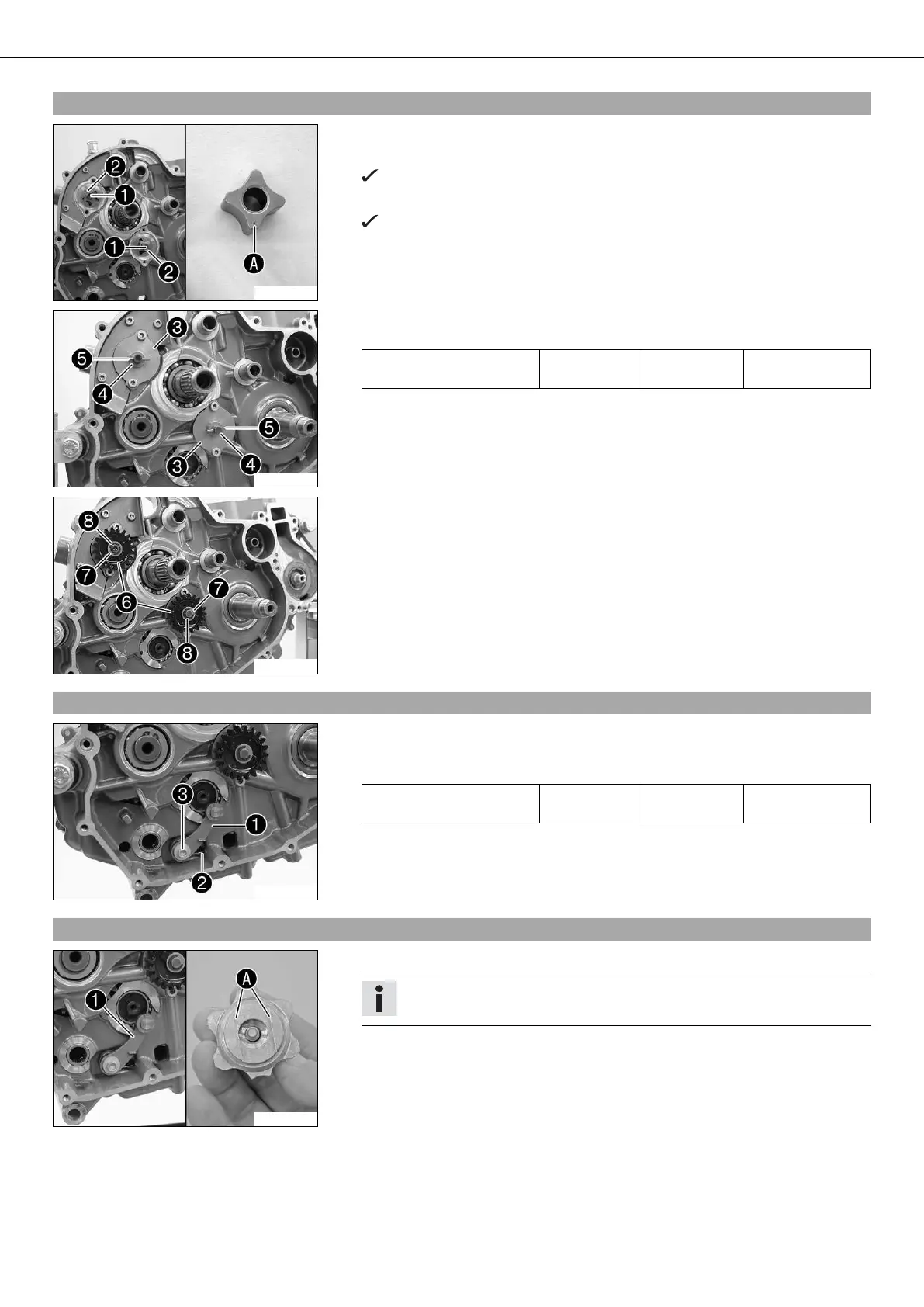

20.4Installing oil pumps
300073-10
– Install pins and internal rotors on both oil pump shafts.
– Mount external rotors in the engine case.
The marking is not visible after mounting.
– Mount the oil pump shafts with internal rotors .
The marking is visible after mounting.
– Oil the parts.
300071-11
– Position both oil pump covers . Mount and tighten the screws.
Guideline
Screw, oil pump cover M5 6 Nm
(4.4 lbf ft)
Loctite
®
243™
– Install washers and pins .
300070-11
– Mount the oil pump gears , washers and lock washers .
20.5Installing locking lever
300069-11
– Position locking lever with sleeve and spring .
– Mount and tighten screw .
Guideline
Screw, locking lever M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
20.6Installing shift drum locating
300068-10
– Press locking lever down and position shift drum locating.
Info
The flat surfaces of the shift drum locating are not symmetric.
