KTM 690 ENDURO EU 2008 User Manual

04/SHOCK ABSORBER, SWINGARM 44

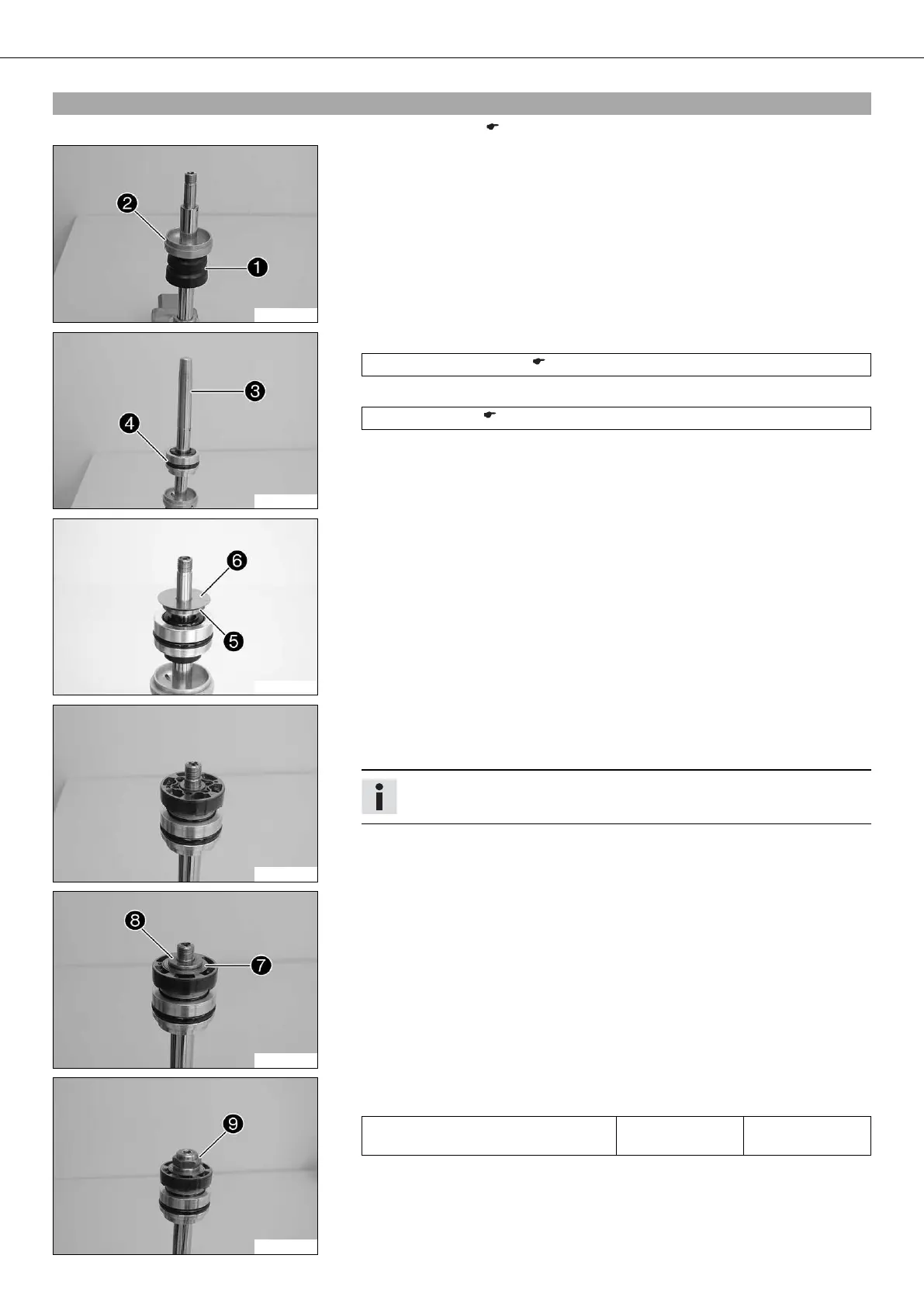

8.18Assembling the piston rod
– Check the damper. ( p. 41)
300543-11
– Clamp the piston rod with the heim joint in a vise.
– Mount rubber buffer  and locking cap .
300548-10
– Position special tool  on the piston rod.
Mounting sleeve (T1515) ( p. 223)
– Grease the seal ring and push seal ring retainer  on to the piston rod.
Lubricant (T625) ( p. 211)
– Remove the special tool.
200572-11
– Mount supporting plate  with the rounded side facing downward.
– Mount the compression shim stack  with the smaller shims facing downward.
300547-10
– Sand both sides of the piston on a surface plate using 1200-grit sandpaper.
– Clean the piston.
– Assemble the piston.
Info
The piston is the same on both sides.
300541-11
– Mount the rebound shim stack  with the smaller shims facing upward.
– Install supporting plate .
300540-11
– Mount and tighten nut .
Guideline
Piston rod nut M12x1 40 Nm
(29.5 lbf ft)
