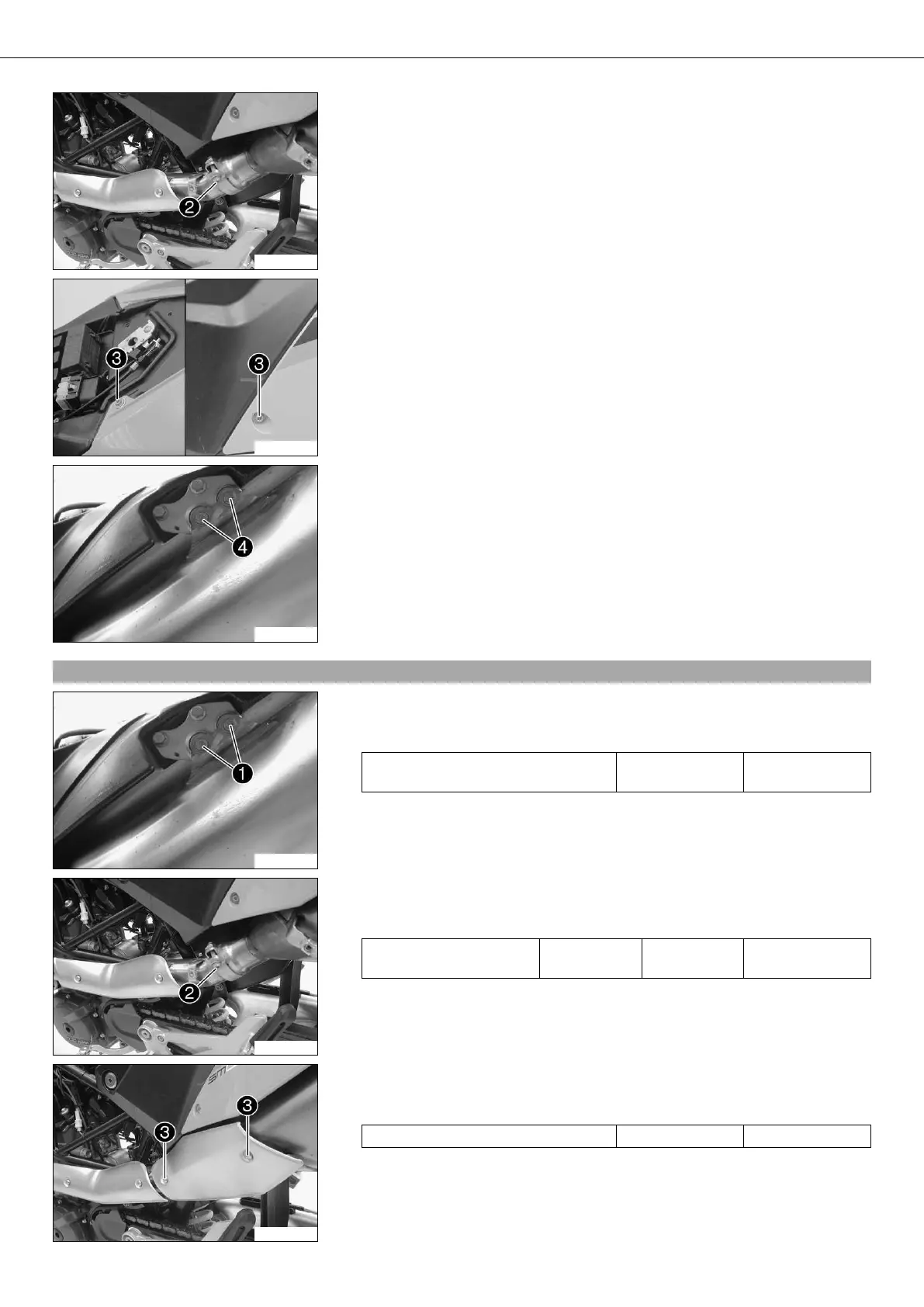

05/EXHAUST 53
302045-10
– Loosen screw .
302046-10
– Remove screws .
– Lift the rear fairing.
302047-10
– Remove screws .
– Remove the main silencer.
9.4Installing the main silencer
302047-11
– Position the main silencer.
– Mount and tighten screws .
Guideline
Screw, main silencer holder M8 25 Nm
(18.4 lbf ft)
302045-10
– Position the exhaust clamp.
– Tighten screw .
Guideline
Screw, exhaust clamp on
manifold
M8 25 Nm
(18.4 lbf ft)
Copper paste
302044-11
– Position the exhaust heat shield.
– Mount and tighten screws .
Guideline
Screw, exhaust heat shield M5 8 Nm (5.9 lbf ft)
