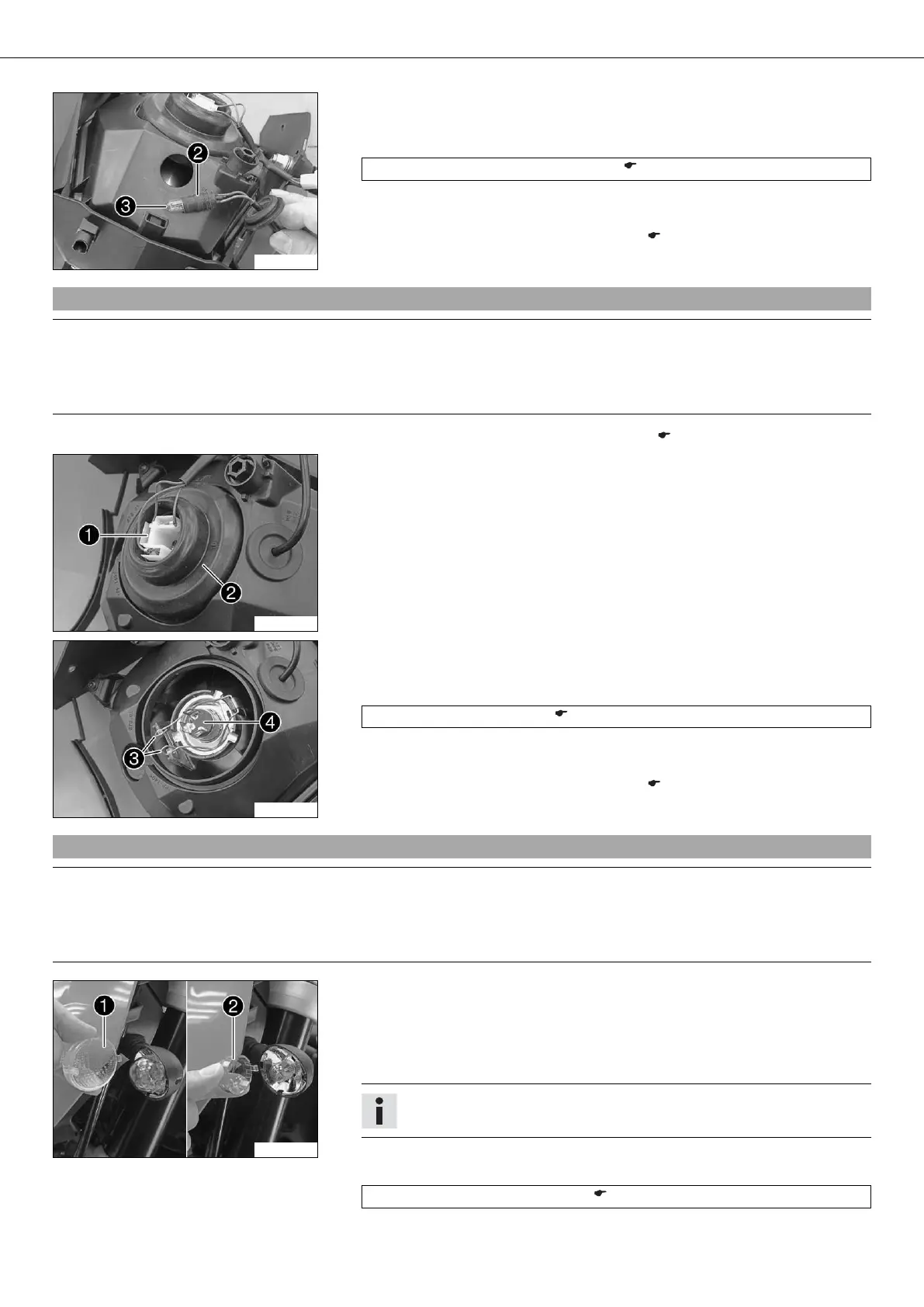

14/LIGHT SYSTEM, INSTRUMENTS 91
600612-10
– Pull bulb socket  out of the reflector.
– Pull parking light bulb  out of the bulb socket.
– Insert a new parking light bulb in the bulb socket.
Parking light (W5W / socket W2.1x9.5d) ( p. 178)
– Insert the bulb socket in the reflector.
– Insert the rubber cap.
– Install the headlight mask with the headlight. ( p. 90)
16.11Changing the headlight bulb
Note
Damage to reflector Reduced luminance.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
– Remove the headlight mask with the headlight. ( p. 89)
600610-10
– Pull off connector .
– Take off rubber cap  of the headlight bulb.
600611-10
– Detach spring bar .
– Remove headlight bulb .
– Insert a new headlight bulb into the headlight housing.
Headlight (H4 / socket P43t) ( p. 178)
– Fix the headlight bulb in the headlight using the spring bar.
– Replace the rubber cap. Attach the connector.
– Install the headlight mask with the headlight. ( p. 90)
16.12Changing the flasher bulb
Note
Damage to reflector Reduced luminance.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
100301-10
– Remove the screw from the rear of the flasher housing.
– Tilt the headlamp diffuser  carefully forward and take it off.
– Lightly squeeze the orange plug  in the area of the holding lugs and take it off.
– Press the flasher bulb carefully into the socket, turn it about 30° anticlockwise,
and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from grease.
– Press the new flasher bulb carefully into the socket and turn it clockwise until it
stops.
Turn signal (R10W / socket BA15s) ( p. 178)
