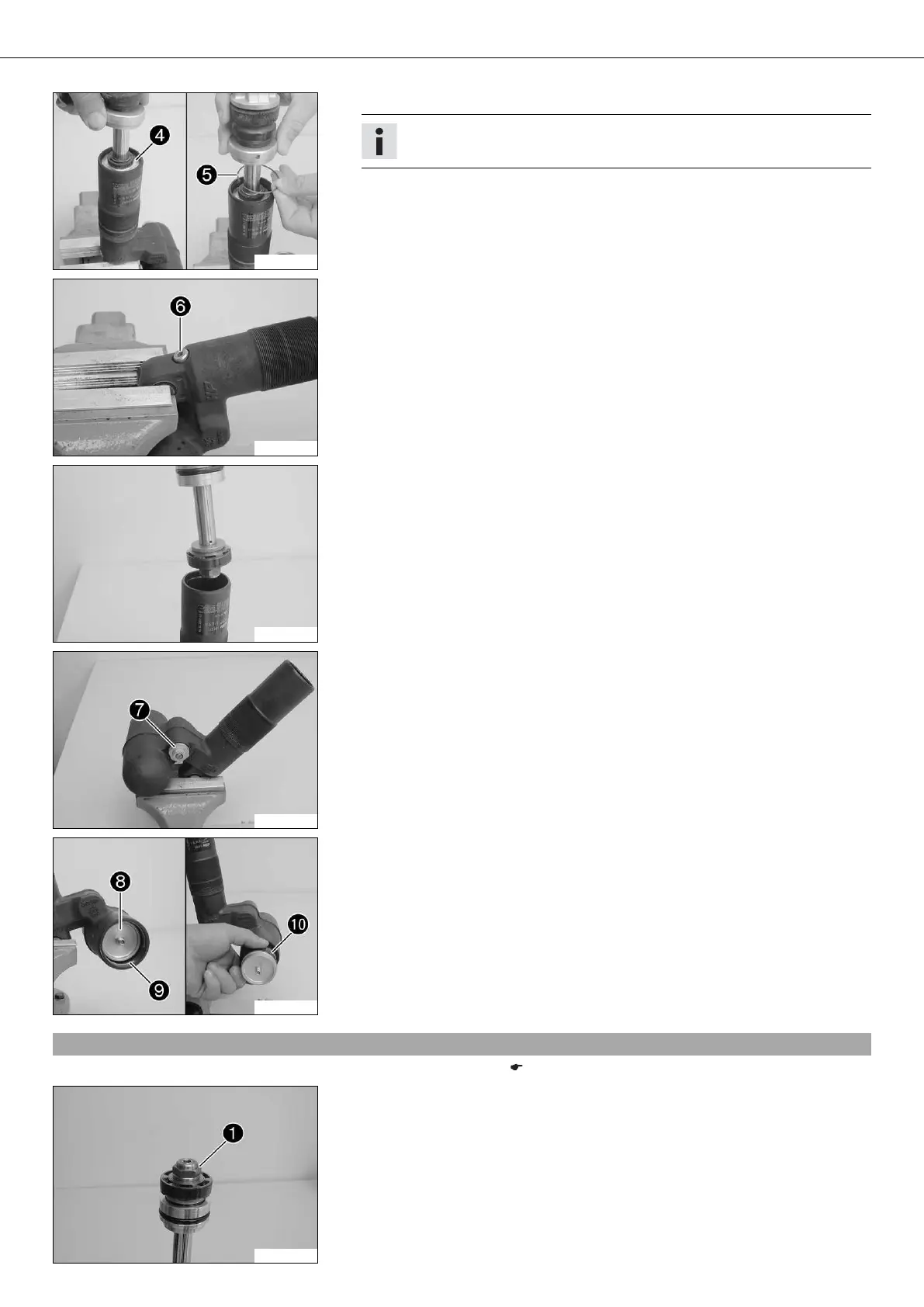

04/SHOCK ABSORBER, SWINGARM 40
300585-10
– Press in seal ring retainer . Remove lock ring .
Info
Do not scratch the inner surface.
300586-10
– Remove screw . Drain the oil.
300587-10
– Remove the piston rod. Drain the remaining oil.
300588-10
– Remove compression damping adjuster . Remove the spring, sleeve and piston.
300589-10
– Push back membrane cover .
– Remove lock ring .
– Remove membrane .
8.14Disassembling the piston rod
– Dismantle the damper. ( p. 39)
300540-10
– Clamp the piston rod with the heim joint in a vise.
– Remove nut .
