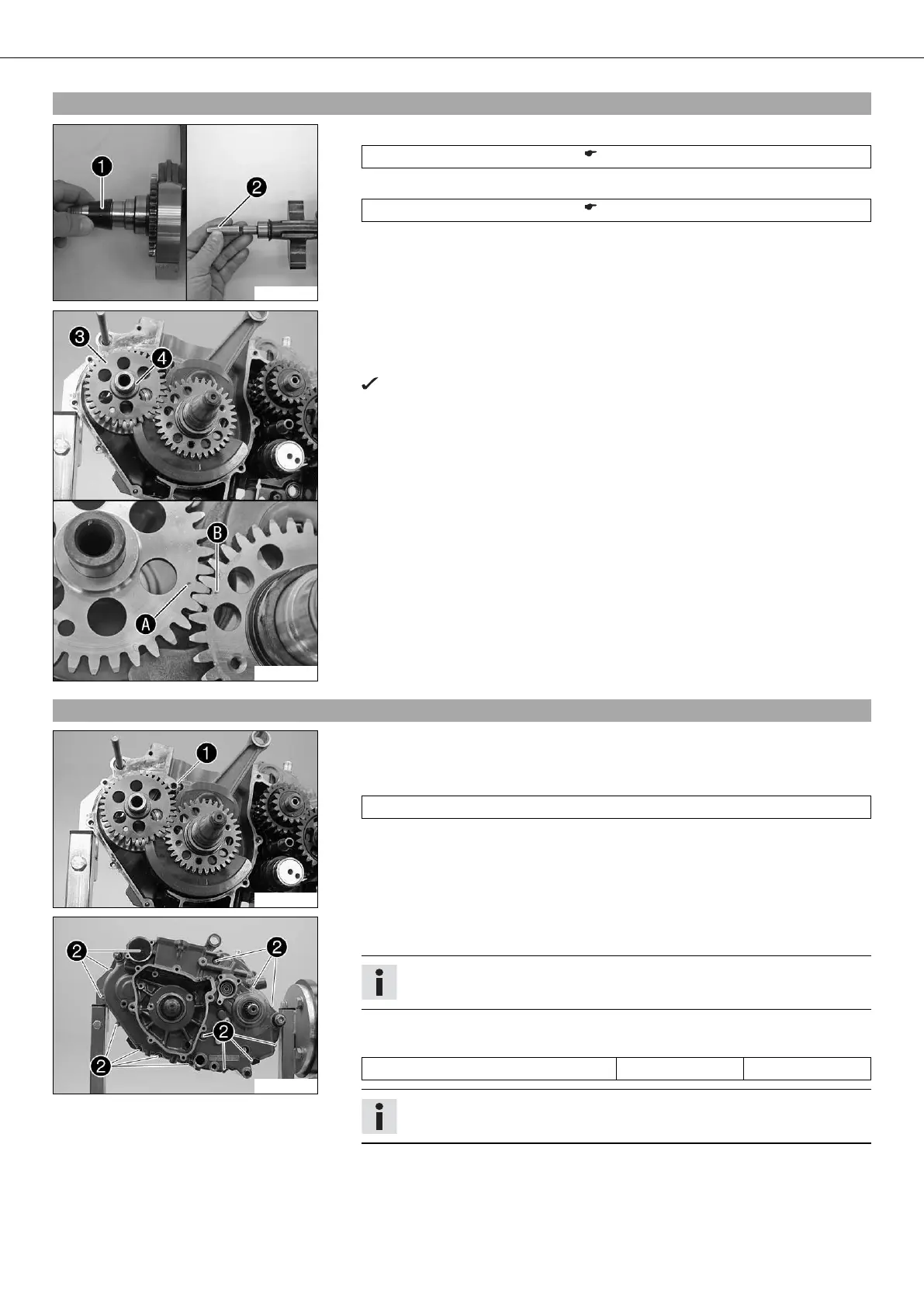

30/ASSEMBLING THE ENGINE 138
20.2Installing crankshaft and balancer shaft
300085-10
– Mount the special tool on the alternator side of the crankshaft.
Mounting sleeve (75029080000) ( p. 218)
– Mount the special tool on the balancer shaft.
Mounting sleeve (58529005000) ( p. 213)
300165-10
– Push the crankshaft into the bearing seat and take off the special tool.
– Grease the shaft seal rings of the balancer shaft.
– Push the balancer shaft into the bearing seat and take off the special tool.
Align marks and .
– Mount stop disk .
20.3Installing left engine case
300077-11
– Mount the dowels.
– Mount the O-ring .
– Degrease the sealing area. Apply the sealing compound to the left engine case half.
Loctite
®
5910
300075-11
– Put on the left engine case half. If necessary, tap lightly with a rubber mallet and
turn the transmission shafts.
Info
Do not tighten the engine case sections using the screws.
– Install the screws and tighten them diagonally.
Guideline
Screw, engine case M6 10 Nm (7.4 lbf ft)
Info
Install the screw in the oil filter housing with a new copper washer.
