30/ASSEMBLING THE ENGINE 142
300061-10

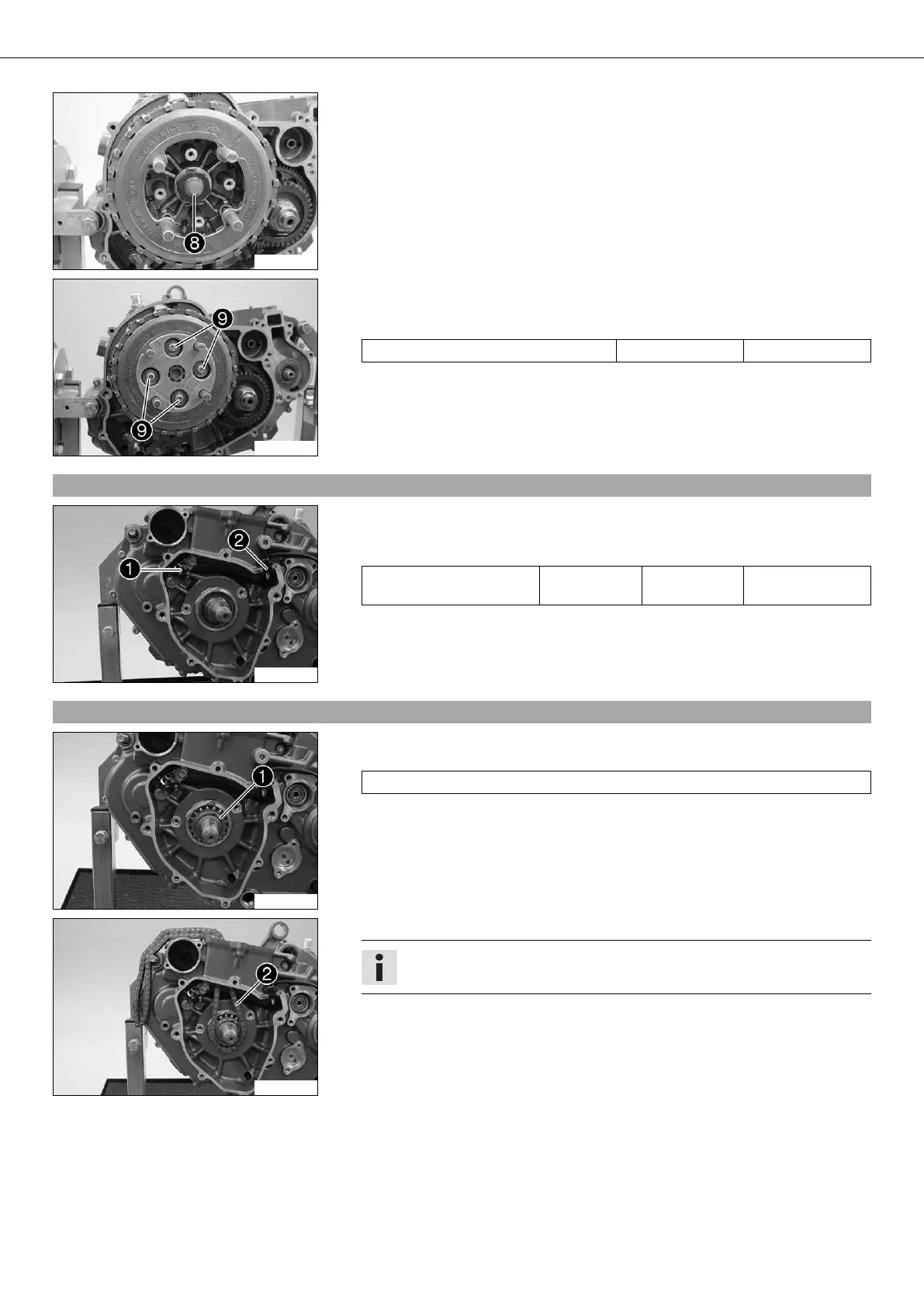

– Insert the pressure piece .
300052-11
– Place the pressure cap on.
– Install and tighten the screws  with the spring retainers and clutch springs.
Guideline
Screw, clutch spring M5 6 Nm (4.4 lbf ft)
– Remove the special tool.
20.11Installing crankshaft position sensor
300151-10
– Position the crankshaft position sensor .
– Mount screws but do not tighten them yet.
Guideline
Screw, ignition pulse gen-
erator
M6 10 Nm
(7.4 lbf ft)
Loctite
®
243â„¢
– Position the cable and push the cable support sleeve  into the engine case.
20.12Installing timing chain and timing chain sprocket
300150-10
– Heat the timing chain sprocket and push it immediately on to the crankshaft.
Guideline
100 °C (212 °F)
– Mount lock ring .
300148-11
– Thread the timing chain  in and lay it over the timing chain sprocket.
Info
If the timing chain is not new, pay attention to the direction of travel.
