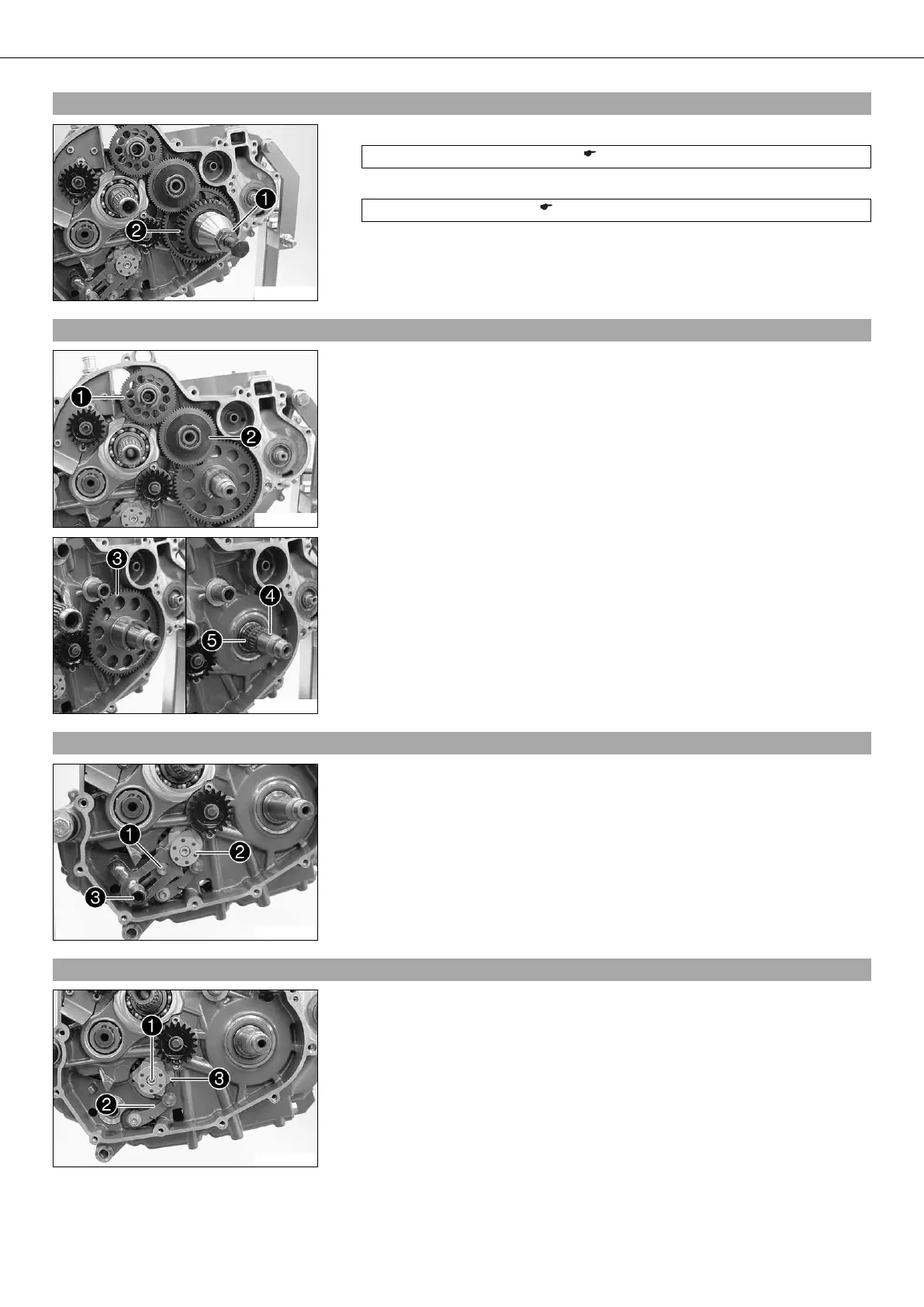

30/DISASSEMBLING THE ENGINE 107
18.24Removing primary gear
300062-10
– Plug the special tool into the crankshaft.
Protection cover (75029090000) ( p. 219)
– Screw the special tool  on to the primary gear .
Extractor (75029021000) ( p. 216)
– Hold it using the special tool and pull off the primary gear by turning the screw in.
– Remove the special tools.
18.25Removing starter drive
300064-10
– Remove the lock ring of the starter idler gear  and the torque limiter .
– Take off the starter idler gear  with the washers.
– Remove the torque limiter  with the washers and needle bearing.
300065-10
– Take off the free-wheel gear .
– Remove the woodruff key  and both needle bearings .
18.26Removing shift shaft
300066-10
– Push sliding plate  away from the shift drum locating . Remove shift shaft 
with the washer.
18.27Removing shift drum locating
300067-10
– Remove screw .
– Press locking lever  away from shift drum locating  and take off the shift drum
locating.
– Release the locking lever.
