KTM 690 ENDURO EU 2008 User Manual

30/ENGINE - WORK ON INDIVIDUAL PARTS 130

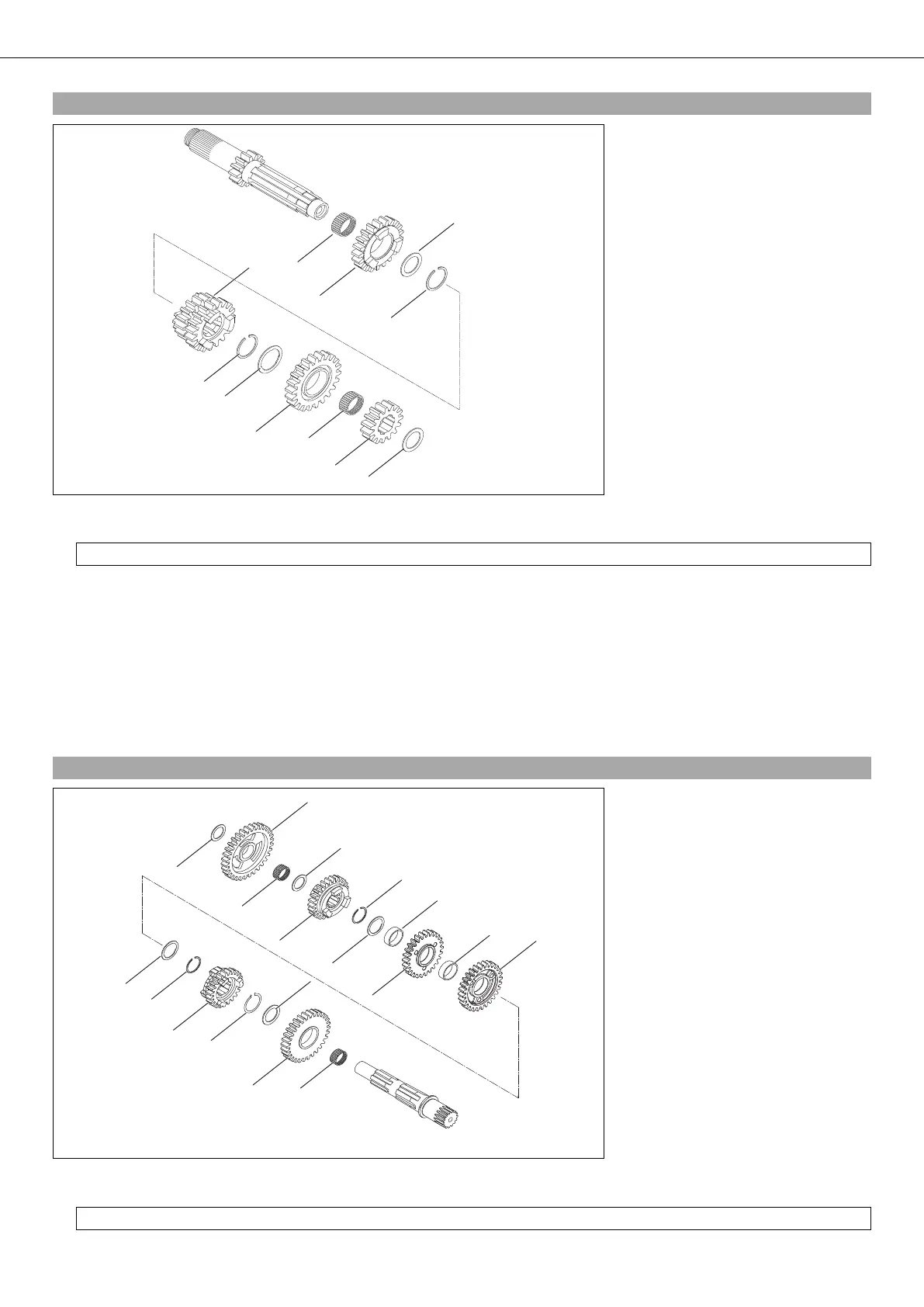

19.34Disassembling the main shaft
0303
11
22
44
33
55
66
77
88
99
bkbk
blbl
300127-03
– Fix the main shaft in the vise with the geared end facing downward.
Guideline
Use soft jaws.
– Remove stop disk  and second-gear fixed gear .
– Remove the sixth-gear idler gear .
– Remove the split needle bearing  and stop disk .
– Remove lock ring .
– Remove the third/fourth-gear sliding gear .
– Remove lock ring .
– Remove stop disk  and the fifth-gear idler gear .
– Remove the split needle bearing .
19.35Dismantling countershaft
22
33
11
44
55
66
77
88
99
bkbk
blbl
bsbs
brbr
bpbp
bobo
bnbn
bmbm
bqbq
300128-01
– Fix the countershaft in the vise with the geared end facing downward.
Guideline
Use soft jaws
