30/ENGINE 93
17.1Removing the engine
– Raise the motorcycle with the work stand. ( p. 9)
– Disconnect the battery. ( p. 72)
– Remove the exhaust manifold. ( p. 51)
– Drain the coolant. ( p. 154)

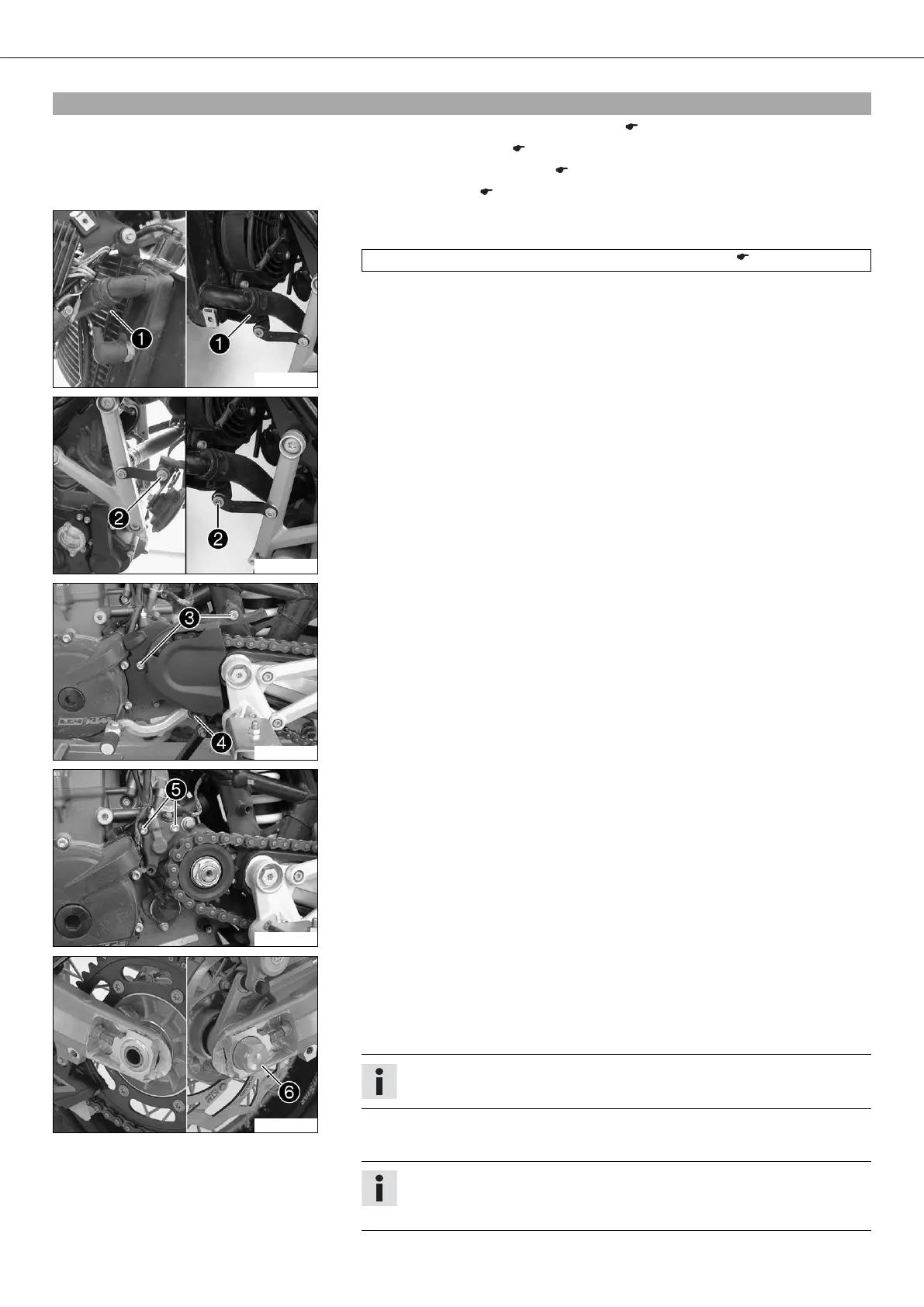

300211-10
– Loosen the spring-loaded band-type clamp  using the special tool. Detach the
radiator hoses.
Pliers for spring-loaded band-type clamp (60029057100) ( p. 214)
300212-10
– Remove screws .
300213-10
– Remove screws .
– Take off the engine sprocket cover.
– Remove screw .
– Take off the shift lever.
300214-10
– Have an assistant operate the rear brake.
– Bend up the lock washer.
– Remove the nut of the engine sprocket with the lock washer.
– Remove screws .
300215-10
– Remove nut . Remove the chain adjuster.
– Pull out the wheel spindle only far enough to allow the rear wheel to be pushed for-
ward.
– Push the rear wheel forward as far as possible and take the chain off the rear
sprocket.
Info
The rear wheel must be fully removed.
– Take off the engine sprocket.
– Take off the clutch slave cylinder and hang it to the side.
Info
Do not bend the clutch line.
Do not operate the clutch when the clutch slave cylinder is removed.
To Next Page
