11/WIRING HARNESS, BATTERY 76
Warning
Fire hazard The electrical system can be overloaded by the use of incorrect
fuses.
– Use only fuses with the prescribed amperage. Never by-pass or repair
fuses.
– Replace with a spare fuse of the right rating.
Fuse (75011088010) ( p. 178)
Fuse (75011088015) ( p. 178)
Tip
Put a new spare fuse in the fuse box for future use if needed.
–
Checking the function of power consumers.
– Close the fuse box cover.
– Mount the seat. ( p. 58)

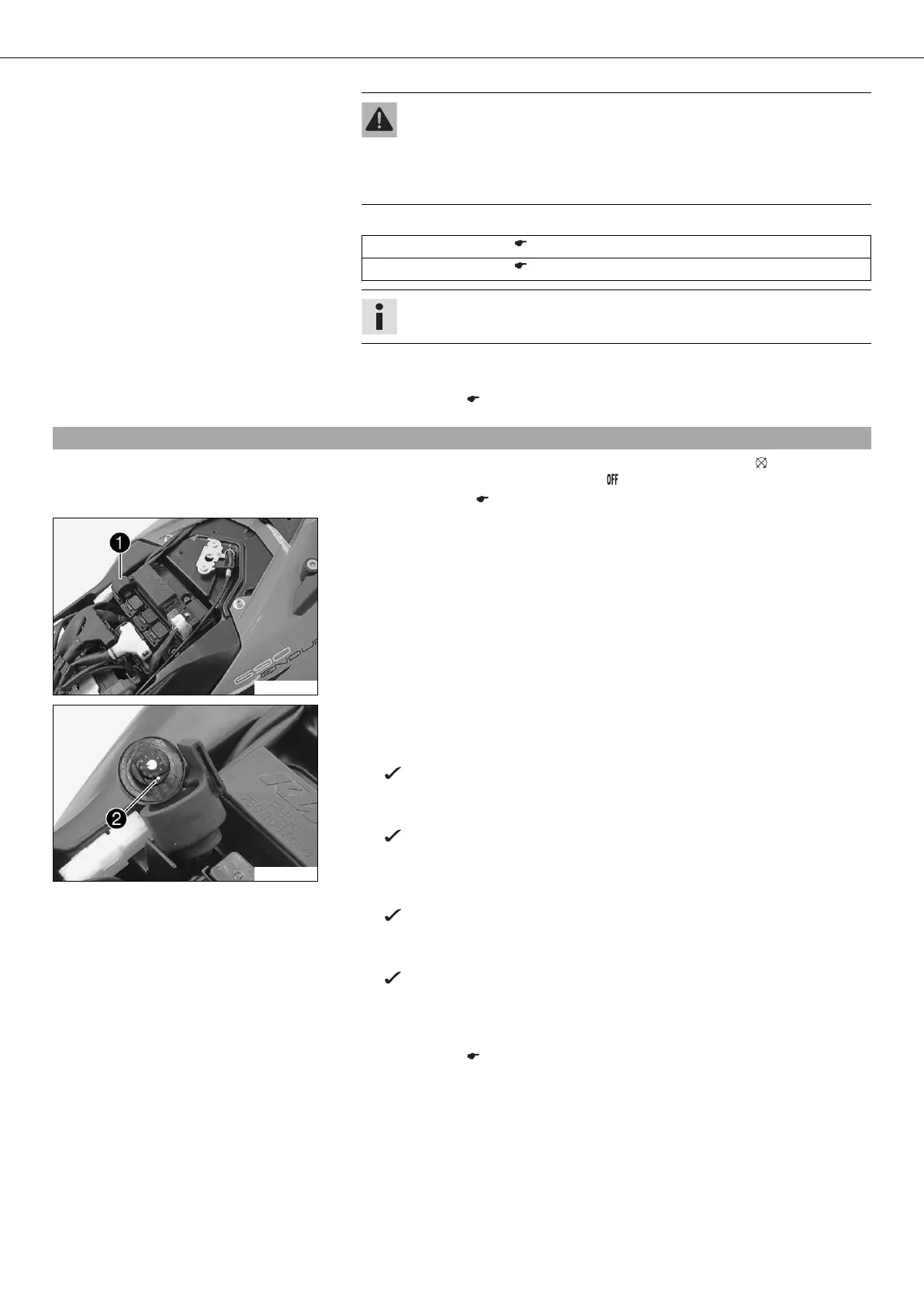

14.9Adjusting the engine characteristic
– Switch off the ignition by turning the ignition key in the position
(690 Enduro EU, 690 Enduro AUS/UK) (690 Enduro USA).
– Remove the seat. ( p. 58)
100237-10
– Pull the Map‑Select switch and holder  upward off of the retaining bracket.
– Pull the Map‑Select switch out of the holder.
100238-10
– Turn the adjusting wheel until the desired digit is next to marking .
Set the Map‑Select switch to Soft.
– Set the adjusting wheel to position 1.
Soft – reduced homologated peak performance for better driveability.
Set the Map‑Select switch to Advanced.
– Set the adjusting wheel to position 2.
Advanced – homologated performance with extremely direct responsive-
ness.
Set the Map‑Select switch to Standard.
– Set the adjusting wheel to position 3, 4, 5, 6, 7, 8 or 9.
Standard – homologated performance with balanced responsiveness.
Set the Map‑Select switch to poor fuel quality.
– Set the adjusting wheel to position 0.
Poor fuel quality – homologated performance is reduced in accordance with
the fuel quality, use for no more than 1 tank of fuel
– Position the Map‑Select switch in the holder.
– Slide the Map‑Select switch with the holder downward onto the retaining bracket.
– Mount the seat. ( p. 58)
