14/LIGHT SYSTEM, INSTRUMENTS 98

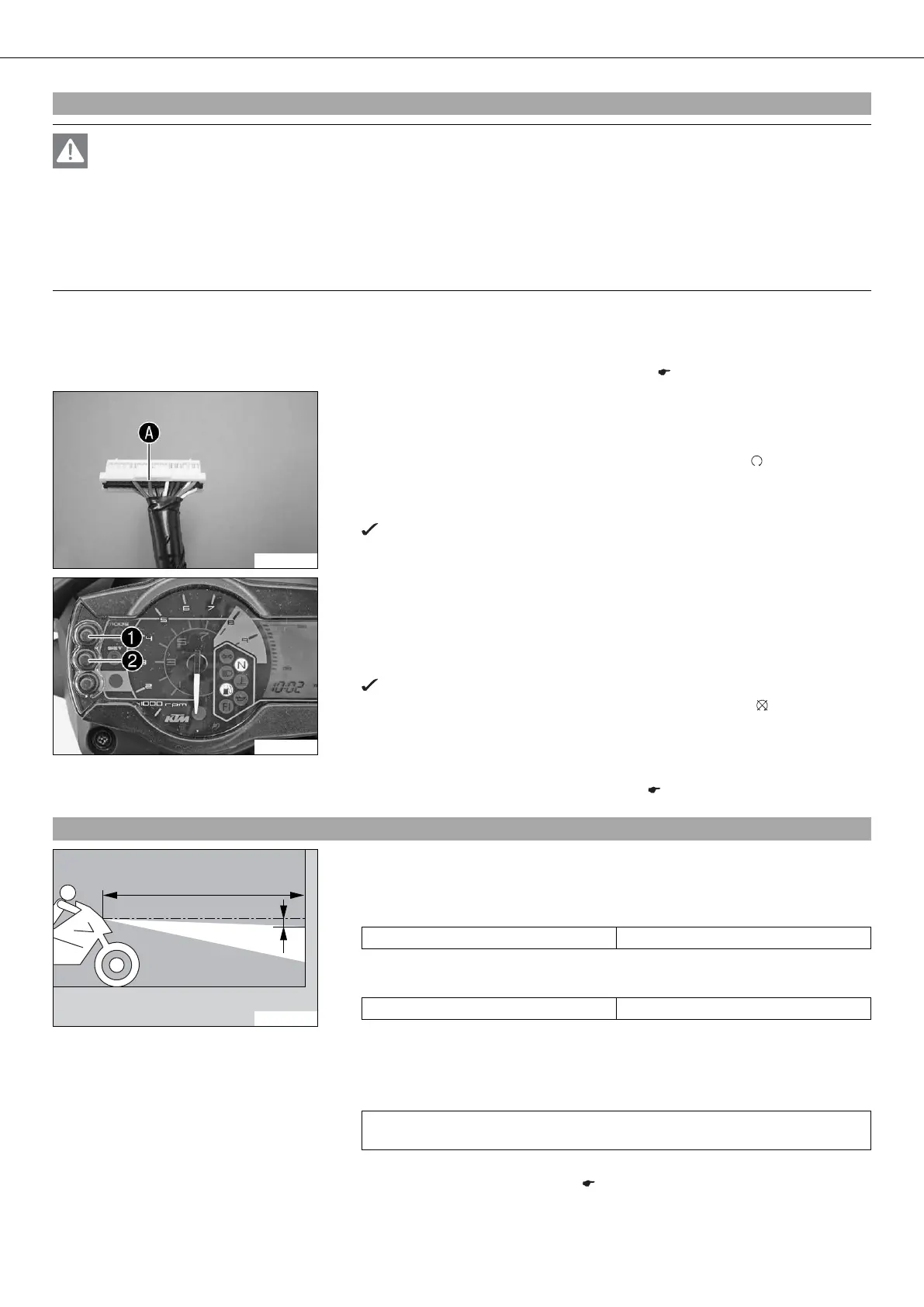

16.5Combination instrument - setting the wheel circumference (690 Enduro)
Danger
Voiding of the government approval for road use and the insurance coverage The vehicle is only authorized for operation on pub-
lic roads in the homologated version.
– If the vehicle is modified in any way, it may only be used on designated tracks away from public roads. Advise the vehicle
owner and rider of this.
– If you undertake any modifications, please insist on receiving a signed workshop order from your customer in which you
inform the customer in writing that these modifications are performed at the customer's own risk and that the vehicle will
no longer be approved for use on public roads once modified.
Condition
The motorcycle is stationary.
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 99)
302064-10
– Unplug connector ED from the combination instrument.
– Unlock pin 18 and remove it from connector ED.
– Plug connector ED into the combination instrument.
– Switch on the ignition by turning the ignition key to position ON .
– Press the MODE button repeatedly until the TRIP 1 display mode is active.
– Press and hold the MODE button for 10 seconds.
The wheel circumference is displayed in millimeters.
302053-10
Increasing the wheel circumference
– Press the MODE button .
Reducing the wheel circumference
– Press the SET button .
– Keep the MODE button and the SET button pressed simultaneously.
The settings are saved and the Setup menu is closed.
– Switch off the ignition by turning the ignition key to position OFF .
– Unplug connector ED from the combination instrument.
– Connect pin 18 to connector ED.
– Plug connector ED into the combination instrument.
– Install the headlight mask with the headlight. ( p. 100)
16.6Checking the headlight setting
400726-10
– Stand the vehicle upright on a horizontal surface in front of a light wall and make a
mark at the height of the center of the low beam headlight.
– Make another mark at a distance under the first mark.
Guideline
Distance 5 cm (2 in)
– Position the vehicle vertically at a distance in front of the wall.
Guideline
Distance 5 m (16 ft)
– The rider, with luggage and a passenger if applicable, now sits down on the motor-
cycle.
– Switch on the low beam.
– Check the headlight setting.
For a ready-to-operate motorcycle with a rider, and with luggage and a passenger
if applicable, the light-dark boundary must lie exactly on the lower mark.
» If the boundary between light and dark does not meet specifications:
– Adjust the headlight range. ( p. 99)
