30/DISASSEMBLING THE ENGINE 120
300076-10

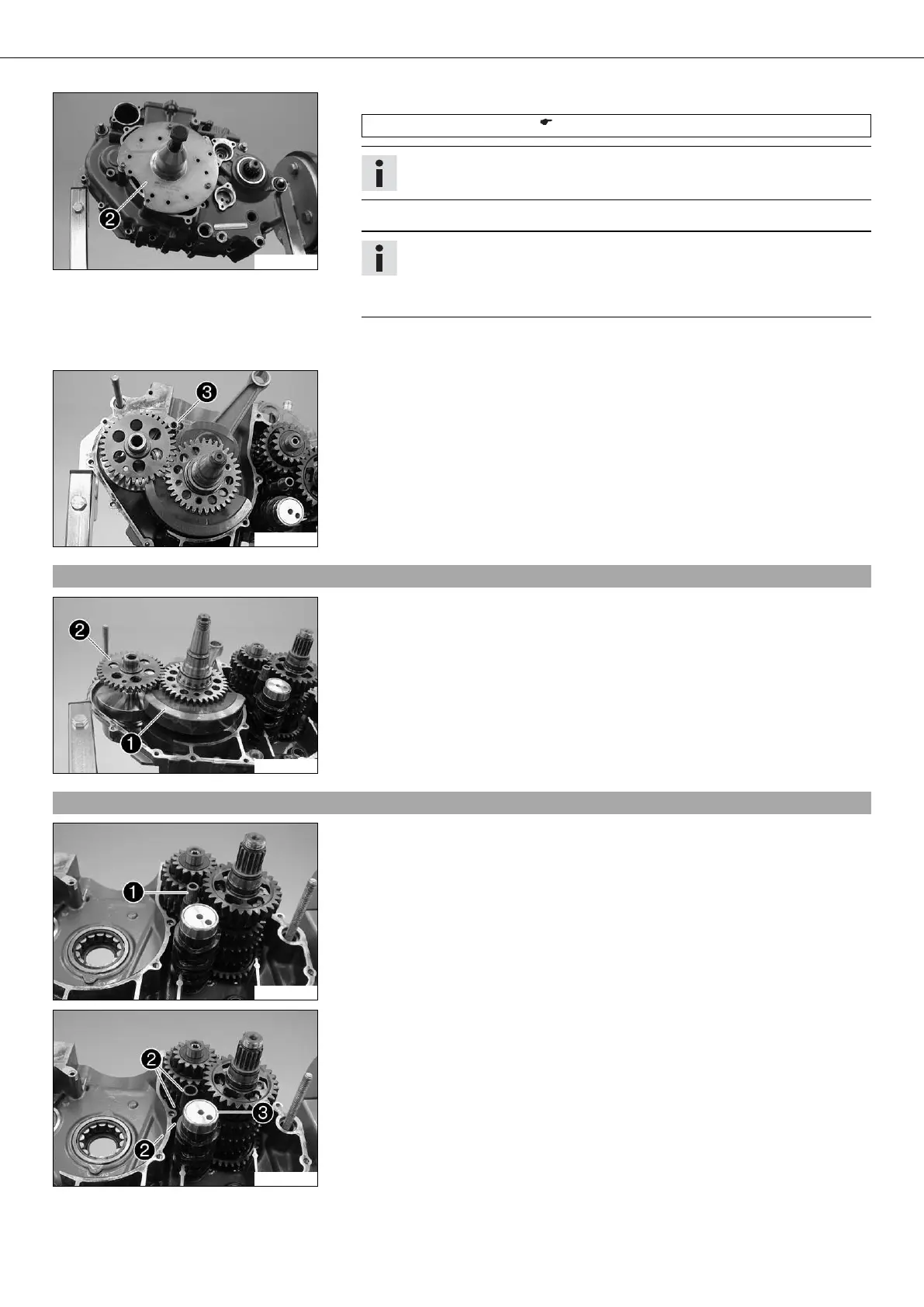

– Install the special tool with suitable screws.
Extractor (75029048000) ( p. 251)
Info
Use the 750 drill hole.
– Pull off the section of the engine case.
Info
Do not tension the section of the engine case.
The balancer shaft and the main shaft have a stop disk, these usually stick
to the bearing.
– Take off the left section of the engine case.
– Remove the special tool.
300077-10
– Remove dowels.
– Remove O-ring .
18.31Removing crankshaft and balancer shaft
300078-10
– Remove the crankshaft and the balancer shaft .
18.32Removing transmission shafts
300079-10
– Remove the shift rail .
300080-10
– Swing shift forks to one side.
– Remove shift drum .
