30/ENGINE - WORK ON INDIVIDUAL PARTS 141

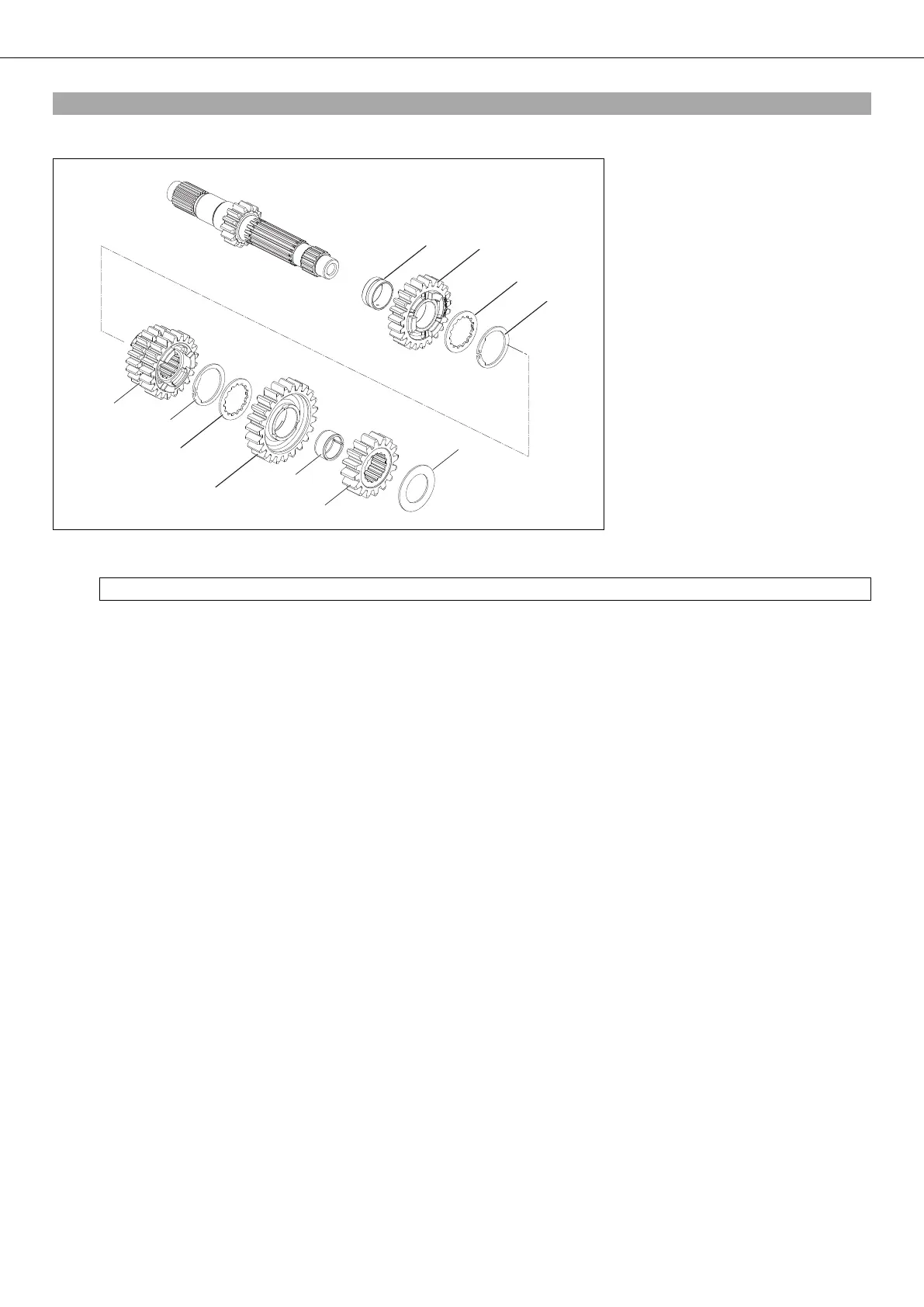

19.34Disassembling the main shaft
(690 Enduro EU)
33
55
77
88
99
bkbk
blbl
11
44
66
22
301980-01
– Fix the main shaft in the vise with the geared end facing downward.
Guideline
Use soft jaws.
– Remove stop disk  and second-gear fixed gear .
– Remove the sixth-gear idler gear .
– Remove the split needle bearing  and stop disk .
– Remove lock ring .
– Remove the third/fourth-gear sliding gear .
– Remove lock ring .
– Remove stop disk  and the fifth-gear idler gear .
– Remove the split needle bearing .
