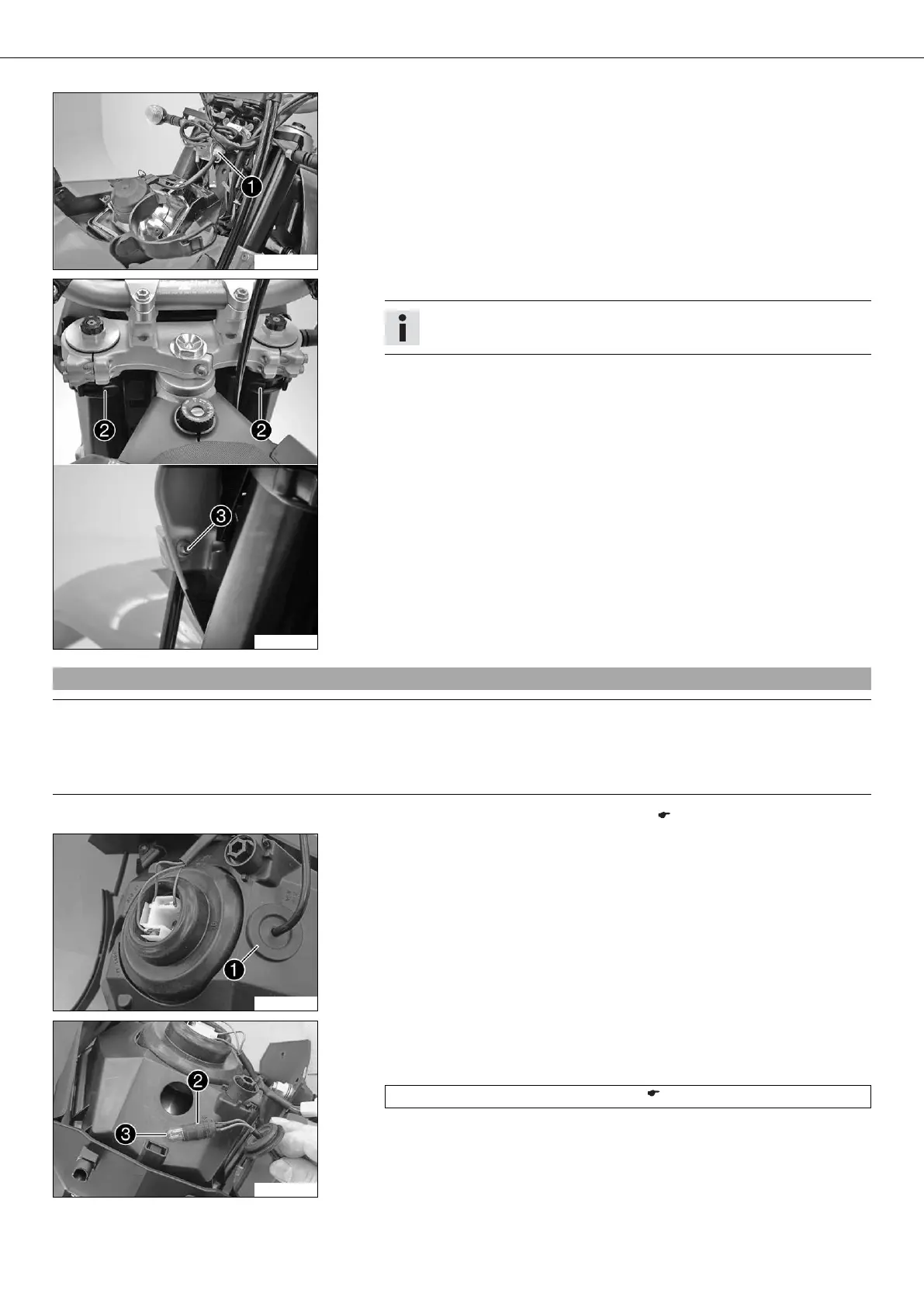

14/LIGHT SYSTEM, INSTRUMENTS 101
800102-11
(690 Enduro R)
– Connect the electrical plug-in connection .
800097-11
– Position the headlight mask and fix it with rubber band .
Info
Make sure that the holding lugs engage in the fender.
– Position the brake line and wiring harness. Position the clamp, and mount and
tighten screw .
16.10Changing the parking light bulb
Note
Damage to reflector Reduced luminance.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
– Remove the headlight mask with the headlight. ( p. 99)
600610-12
(690 Enduro)
– Remove rubber cap .
600612-10
– Pull bulb socket out of the reflector.
– Pull parking light bulb out of the bulb socket.
– Insert a new parking light bulb in the bulb socket.
Parking light (W5W / socket W2.1x9.5d) ( p. 192)
– Insert the bulb socket in the reflector.
– Insert the rubber cap.
