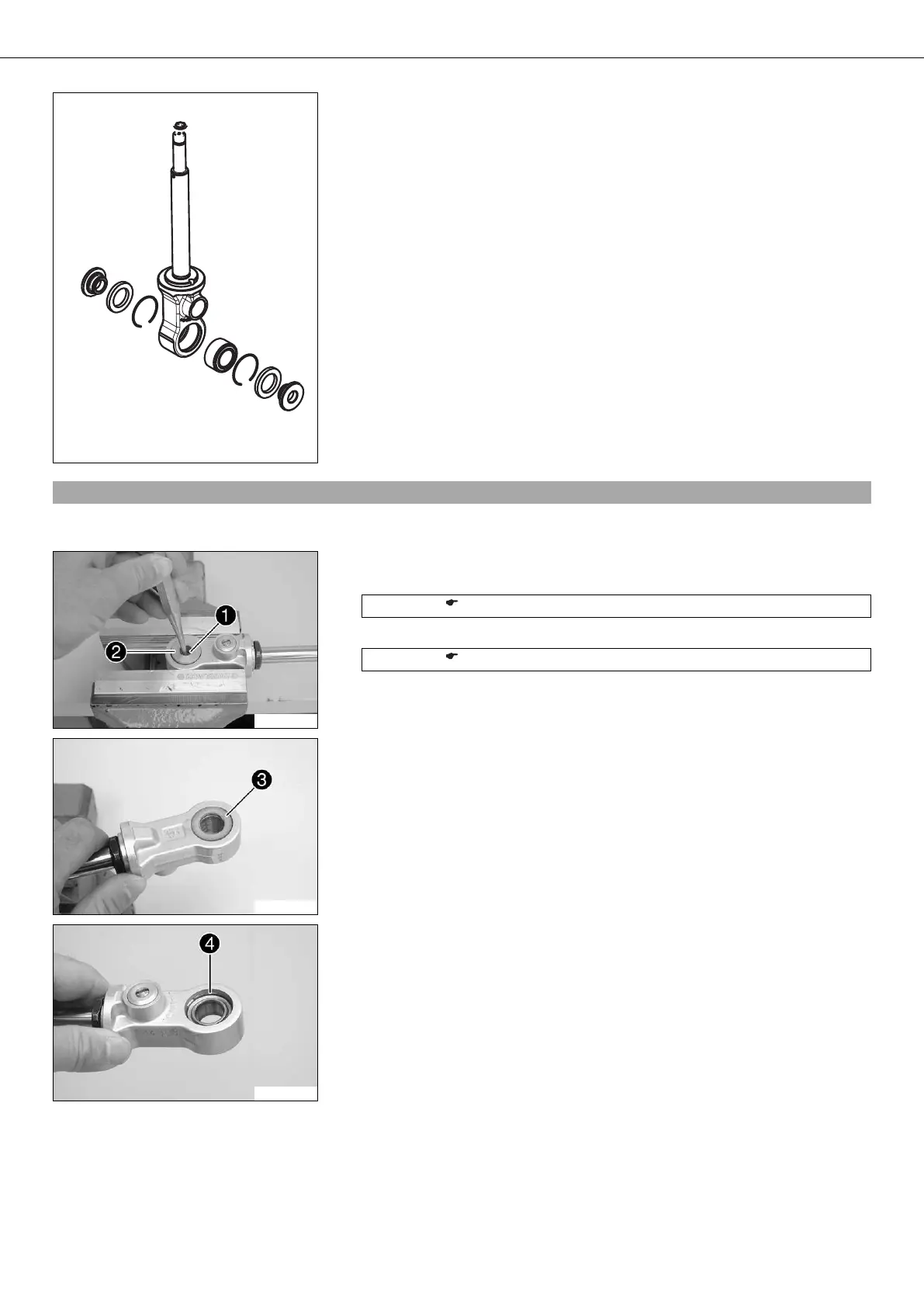

04/SHOCK ABSORBER, SWINGARM 50
300460-01
Check the heim joint for damage and wear.
» If there is damage or wear:
Change the heim joint.
8.16Removing the heim joint
Condition
The shock absorber has been removed.
200577-10
Clamp the shock absorber in the vise using soft jaws for protection.
Remove collar bushing of the heim joint.
Pin (T120) ( p. 254)
Turn over the shock absorber and remove collar bushing of the heim joint.
Pin (T120) ( p. 254)
200578-10
Remove seal rings on both sides.
200579-10
Remove lock rings on both sides.
