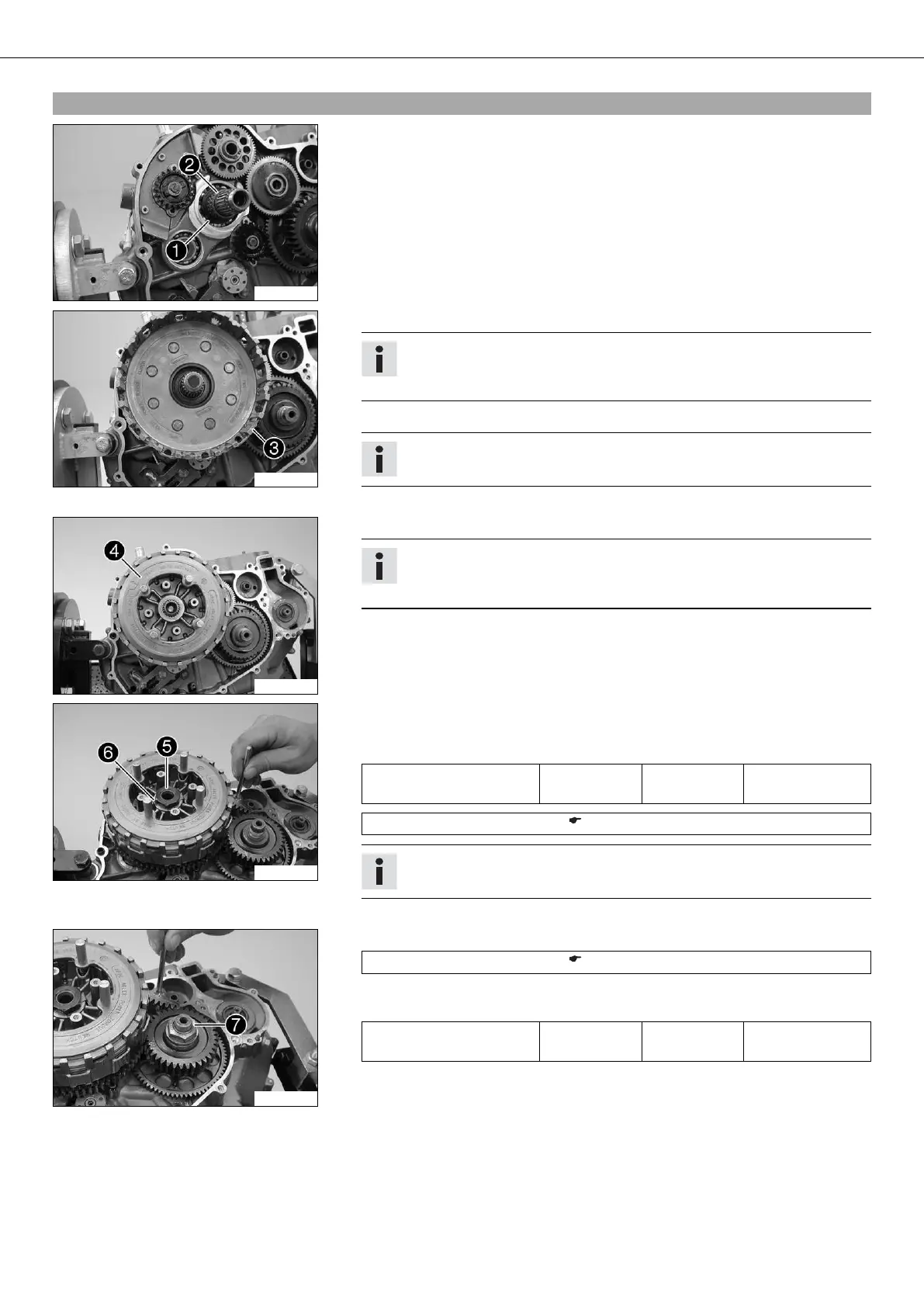

30/ASSEMBLING THE ENGINE 154
20.10Installing clutch cage
300057-10
Install supporting plate and needle bearing .
300058-10
Install the clutch cage .
Info
Turn the clutch cage and oil pump gear wheels backwards and forwards
slightly to help them mesh more easily.
Mount the half washers with the sharp edge facing outward.
Info
Grease the half washers to ease assembly.
Position the stepped washer with the cut-out towards the half washers.
302123-10
Insert the clutch package in the clutch cage.
Info
If necessary, turn the main shaft a little to ease access.
Make sure that the upper clutch disc is offset by one notch.
302121-10
Position a new lock washer and install the nut .
Lock the clutch cage and primary gear using the special tool, and tighten the nut.
Guideline
Nut, inner clutch hub M20x1.5 100 Nm
(73.8 lbf ft)
Loctite
®
243™
Gear segment (75029081000) ( p. 252)
Info
Make sure that the crankshaft is not blocked.
Secure the nut with the lock washer .
302122-10
Lock the clutch cage and primary gear using the special tool.
Gear segment (75029081000) ( p. 252)
Mount and tighten the nut .
Guideline
Nut, primary gear M20LHx1.5 90 Nm
(66.4 lbf ft)
Loctite
®
243™
