30/DISASSEMBLING THE ENGINE 116
300046-10

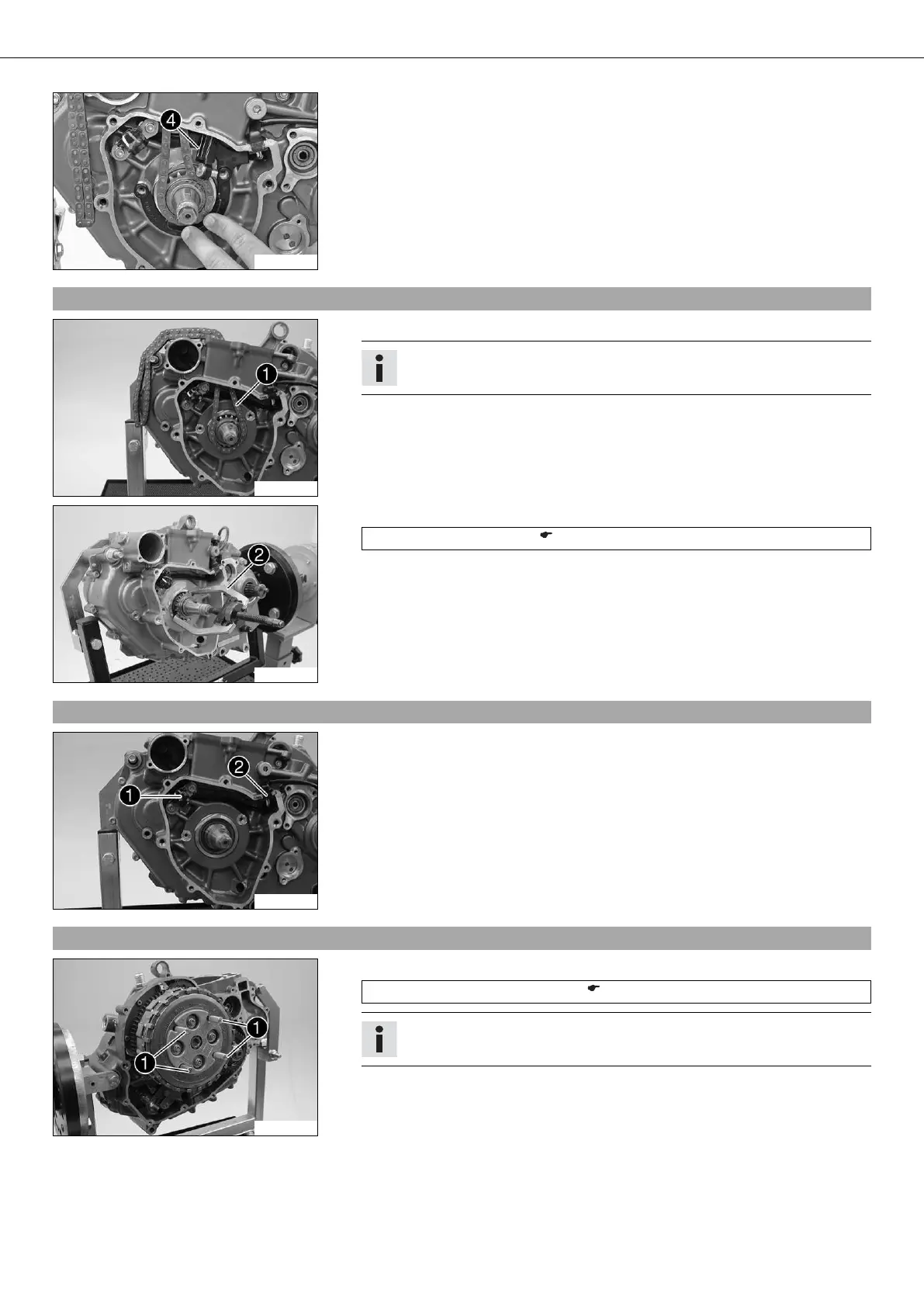

– Hold the timing chain securing guide tight and pull the timing chain tensioning
rail out of the timing chain securing guide.
– Take out the timing chain tensioning rail upwards through the chain shaft.
– Remove the timing chain securing guide .
18.21Removing timing chain and timing chain sprocket
300148-10
– Unthread the timing chain.
Info
Mark the direction of travel.
– Take off the lock ring .
300149-10
– Pull of the timing chain sprocket with the special tool .
Extractor (59029033000) ( p. 247)
18.22Removing crankshaft position sensor
300151-10
– Remove the screws of crankshaft position sensor .
– Pull cable support sleeve out of the engine case. Take off the crankshaft posi-
tion sensor.
18.23Removing clutch cage
300051-10
– Compress the antihopping clutch with the special tool .
Assembly screws (75029033000) ( p. 250)
Info
Apply the special tool with the hand only, do not use another tool.
