38/LUBRICATION SYSTEM 170

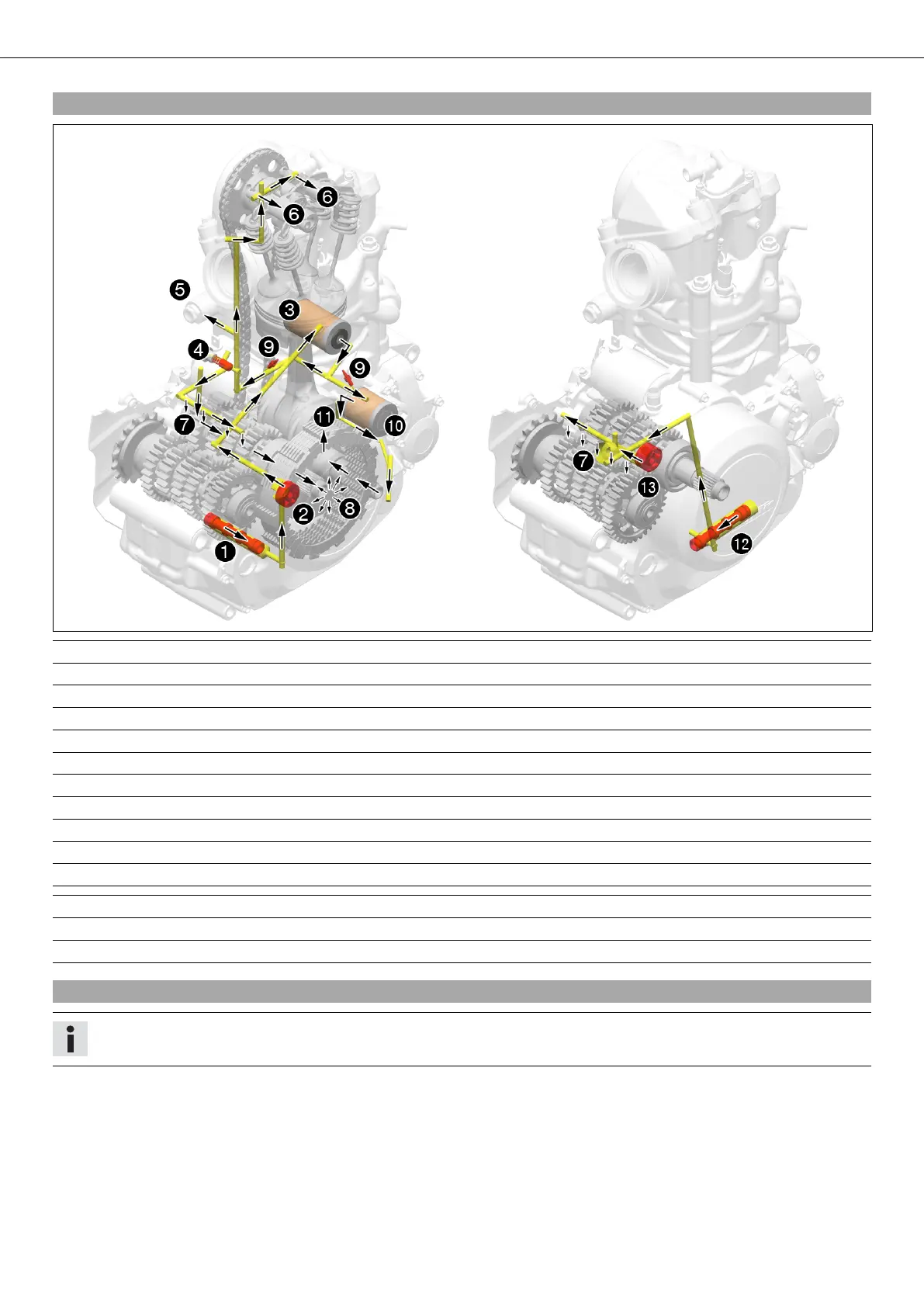

23.1Oil circuit
400500-60
1 Oil screen
2 Force pump
3 Oil filter
4 Oil pressure regulator valve
5 Timing chain tensioner
6 Rocker arm shaft
7 Transmission
8 Clutch
9 Oil jet for piston cooling
10 Oil filter
11 Crankshaft
12 Oil screen
13 Suction pump
7 Transmission
23.2Checking the engine oil level
Info
The engine oil level must be checked when the engine is warm.
Condition
The engine is at operating temperature.
– Stand the motorcycle upright on a horizontal surface.
