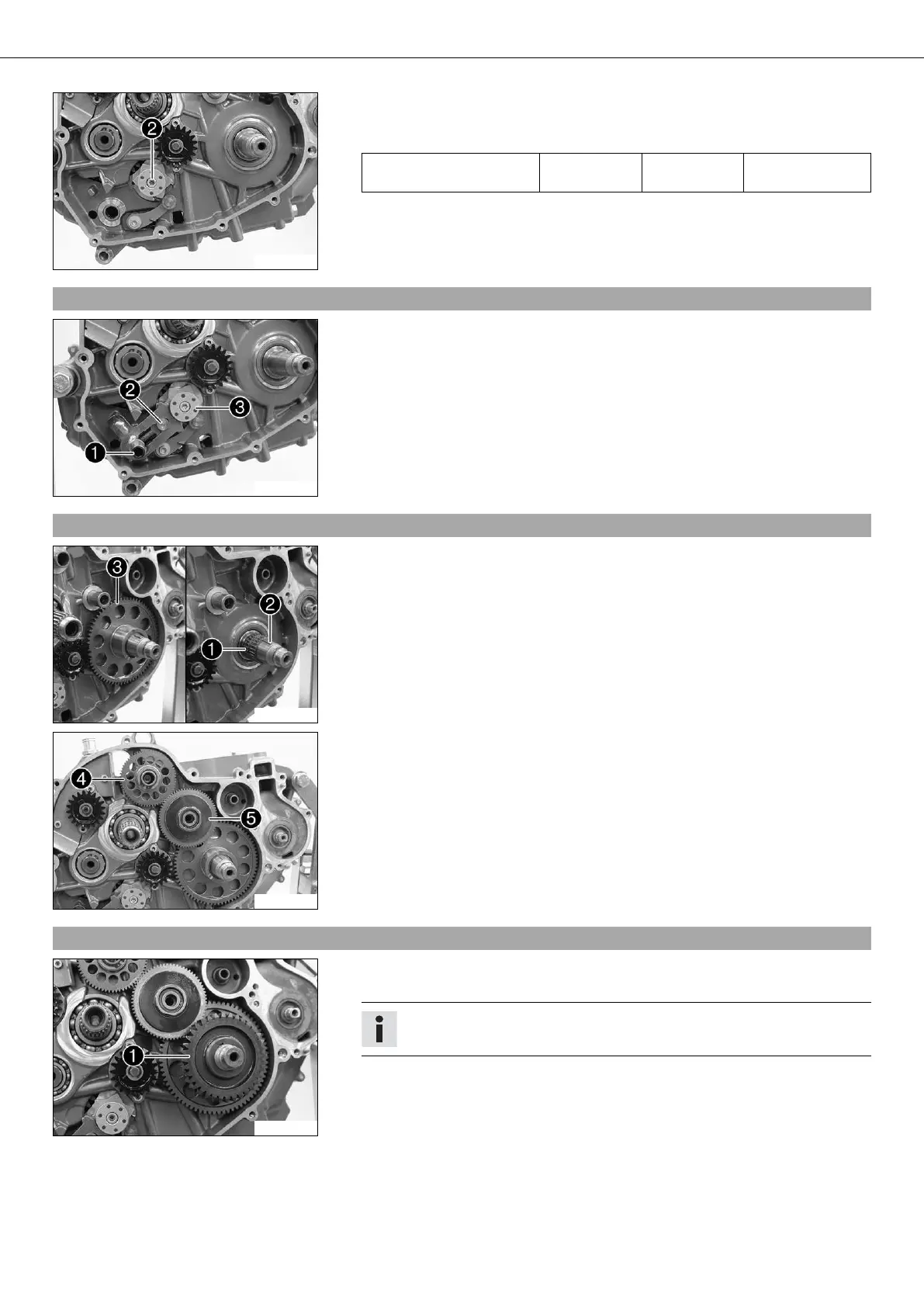

30/ASSEMBLING THE ENGINE 153
300067-11
– Release the locking lever.
– Mount and tighten screw .
Guideline
Screw, shift drum locating M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
20.7Installing shift shaft
300066-11
– Slide shift shaft with the washer into the bearing seat.
– Push sliding plate away from the shift drum locating . Insert the shift shaft all
the way.
– Let the sliding plate engage in the shift drum locating.
– Shift through the transmission.
20.8Installing starter drive
300065-11
– Install the two needle bearings and the woodruff key .
– Push on the freewheel gear .
300064-11
– Push on the starter idler gear with washer. Mount lock ring.
– Push on the needle bearing and torque limiter with washer. Mount lock ring.
20.9Installing primary gear
300063-10
– Ensure that the spring washer is seated properly.
– Mount primary gear .
Info
Turn the freewheel gear backwards and forwards to ease meshing.
