06/AIR FILTER 63

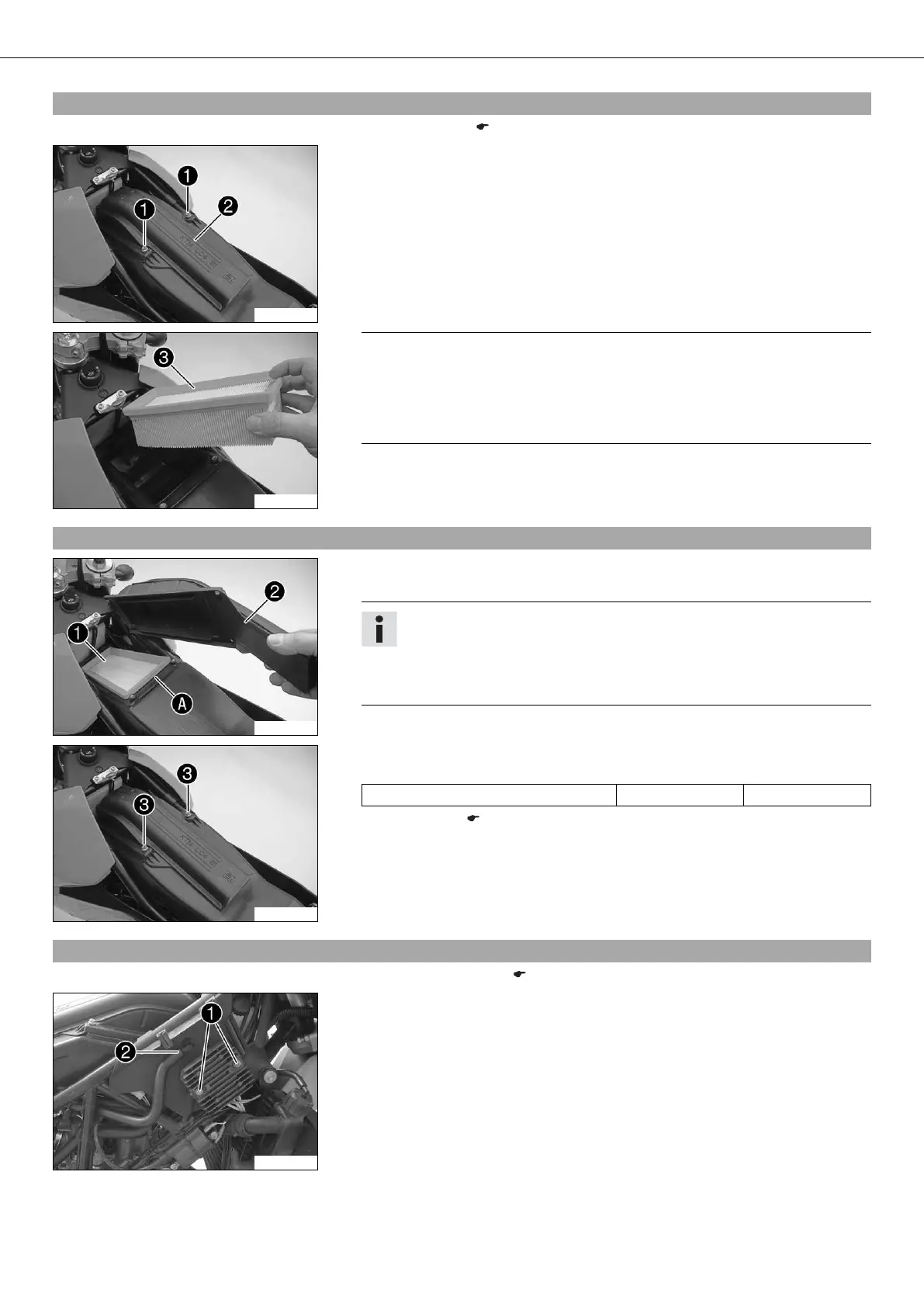

10.1Removing the air filter
– Remove the seat. ( p. 66)
100285-10
– Remove screws . Remove filter box top .
100286-10
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the
engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the
engine and result in increased wear.
– Remove air filter .
10.2Installing the air filter
100287-10
– Clean the air filter box.
– Mount air filter .
Info
The air filter must lie flush against the air filter box along the entire sealing
surface .
If the air filter is not correctly mounted, dust and dirt can penetrate into the
engine and can cause damage.
– Hook filter box top into the front of the air filter box and swing down.
100285-11
– Mount and tighten screws .
Guideline
Screw, air filter box top M6 2 Nm (1.5 lbf ft)
– Mount the seat. ( p. 66)
10.3Removing the air filter box
– Take off the side cover. ( p. 67)
300202-10
– Remove screws .
– Take off the voltage regulator and hang it to the side in a de-energized state.
– Detach and expose hose .
