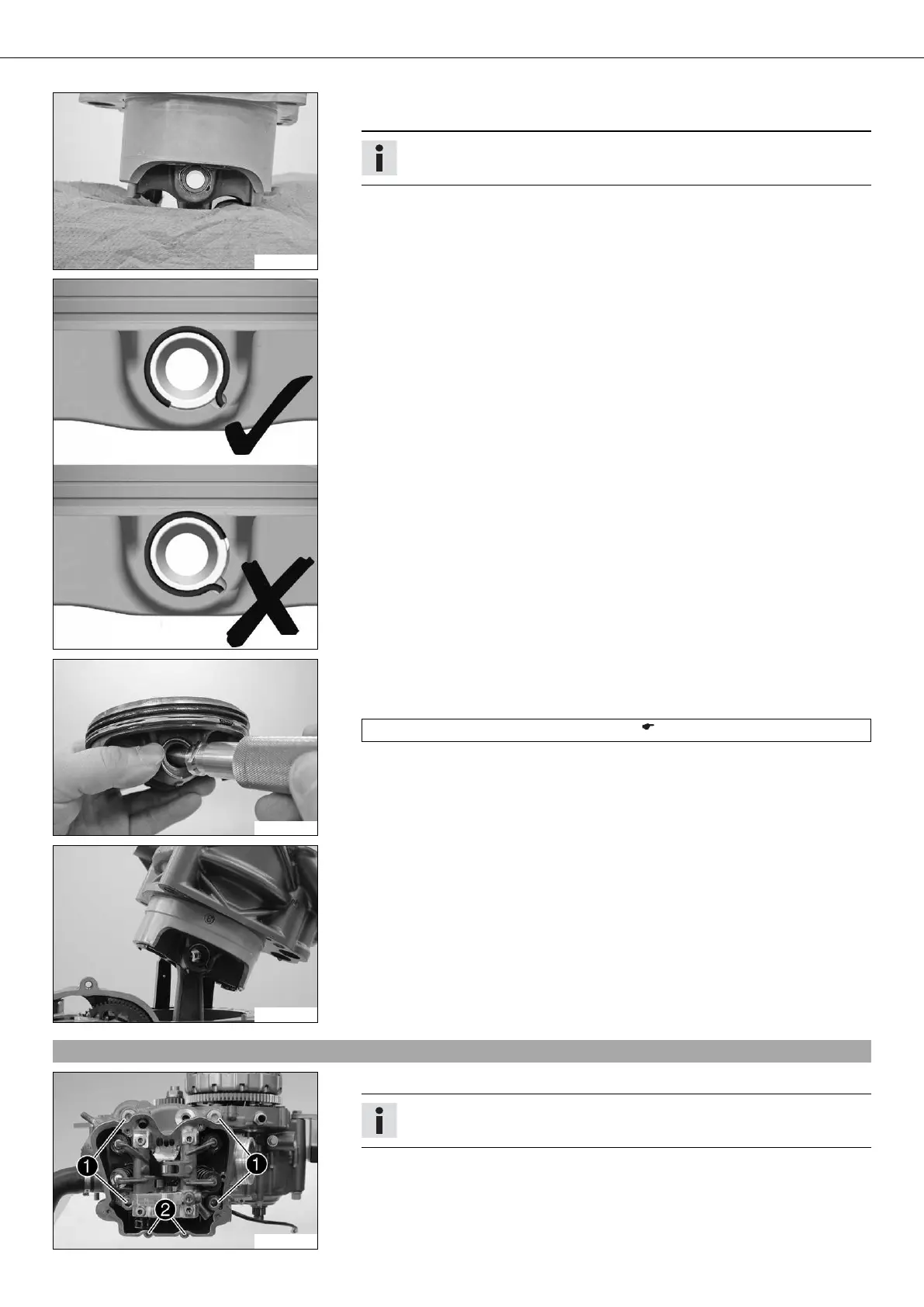

30/ASSEMBLING THE ENGINE 158
300036-10
Cover the engine case opening with a cloth. Thread the timing chain through the
chain shaft. Mount the piston pin.
Info
For clarity, the following steps are illustrated using a disassembled piston.
400366-10
Position the piston pin retainer.
300038-10
Insert the special tool and firmly press it toward the piston.
Turn the special tool counterclockwise, thereby pressing the piston pin retainer into
the groove.
Piston pin lock ring insert (75029035000) ( p. 250)
Make sure that the piston pin retainer is seated correctly on both sides.
300039-10
Remove the cloth.
Keep the timing chain tensioned. Push the cylinder down carefully and let the
grooved pins engage.
20.18Installing cylinder head
300029-11
Put on the cylinder head gasket.
Info
Make sure the grooved pins are seated correctly.
Mount the cylinder head. Mount and tighten cylinder head screw with the wash-
ers.
