14/LIGHT SYSTEM, INSTRUMENTS 100
800097-10
(690 Enduro R)

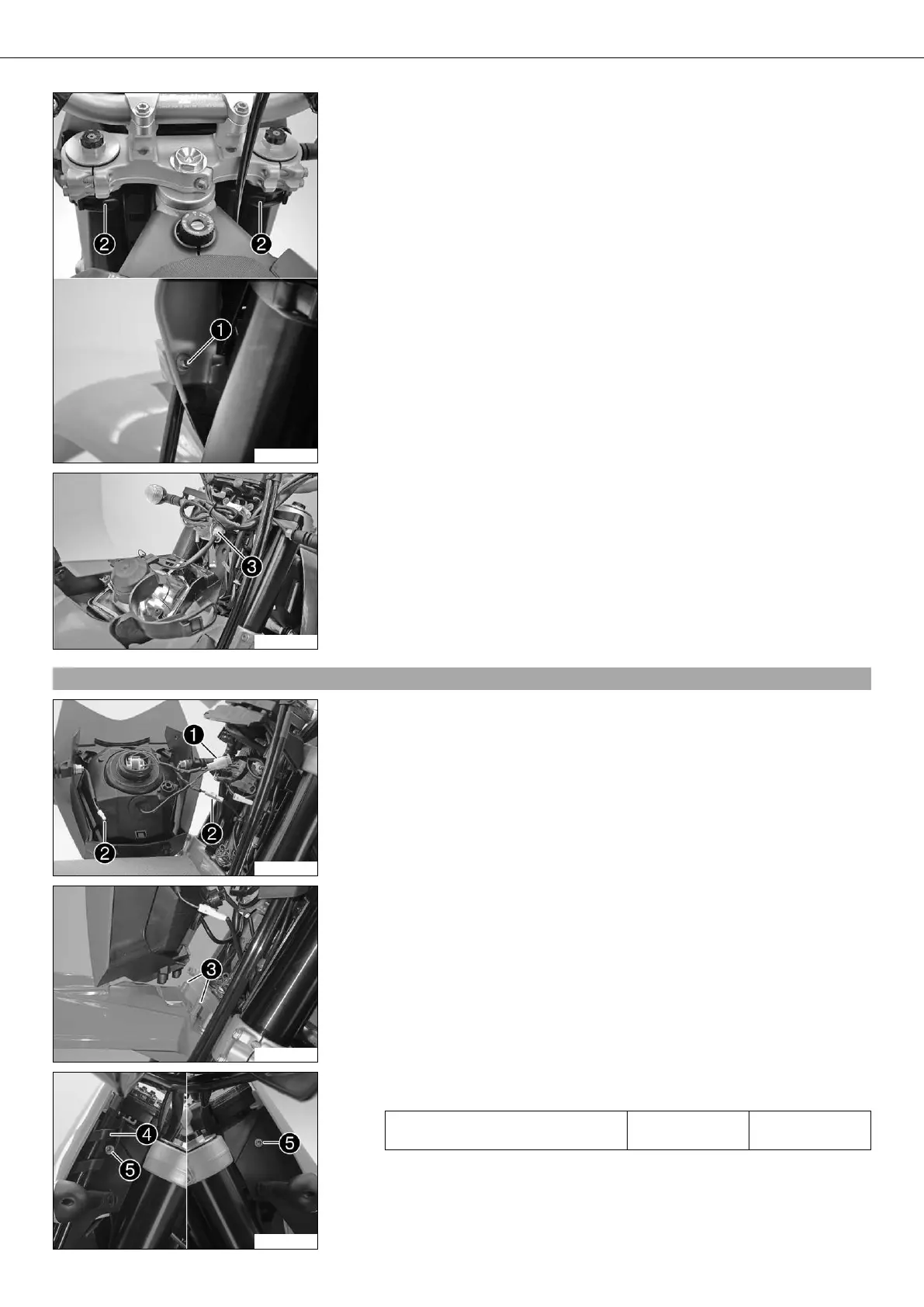

– Remove screw and take off the clamp.
– Release rubber band . Slide the headlight mask upward and tilt it forward.
800102-10
– Disconnect the electrical plug-in connection and remove the headlight mask
with the headlight.
16.9Installing the headlight mask with the headlight
100294-11
(690 Enduro)
– Connect the connectors of headlight and turn signal lights .
– Check lighting function.
100295-10
– Remove the cloth from the fender, attach the headlight mask to points on
the fender and swing it up to the steering head.
100296-12
– Position brake-hose guide . Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm
(7.4 lbf ft)
