30/ENGINE - WORK ON INDIVIDUAL PARTS 146
99
77
55
44
33
22
11
blbl
bkbk
66
88
301980-02

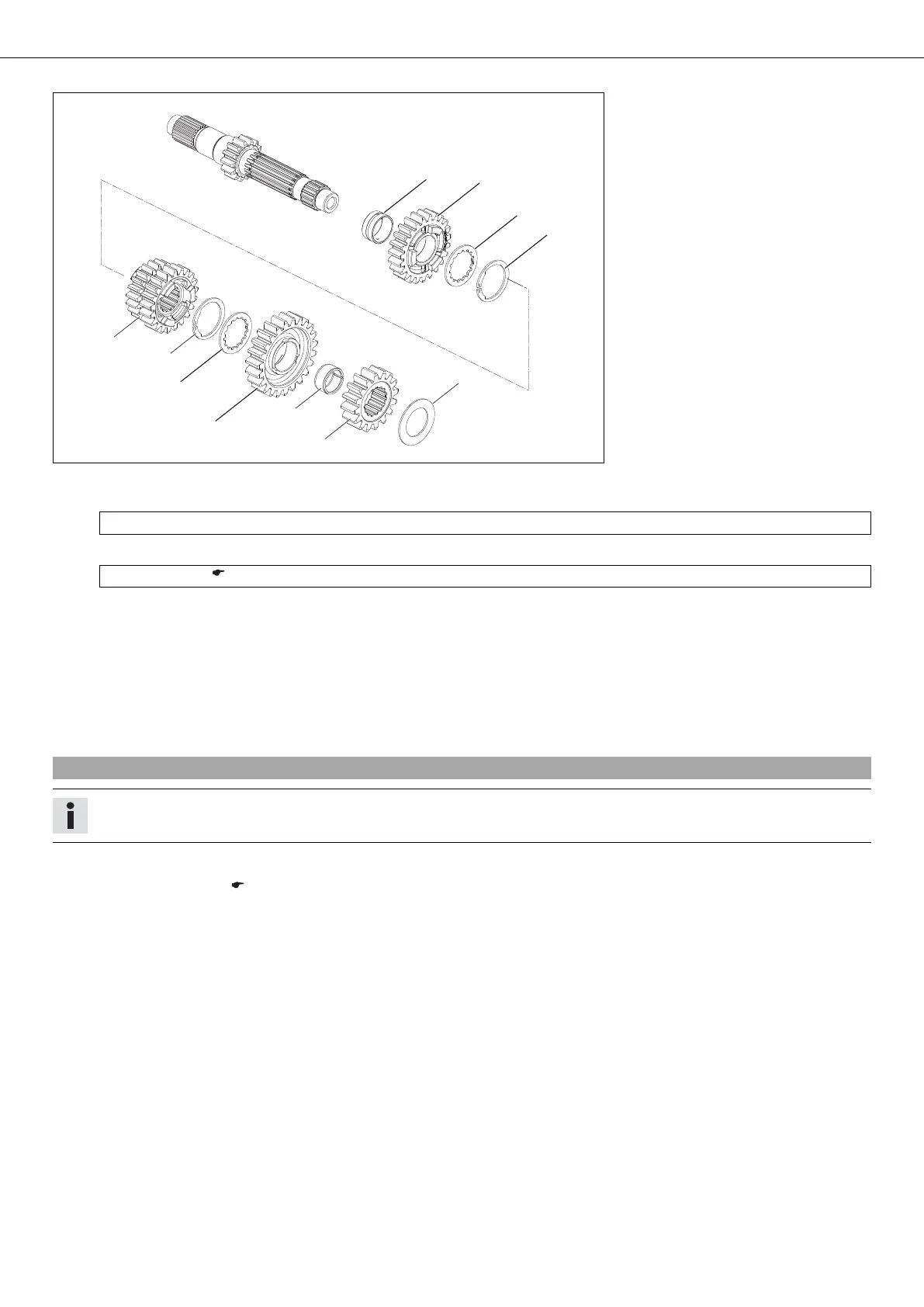

– Fix the main shaft in the vise with the geared end facing downward.
Guideline
Use soft jaws
– Lubricate and mount bearing bush .
Long-life grease ( p. 244)
– Put on the fifth-gear idler gear with the shifting claws facing upward.
– Mount stop disk and lock ring .
– Push on the third/fourth-gear sliding gear with the small gear wheel pointing downward, and mount lock ring .
– Push on stop disk and split needle bearing .
– Put on the sixth-gear idler gear with the shifting claws facing downward.
– Mount the second-gear fixed gear with the collar facing downward and mount stop disk .
– Finally, check all gear wheels for smooth operation.
19.38Assembling countershaft
Info
Use new lock rings in every repair job.
– Oil all parts carefully before assembling.
– Check the transmission. ( p. 143)
