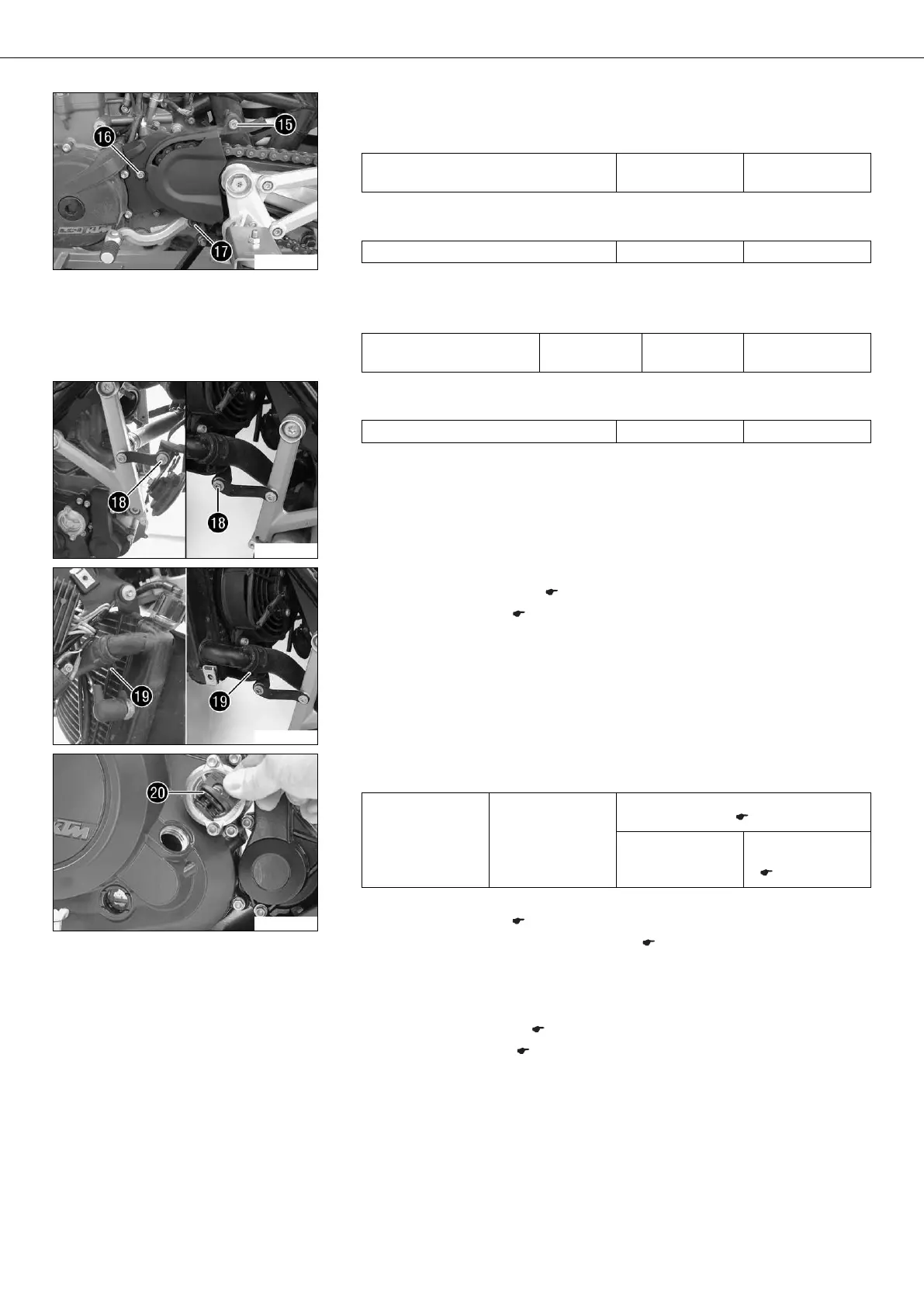

30/ENGINE 109
300213-11
– Position the rear sprocket cover.
– Mount and tighten screw .
Guideline
Remaining screws, chassis M8 25 Nm
(18.4 lbf ft)
– Mount and tighten screw .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the shift lever.
– Mount and tighten screw .
Guideline
Screw, shift lever M6 10 Nm
(7.4 lbf ft)
Loctite
®
222
300212-11
– Mount and tighten screws .
Guideline
Screw, radiator bracket M6 5 Nm (3.7 lbf ft)
300211-11
– Position the radiator hoses. Install the spring-loaded band-type clamps .
– Install the exhaust manifold. ( p. 59)
– Disconnect the battery. ( p. 82)
300802-10
– Remove the oil filler plug with O-ring  from the clutch cover and fill up with
engine oil.
Engine oil 1.70 l (1.8 qt.) Engine oil (SAE 10W/60)
(00062010035) ( p. 242)
Alternative engine
oil
Engine oil
(SAE 10W/50)
( p. 242)
– Install and tighten the oil filler plug with O-ring .
– Fill the cooling system. ( p. 167)
– Remove the motorcycle from the work stand. ( p. 10)
– Take a short test ride.
– Read out the fault memory using the KTM diagnostics tool.
– Check the engine for leakage.
– Check the engine oil level. ( p. 170)
– Check the coolant level. ( p. 169)
