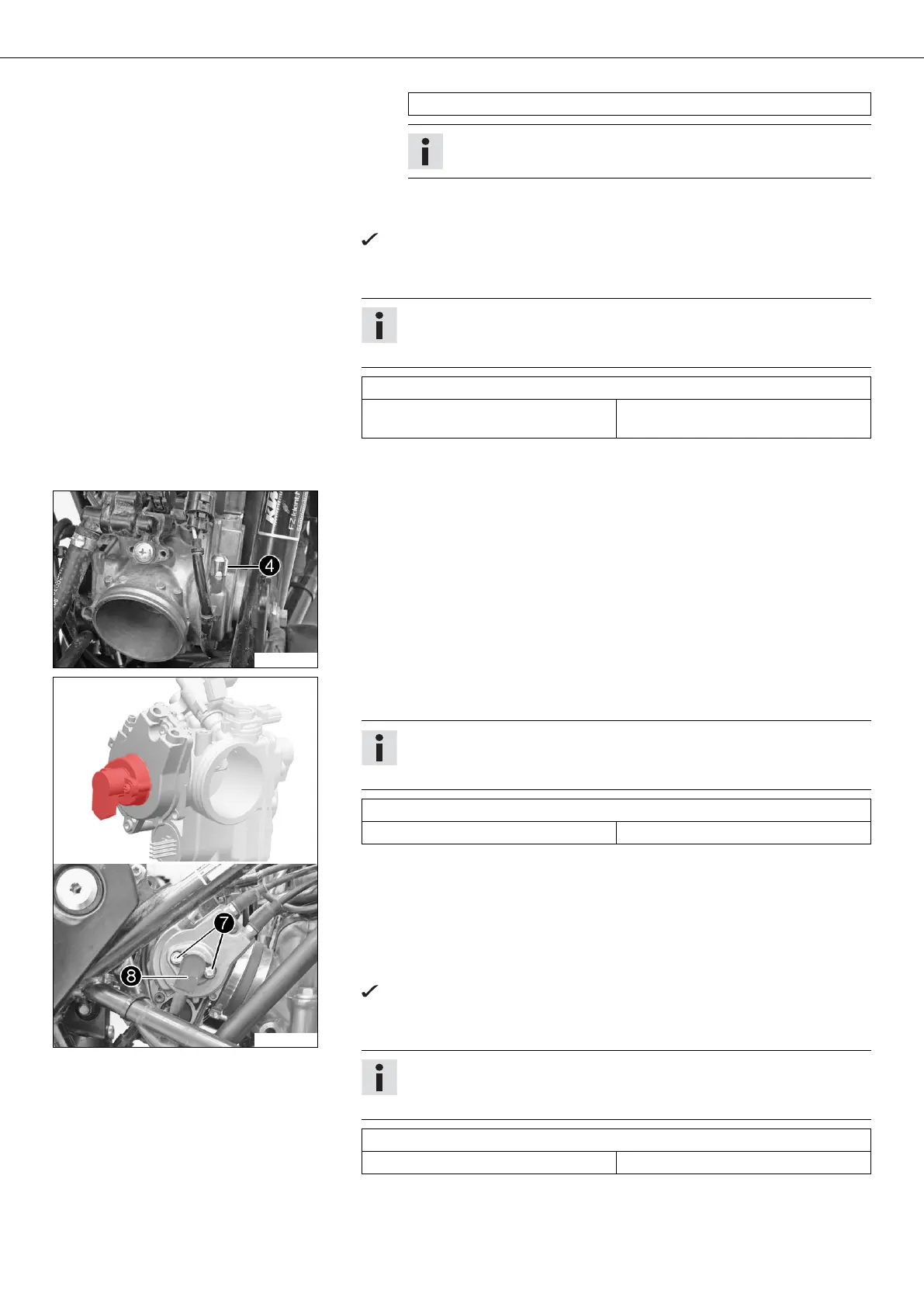

41/THROTTLE VALVE BODY 181
Loctite
®
648™
Info
Tighten by hand only, do not use a tool.
– Press "Continue".
– Open and close the throttle grip fully ten times.
The "Continue" button appears.
– Press "Continue".
– Check the voltage value.
Info
The "Continue" button only appears if the measured value equals the set-
point value.
Throttle position sensor circuit A
Emergency running position - volt-
age "THAD"
0.70… 0.74 V
» If the displayed value is not equal to the setpoint value:
– Repeat the setting.
601135-10
– Fix fuse cover with locking varnish.
600946-11
– Use "Continue" to start the "Adjusting the position of the throttle grip sensor" menu.
– Check the voltage value.
Info
The "Continue" button only appears if the measured value equals the set-
point value.
Throttle grip sensor
Voltage "APAD" 0.70… 0.74 V
» If the displayed value is not equal to the setpoint value:
– Loosen screws .
– Adjust the accelerator position sensor by turning to the specified value.
– Tighten screws .
– Press "Continue".
– Open and close the throttle grip fully ten times.
The "Continue" button appears.
– Press "Continue".
– Check the voltage value.
Info
The "Continue" button only appears if the measured value equals the set-
point value.
Throttle grip sensor
Voltage "APAD" 0.70… 0.74 V
» If the displayed value is not equal to the setpoint value:
– Repeat the setting.
