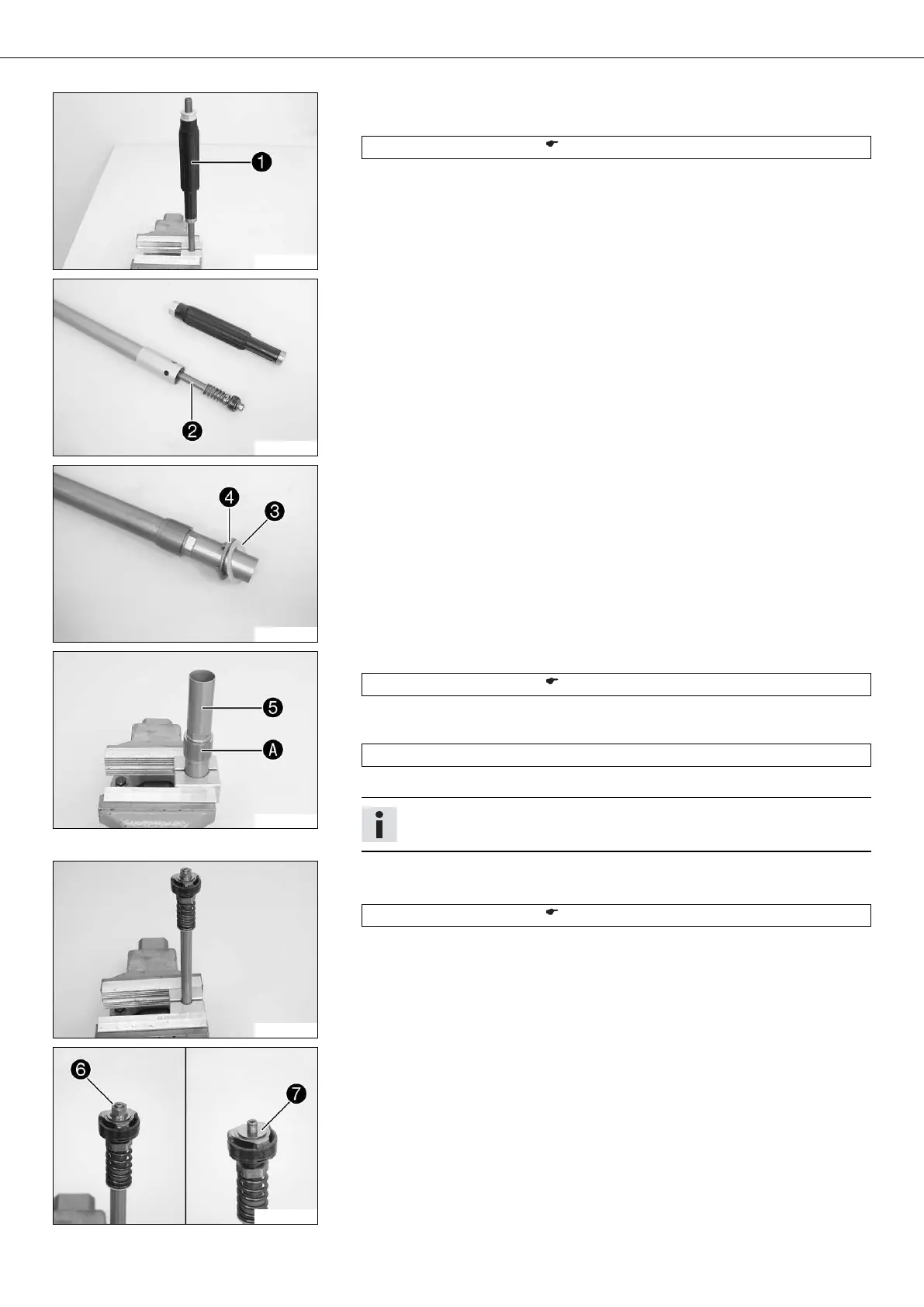

01/FORK, TRIPLE CLAMP 21
200746-10
– Degrease the piston rod.
– Clamp the piston rod with the special tool.
Clamping stand (T14016S) ( p. 256)
– Remove fluid barrier  from the piston rod.
200747-10
– Take piston rod  out of the cartridge.
200748-10
– Take washer  and spring seat  off of the cartridge.
200749-10
– Degrease the cartridge and clamp it with the special tool.
Clamping stand (T14015S) ( p. 256)
– Heat the cartridge in area .
Guideline
50 °C (122 °F)
– Loosen and remove screw sleeve .
Info
This operation is not needed for further disassembly.
200697-10
– Degrease the piston rod.
– Clamp the piston rod with the special tool.
Clamping stand (T14016S) ( p. 256)
200698-10
– Remove nut .
– Completely remove shim stack .
