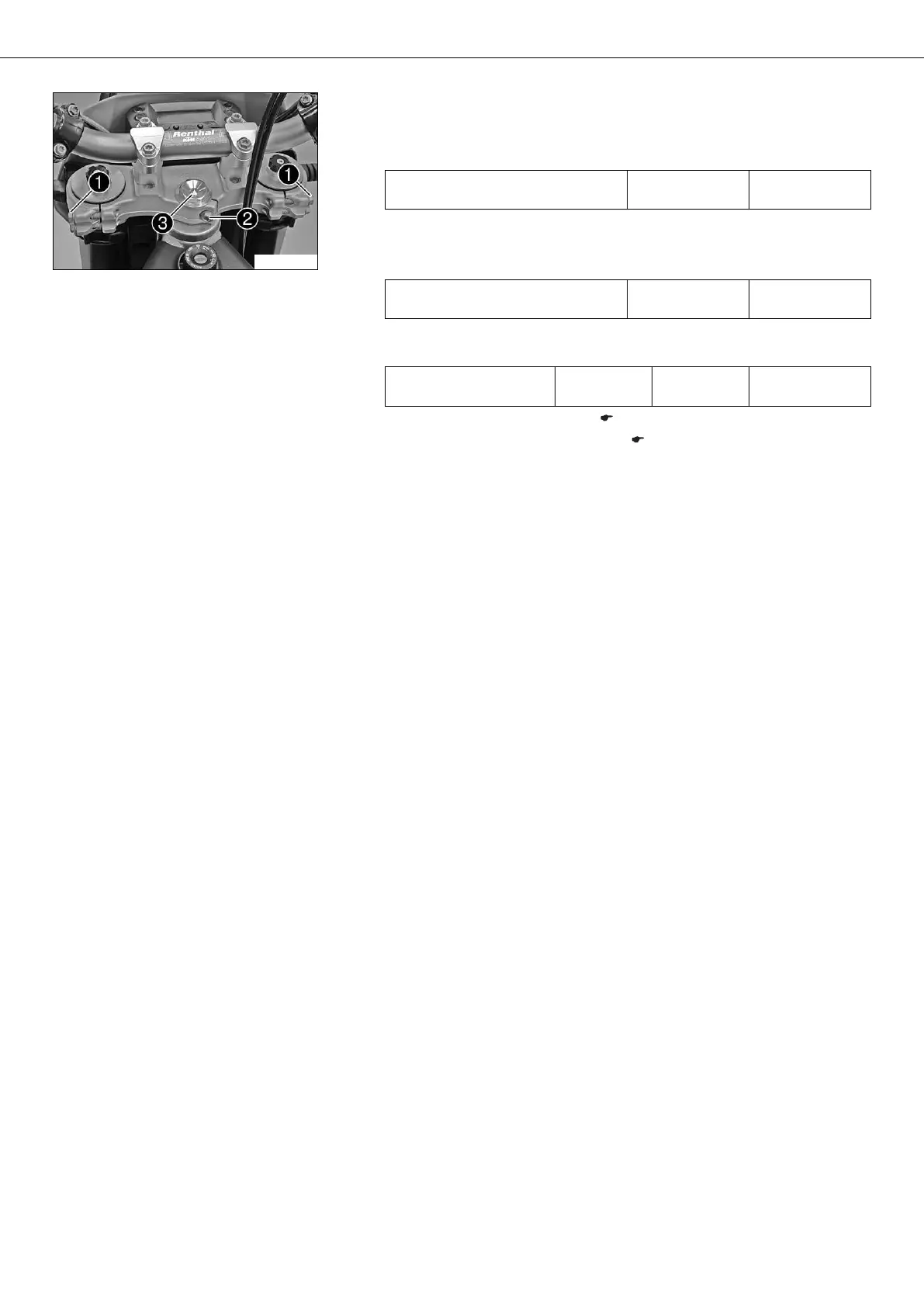

01/FORK, TRIPLE CLAMP 36
800093-10
(690 Enduro R)
– Loosen screw . Remove screw .
– Loosen and retighten screw .
Guideline
Screw, top steering head M20x1.5 10 Nm
(7.4 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp to avoid strains.
– Fully tighten screws .
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
– Mount and tighten screw .
Guideline
Screw, steering stem M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
– Check the steering head bearing play. ( p. 35)
– Remove the motorcycle from the lift stand. ( p. 9)
