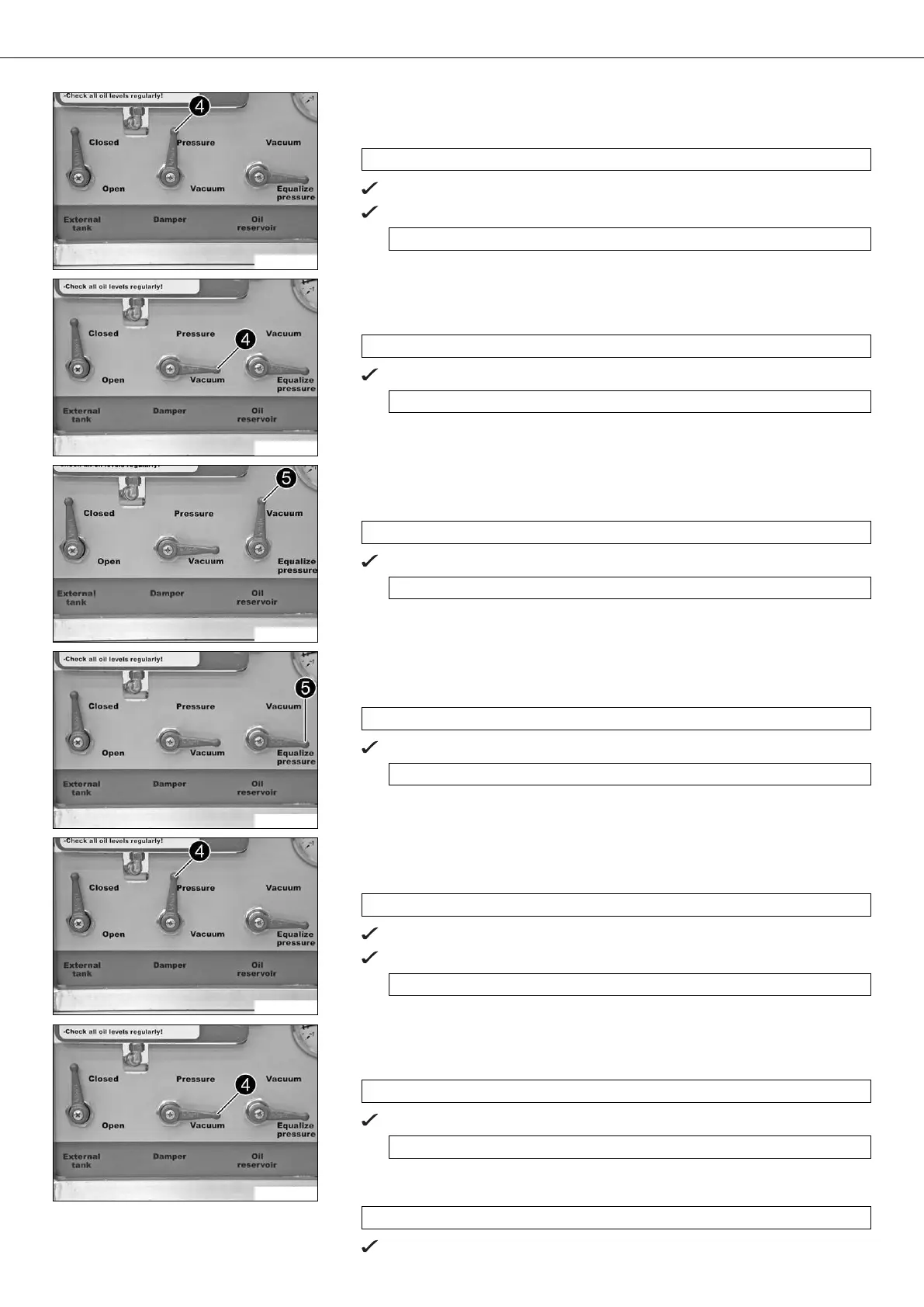

04/SHOCK ABSORBER, SWINGARM 56
200268-10
– When the pressure gauge reaches the specified value, turn the Damper control
lever  to Pressure.
Guideline
0 bar
Oil is pumped into the damper.
The pressure gauge rises to the specified value.
3 bar
200269-10
– When the pressure gauge reaches the specified value, turn the Damper  control
lever to Vacuum.
Guideline
3 bar
The pressure gauge falls to the specified value.
0 bar
200270-10
– When the pressure gauge reaches the specified value, turn the Oil reservoir  con-
trol lever to Vacuum.
Guideline
0 bar
The vacuum gauge falls to the specified value.
4 mbar
200267-10
– When the vacuum pressure gauge reaches the specified value, turn the Oil reser-
voir control lever  to Equalize Pressure.
Guideline
4 mbar
The pressure gauge falls to the specified value.
0 bar
200268-10
– When the pressure gauge reaches the specified value, turn the Damper control
lever  to Pressure.
Guideline
0 bar
Oil is pumped into the damper.
The pressure gauge rises to the specified value.
3 bar
200269-10
– When the pressure gauge reaches the specified value, turn the Damper  control
lever to Vacuum.
Guideline
3 bar
The pressure gauge falls to the specified value.
0 bar
– When the pressure gauge reaches the specified value, operate the On/Off switch.
Guideline
0 bar
The vacuum pump is switched off.
