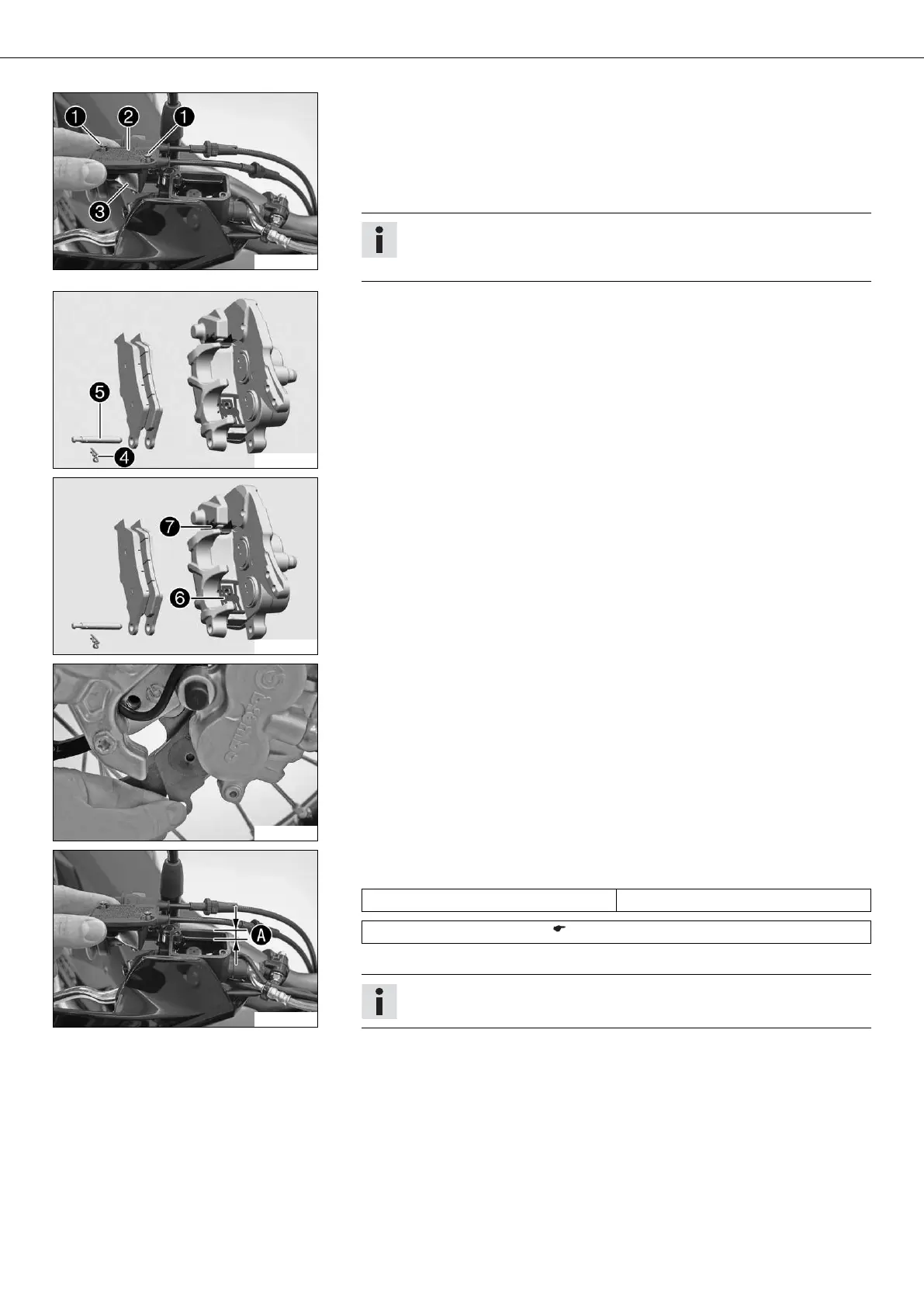

13/BRAKE SYSTEM 87
100254-11
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws .
– Remove cover with membrane .
– Press the brake caliper onto the brake disc by hand in order to push back the brake
pistons. Make sure that no brake fluid escapes from the brake fluid reservoir. If it
does, clean it up.
Info
Make sure when pushing back the brake pistons that you do not press the
brake caliper against the spokes.
400418-11
– Remove the safety clip , knock the pin out to the right, and remove the brake
linings.
– Clean brake caliper and brake caliper support.
400418-10
– Check that leaf spring in the brake caliper and sliding plate in the brake
caliper support are seated correctly.
800077-10
– Insert the brake pads, insert the bolt and mount the split pin.
– Operate the hand brake lever repeatedly until the brake linings lie on the brake disc
and there is a pressure point.
100254-12
– Add brake fluid level to .
Guideline
Measurement of 5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 242)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilt brake fluid immediately with water.
