U20-3, U25-3 WSM Machine body (Service section)
II-S-60

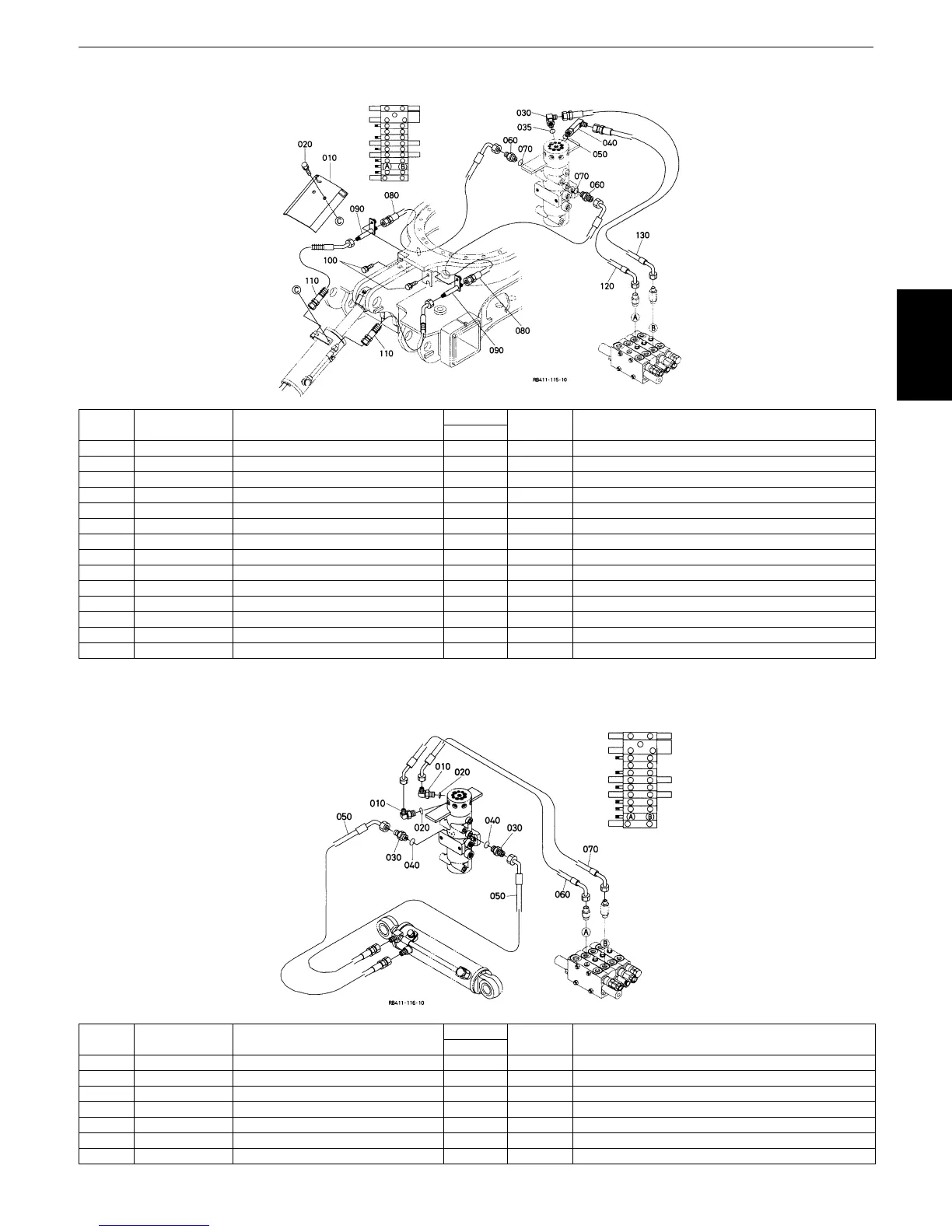

5) Blade piping
6) Track stretcher piping
Dwg. No. Part No. Part name
Q’ty
Interchange
ability
Remarks
A
010 RB411-7521-2 Cover (blade cylinder) 1
020 01133-61016 Bolt 2 M10×16L×1.25p 7T 48.1~55.9N·m(4.9~5.7kgf·m)
030 RB411-6376-0 Pipe joint(L, G 1/4 - G 1/4) 1
035 04810-00110 O-ring 1 Class 1B (hard) P (fixing·movable) nominal dia11mm
040 69254-7849-0 Pipe joint(L, G 1/4 - G 1/4) 1
050 04810-00110 O-ring 1 Class 1B (hard) P (fixing·movable) nominal dia11mm
060 68728-7615-0 Adaptor 2
070 04810-00110 O-ring 2 Class 1B (hard) P (fixing·movable) nominal dia11mm
080 RB411-6475-0 Hydraulic hose (blade, 1/4) 2
090 RB411-6471-0 Joint (blade hose) 2
100 01133-61020 Bolt 2 M10×20L×1.25p 7T 48.1~55.9N·m(4.9~5.7kgf·m)
110 RB411-6476-0 Hydraulic hose (blade, 1/4) 2 Length 440mm G1/4×CR4·G1/4
120 RB411-6487-0 Hydraulic hose (1/4) 1 Length 660mm G1/4×CR9·G1/4
130 RB411-6488-0 Hydraulic hose (1/4) 1 Length 800mm G1/4×CR4·G1/4
Dwg. No. Part No. Part name
Q’ty
Interchange
ability
Remarks
A
010 RB411-6376-0 Pipe joint (L, G 1/4 - G 1/4) 2
020 04810-00110 O-ring 2 Class 1B (hard) P (fixing·movable) nominal dia11mm
030 68728-7615-0X Adaptor 2
040 04810-00110 O-ring 2 Class 1B (hard) P (fixing·movable) nominal dia11mm
050 RB411-6477-0 Hydraulic hose (track, 1/4) 2 Length 560mm G1/4×CR4·G1/4
060 RB411-6465-0 Hydraulic hose (track, 1/4) 1 Length 800mm CR4·G1/4×CR9·G1/4
070 RB411-6466-0 Hydraulic hose (track, 1/4) 1 Length 900mm CR4·G1/4×CR9·G1/4
To Next Page
