U20-3, U25-3 WSM Machine body (Service section)
II-S-43

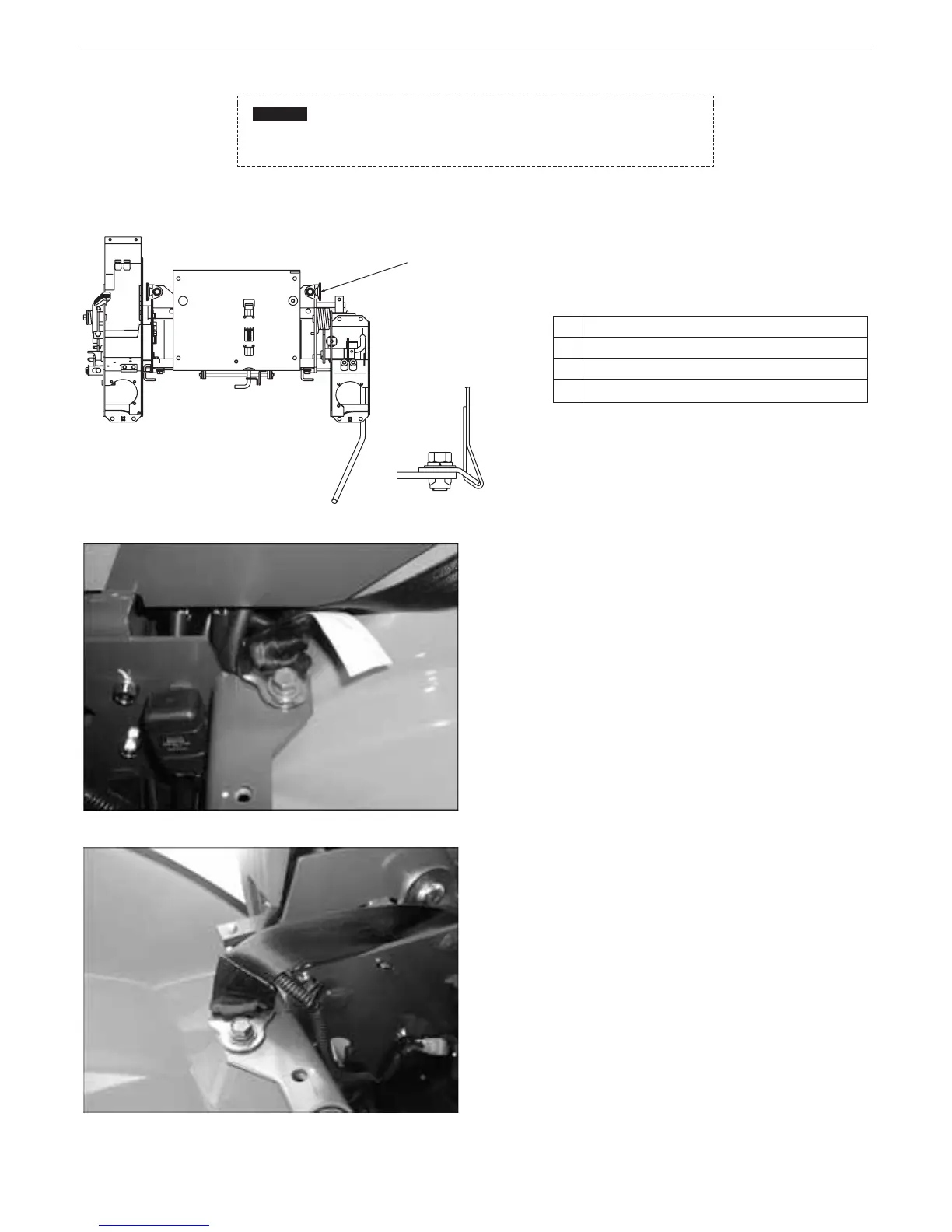

[6] Seat belt connection
Left-hand setup
Right-hand setup
Europe-destined
(1) Install the seat belt for both the cabin and canopy types.
(2) Do not install the right-hand unload lever on both the cabin and canopy types.
1. Tightening torque of seat belt assembly
48.1~55.9N•m (4.9~5.7kgf•m)
CAUTION:
(a) (b)
(c)
(d)
a
b
c
d
Seat belt assembly 36330-8515Δ
Bolt 01135-61020
Orientation of seat belt fixture
Folded end downward
