U20-3, U25-3 WSM Machine body (Service section)
II-S-50

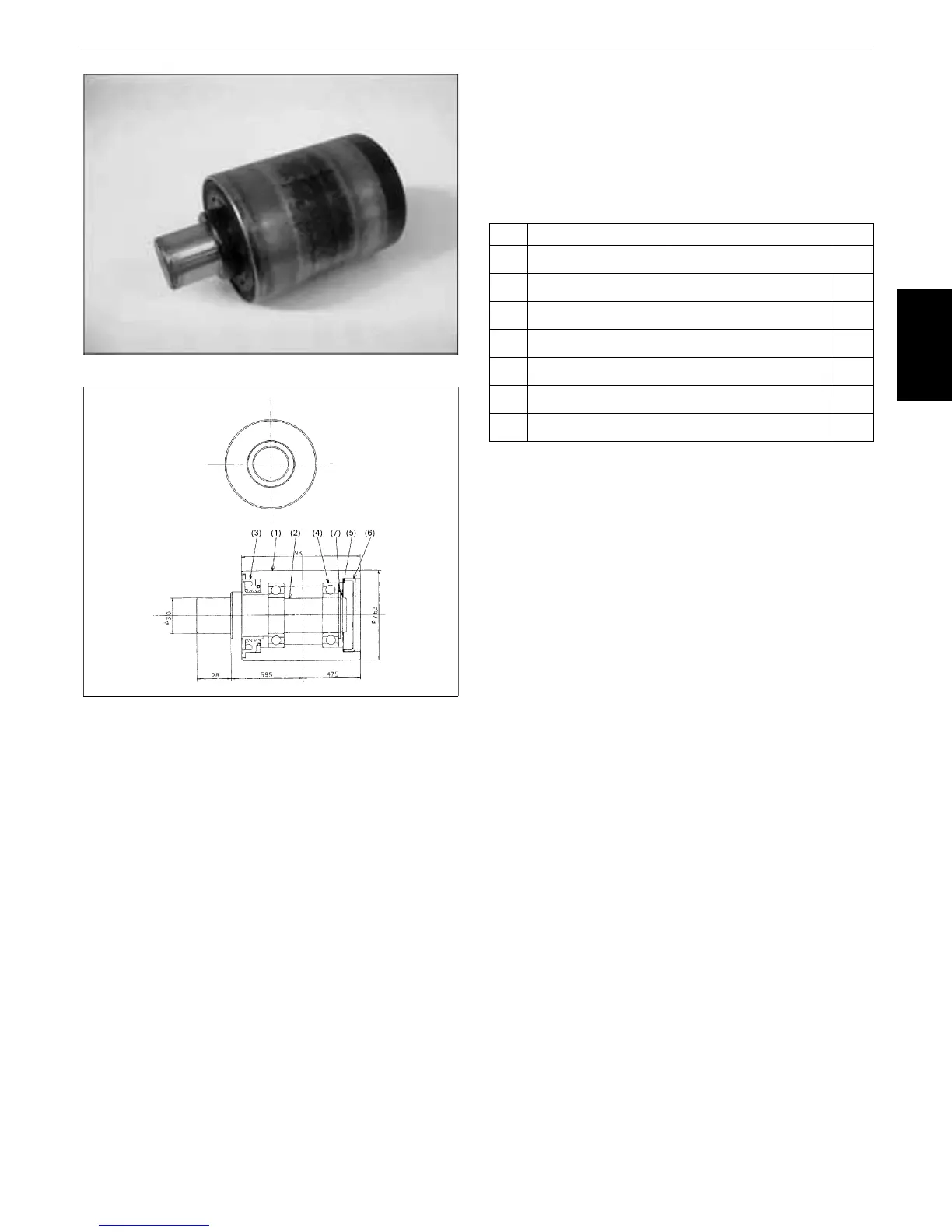

5) Carrier roller disassembling procedure
1. Check the roller surface and shaft for wear,
and measure the outside diameter, as
required. If out of spec, replace them with
new ones.
2. Put a bladed screwdriver at the cap side to
disassemble the roller. Replace the parts
with new ones in this case.
No. Part No. Part name Q’ty
1 RC411-2195Δ Carrier roller 1
2 RC411-2192Δ Shaft 1
3 RC601-2193Δ Oil seal 1
4 08101-06006 Ball bearing 2
5 Shaft circlip 1
6 RC601-2194Δ Plug 1
7 RC601-2196Δ Spacer 1
To Next Page
