Kubota U25-3 - Thermal Insulation and Sound Absorber

U20-3, U25-3 WSM Machine body (Service section)
II-S-42

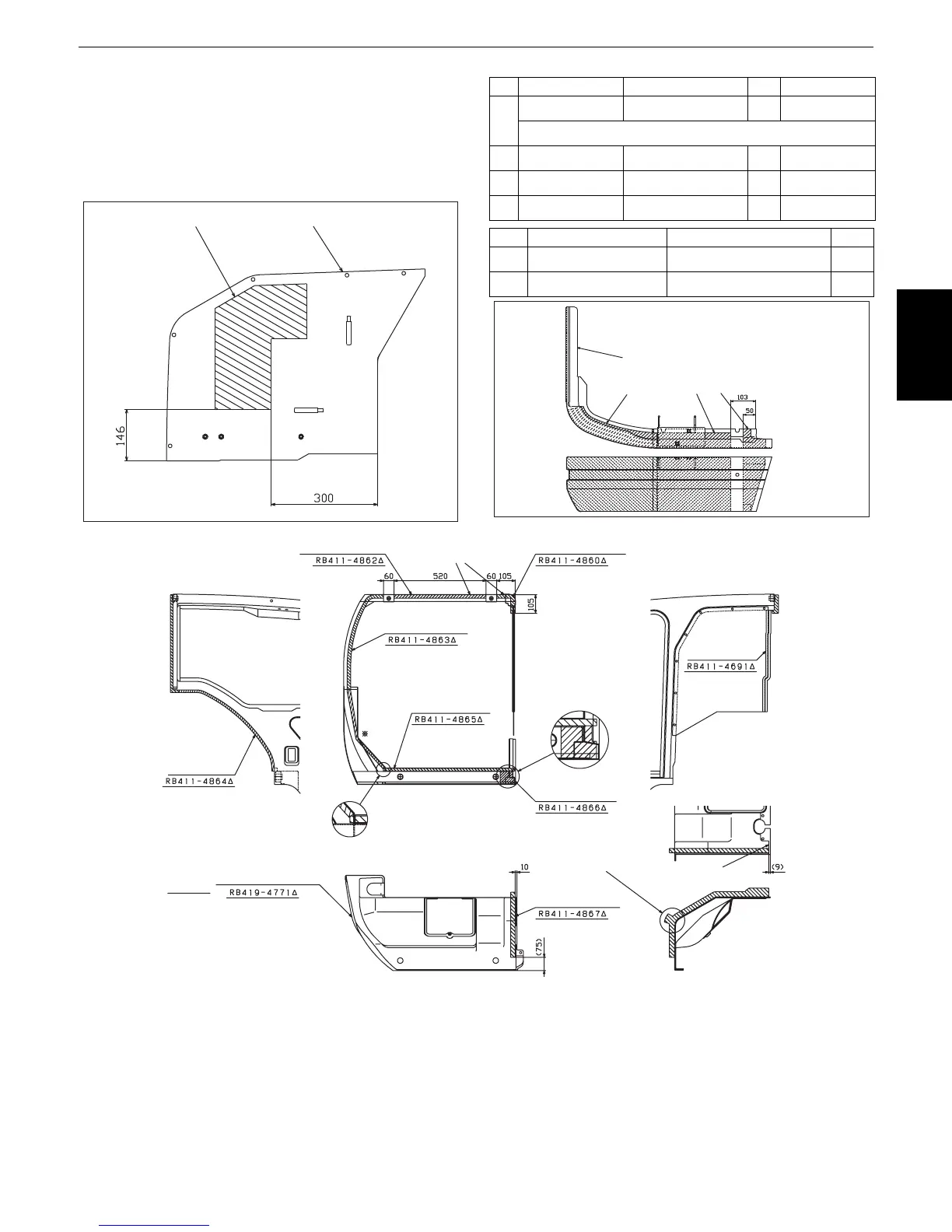

[5] Thermal insulation and sound
absorber
1. Before applying the thermal insulation and
sound-absorbing sheet, check the surfaces
for dust and fat. Finally press upon along
the edges to ensure tight fitness overall.
(9) Set to the inner line of the square pipe.
(10) Apply along the inside of the groove. Keep the
projected side to the right.
(11) Be sure to join the sealing rubber [5] and [6]
tight together.
(12) Get the sealing rubber [6], [7] and [8] in close
contact with each other.
(13) Apply the two-layer section at the round
center of the bonnet.
(5) (6)
No. Part No. Part name Q’ty Remarks
1
RB419-4591Δ Cover (left, cabin) 1 Blue No.24
RB411-4591Δ in different color
2 RB411-4117Δ sound absorber (cover, left) 1
3 RB411-4127Δ
sound absorber (cover, left2) 1
4 RB411-4128Δ
Sound absorber (cover, left3) 1
No. Part No. Part name Q’ty
5 RB419-4690Δ Cover (right) 1
6 RB411-4696Δ
Sound absorber (cover, right) 1
(1)
(4)
(3) (2)
Sealing rubber [3]
Sealing rubber [7]
Sealing rubber [5]
Bonnet (1,left,cabin)
Red No.1
Sealing rubber [4]
Sealing rubber [6]
(8)
(9)
(10)
(12)
(13)
(11)
(7)
Sealing rubber [1]
Align with this line.
Trimming (1,Cab)
Sealing rubber [8]
2.
(7) Apply the material along the end of the sealing
rubber [4]. Bring it in contact with the inner line
at the *-marked point. Finally align it with the
sealing rubber [6]. Make sure the soft side
faces the sealing rubber [6].
(8) Set the front sealing rubber in reference to the
front of the frame.
