U20-3, U25-3 WSM Electrical system (Service section)
V-S-14

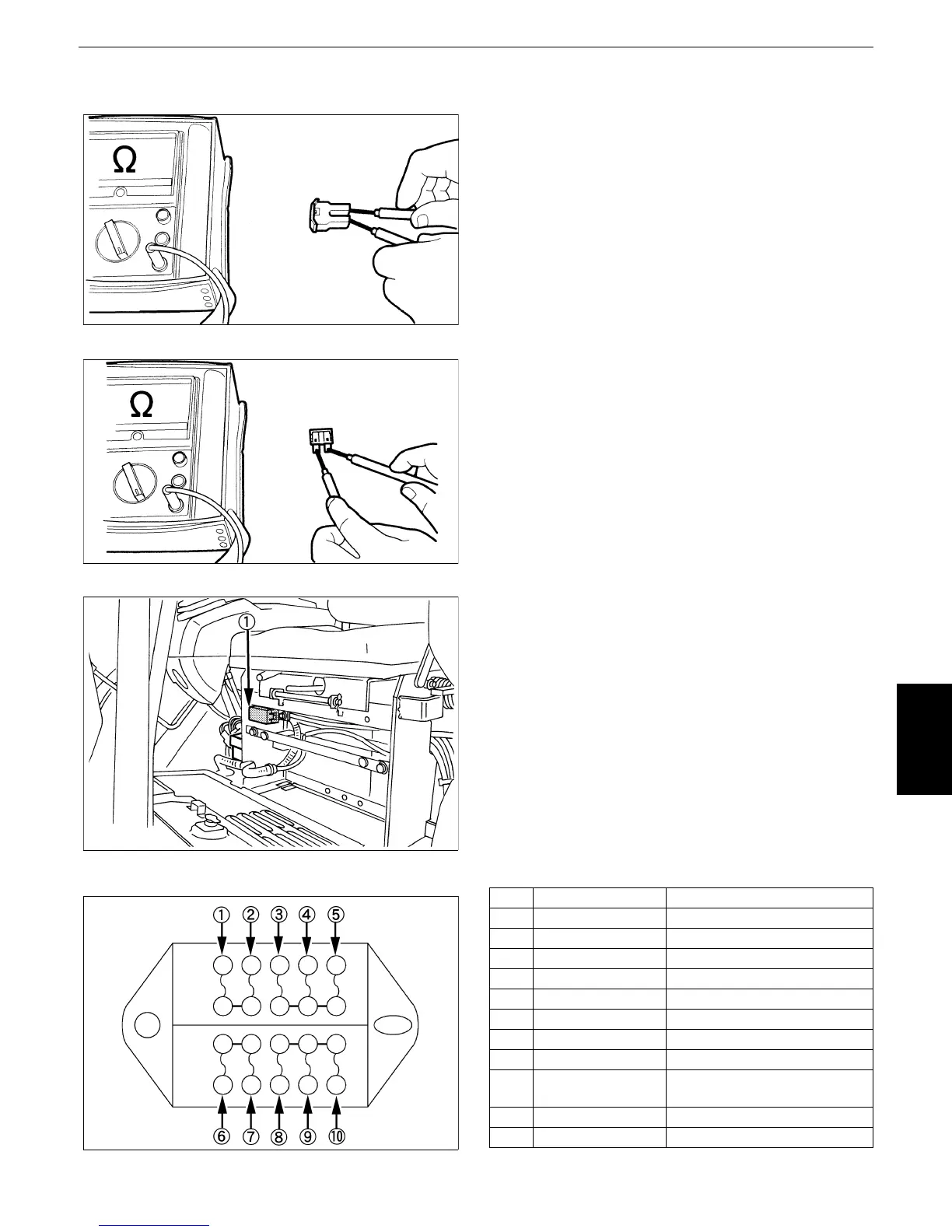

d Check instructions
Fig.1
Fig.2
(1)Fuse box
[1] Fuse
1 Check the continuity of the slow-blow fuse
(50A) to see if the fuse is blown. (Fig.1)
2 Check the continuity of the fuse (10A) to
see if the fuse is blown. (Fig.2)
FUSES
îš„
Replacing Fuses
1. Remove the cover of the fuse box.
2. Replace the burnt out fuse with a fuse having
the same capacity.
îš„
Fuse Capacities and Circuits
No. Capacity Circuit
(1) 15A Cabin equipment
(2) 15A Power source
(3) 5A Lever lock
(4) 10A Horn
(5) 5A Glow
(6) 10A Heater fan
(7) 20A Work lamp
(8) 5A Relay
(9) 10A
High speed
Alternator
(10) 5A Auto release
5A, 10A, 15A, 20A Spare fuses
