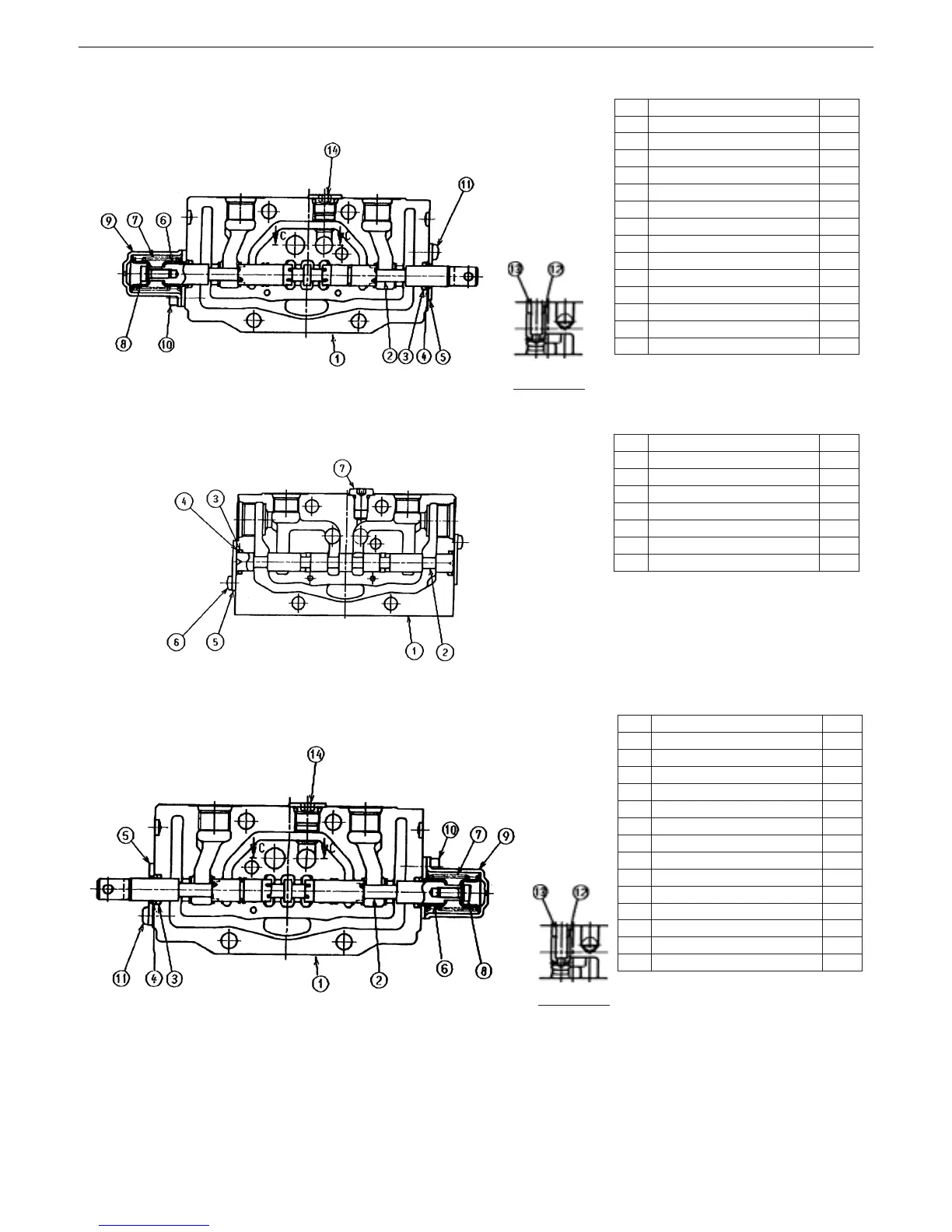

Kubota U25-3 - Inlet Section; Travel (Left) Section; Travel (Right) Section

U20-3, U25-3 WSM Hydraulic system (Mechanism section)
IV-M-12
Section C-C
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Q’ty
1
1
2
2
2
2
1
1
1
2
2
1
1
1
PARTS NAME
HOUSING
SPOOL
O RING
WIPER
SEAL PLATE
SPRING SEAT
SPRING
CAP SCREW
CAP
BOLT
BOLT
POPPET
SPRING
PLUG
Travel (right) section
No.
1
2
3
4
5
6
7
Q’ty
1
1
2
2
2
4
1
PARTS NAME
HOUSING
SPOOL
O RING
BACKUP LING
SEAL PLATE
BOLT
PLUG
Inlet section
Section C-C
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Q’ty
1
1
2
2
2
2
1
1
1
2
2
1
1
1
PARTS NAME
HOUSING
SPOOL
O RING
WIPER
SEAL PLATE
SPRING SEAT
SPRING
CAP SCREW
CAP
BOLT
BOLT
POPPET
SPRING
PLUG
Travel (left) section
