U20-3, U25-3 WSM Machine body (Service section)
II-S-26

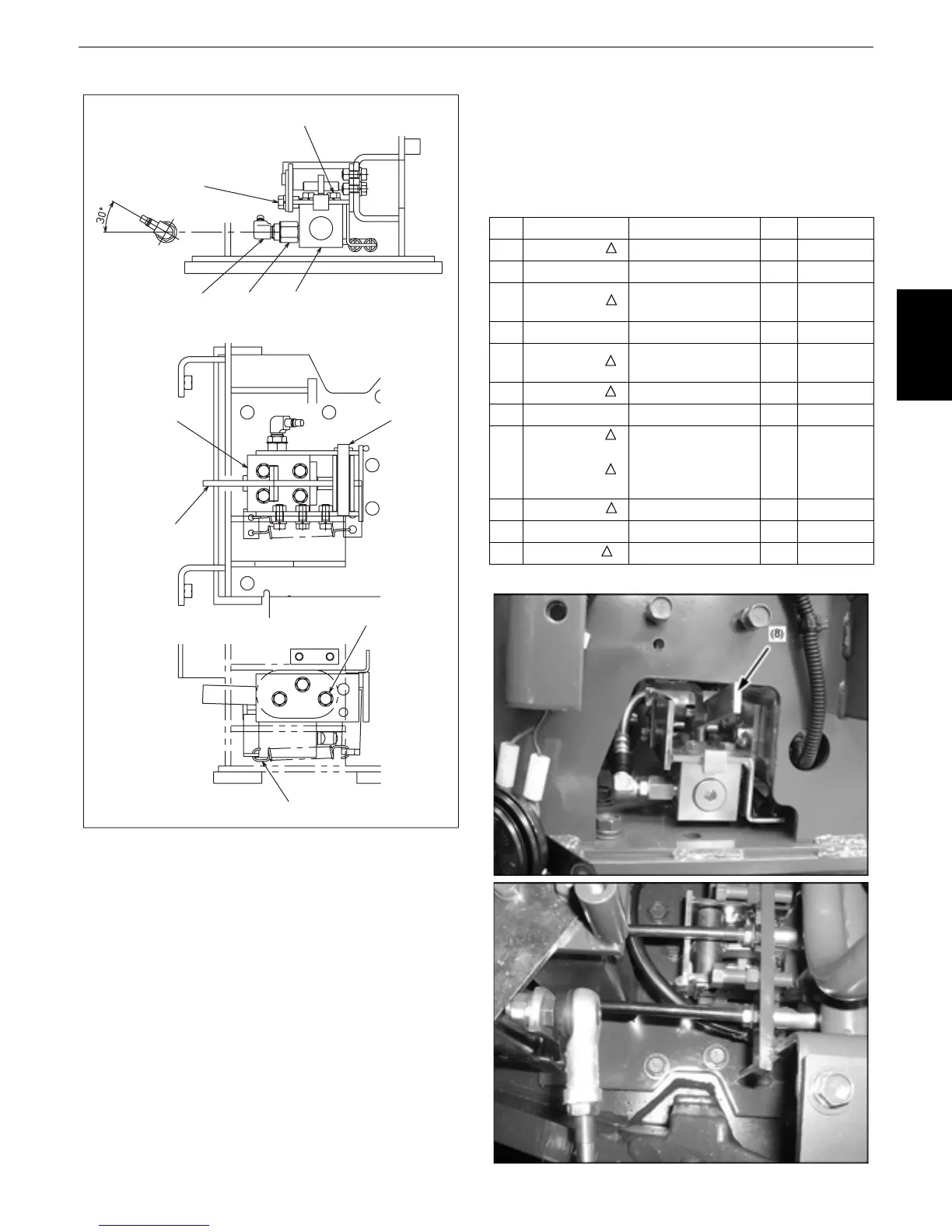

4) Travel lever lock
(1) Apply grease to the DU bushing bearing.
(2) Tightening torque of adaptor
G1/8:15.0~16.5N·m (1.5~1.7kgf·m)
G1/4:24.5~29.4N·m (2.5~3.0kgf·m)
(2)
(10)
(5)
(6)
(8)
(7)
(11)
(9)
(1)(4)(3)
No. Part No. Part name Q’ty Remarks
1 RG518-6611 Assy Cylinder (TL) 1
2 01123-60820 Bolt 4
3 RC418-6613
Pipe joint
(S.G1/8-G1/4)
1
4 04810-00080 O-ring 1
5 RP821-6197
Pipe joint
(QL. G1/4-8.4)
1
6 RB419-6607 Bracket (lock, travel) 1
7 01123-60820 Bolt 3
8
RB419-6610
RB419-6609
08511-01216
Lever assembly
(lock, travel)
Lever (lock, travel)
Bushing
1
1
2
9 RC418-6608 Shaft (lock, travel) 1
10 01123-60820 Bolt 1
11 50300-6128 Tension spring 2
To Next Page
