U20-3, U25-3 WSM Machine body (Service section)
II-S-35
c. Fuel tank and hose

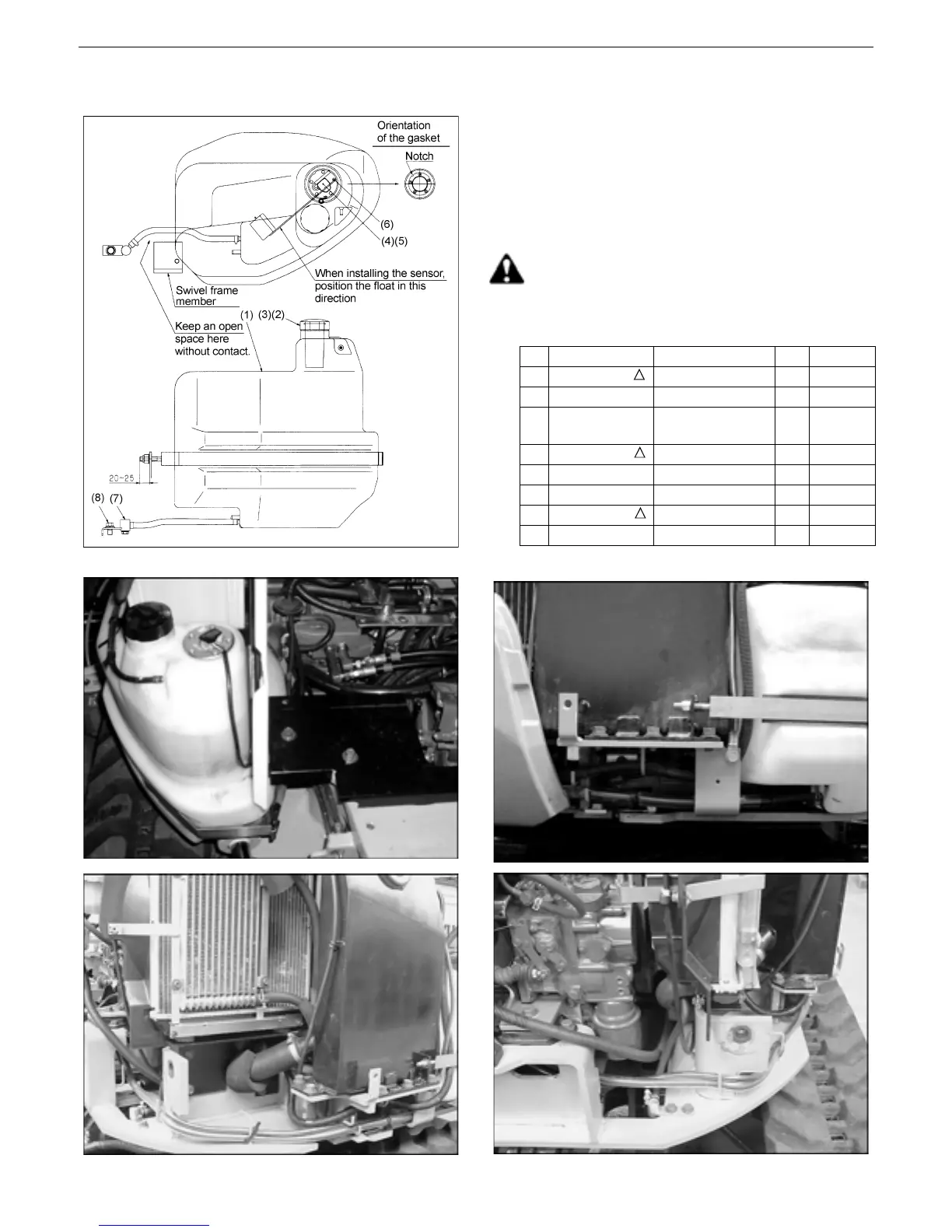

Fuel tank assembly view
1) Assembling procedure
1. Installing the sensor (fuel)
Tightening torque of washer-fitted machine
screw (6) : 3~4N·m (0.3~0.4kgf·m)
2. Tightness of fuel band
Stretch allowance of fuel band out of the
hydraulic oil tank:
23±1mm (reference)
CAUTION
With the band in place, make sure the fuel tank is
tight in position.
3. Parts list
No. Part No. Part name Q’ty Remarks
1 RB411-5111 Fuel tank 1 (511)
2 68701-51121
Cap assembly (Fuel)
1
3 35450-41061
Fuel filter
assembly
1
4 RB411-5114 Sensor (Fuel) 1
5 RC101-51343 Gasket 1
6 03024-60512
Head screw with washer
5M5 × 0.8
7RB411-5130
Base (drain) assembly
1
8 01135-61020 Bolt 1
M10
×
1.25 7T
To Next Page
