U20-3, U25-3 WSM Hydraulic system (Mechanism section)
IV-M-58
4) Motor stop

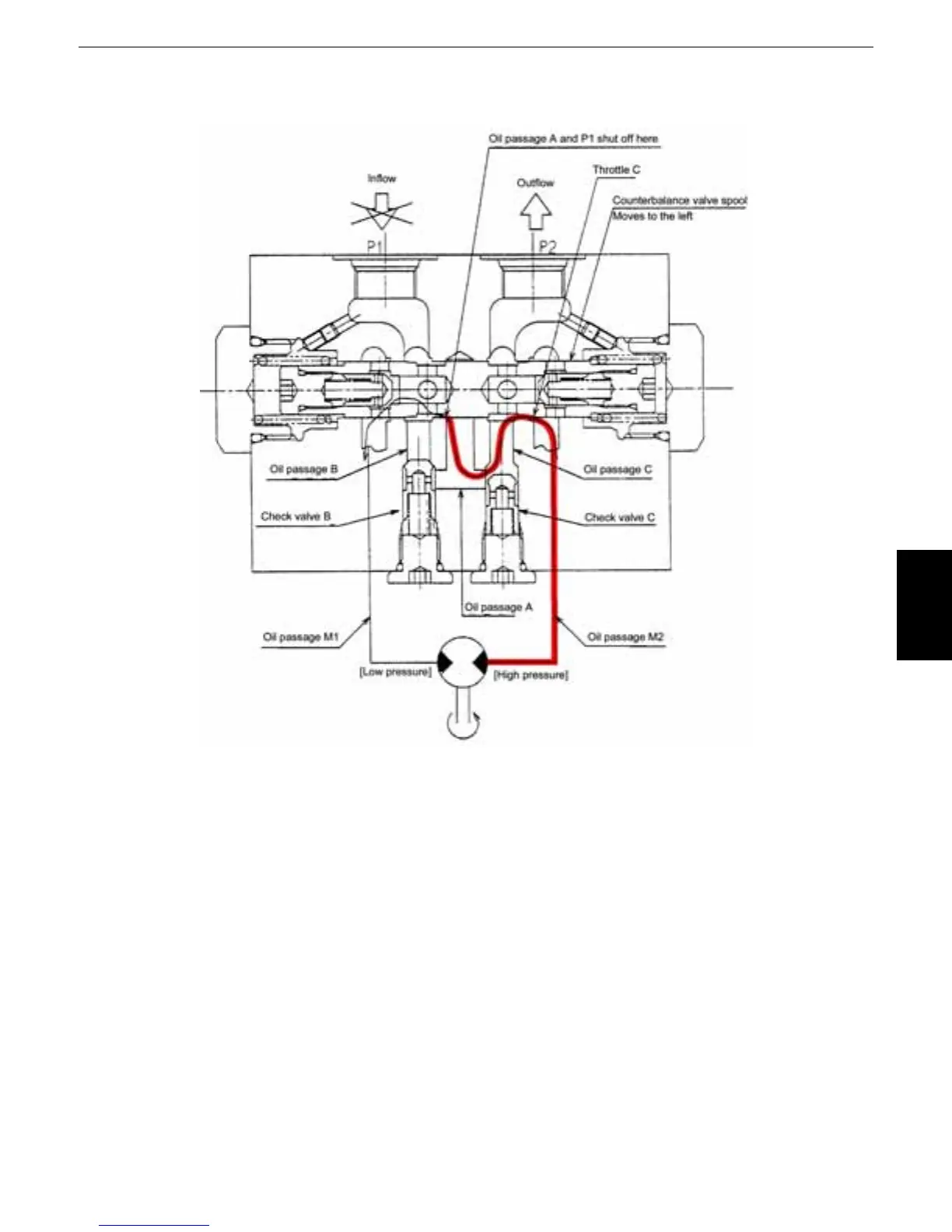

The anti-cavitation function keeps on until the oil passage A and port P1 are shut off as shown in
the figure below (at the indicated positions).
