Kubota U25-3 Repair Manual

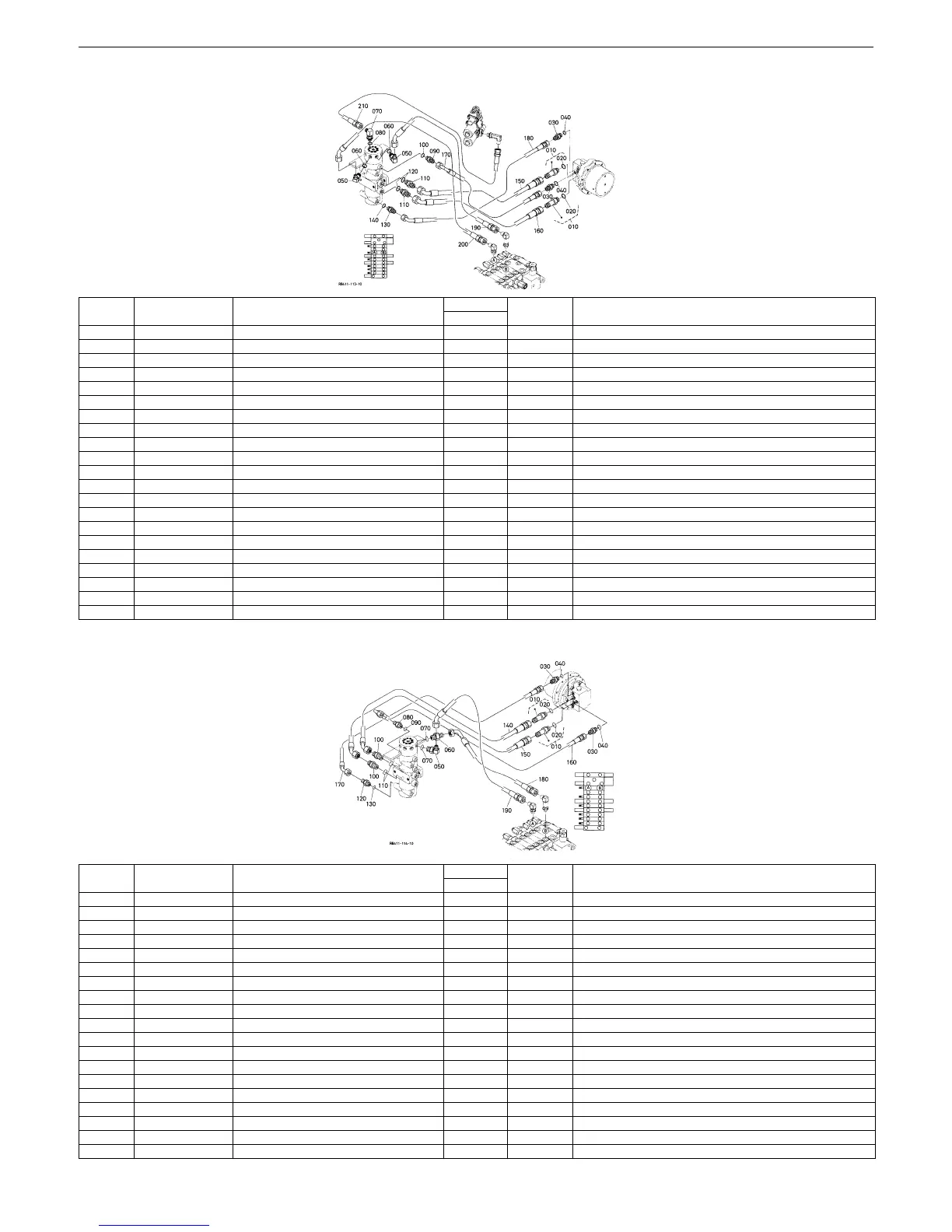

U20-3, U25-3 WSM Machine body (Service section)
II-S-61
7) Left-travel piping
8) Right-travel piping
Dwg. No. Part No. Part name
Q’ty
Interchange
ability
Remarks
A
010 RB411-6394-0 Straight pipe joint (3-3-50) 2
020 04810-00140 O-ring 2 Class 1B (hard) P (fixing·movable) nominal dia14mm
030 68728-7615-0 Adaptor 2
040 04810-00110 O-ring 2 Class 1B (hard) P (fixing·movable) nominal dia11mm
050 RP201-6181-0 Pipe joint (L, G 3/8 - G 3/8) 2
060 04810-00140 O-ring 2 Class 1B (hard) P (fixing·movable) nominal dia14mm
070 RB411-6376-0 Pipe joint (L, G 1/4 - G 1/4) 1
080 04810-00110 O-ring 1 Class 1B (hard) P (fixing·movable) nominal dia11mm
090 68728-7615-0 Adaptor 1
100 04810-00110 O-ring 1 Class 1B (hard) P (fixing·movable) nominal dia11mm
110 68311-6432-0 Straight pipe joint 2
120 04810-00140 O-ring 2 Class 1B (hard) P (fixing·movable) nominal dia14mm
130 68728-7615-0 Adaptor 1
140 04810-00110 O-ring 1 Class 1B (hard) P (fixing·movable) nominal dia11mm
150 RB411-6467-0 Hydraulic hose (travel, 3/8) 1 Length 940mm G3/8×CR4·G3/8
160 RB411-6468-0 Hydraulic hose (travel, 3/8) 1 Length 940mm G3/8×CR4·G3/8
170 RB411-6469-0 Hydraulic hose (bi-speed, 1/4) 1 Length 1050mm G1/4×CR9·G1/4
180 RB411-6479-0 Hydraulic hose (drain, 1/4) 1 Length 1000mm G1/4×CR4·G1/4
190 RB411-6441-0 Hydraulic hose (3/8) 1 Length 440mm G3/8×CR4·G3/8
200 RB411-6442-0 Hydraulic hose (3/8) 1 Length 380mm G3/8×CR4·G3/8
210 RB411-6445-0 Hydraulic hose (1/4) 1 Length 970mm G1/4×CR9·G1/4
Dwg. No. Part No. Part name
Q’ty
Interchange
ability
Remarks
A
010 RB411-6394-0 Straight pipe joint (3-3-50) 2
020 04810-00140 O-ring 2 Class 1B (hard) P (fixing·movable) nominal dia14mm
030 68728-7615-0 Adaptor 2
040 04810-00110 O-ring 2 Class 1B (hard) P (fixing·movable) nominal dia11mm
050 RP201-6181-0 Pipe joint (L, G 3/8 - G 3/8) 2
060 04810-00140 O-ring 2
070 RB411-6376-0 Pipe joint (L, G 1/4 - G 1/4) 1 Class 1B (hard) P (fixing·movable) nominal dia14mm
080 04810-00110 O-ring 1
090 68728-7615-0 Adaptor 1 Class 1B (hard) P (fixing·movable) nominal dia11mm
100 04810-00110 O-ring 1
110 68311-6432-0 Straight pipe joint 2 Class 1B (hard) P (fixing·movable) nominal dia11mm
120 04810-00140 O-ring 2
130 68728-7615-0 Adaptor 1 Class 1B (hard) P (fixing·movable) nominal dia14mm
140 04810-00110 O-ring 1 Class 1B (hard) P (fixing·movable) nominal dia11mm
150 RB411-6467-0 Hydraulic hose (travel, 3/8) 1 Length 940mm G3/8×CR4·G3/8
160 RB411-6468-0 Hydraulic hose (travel, 3/8) 1 Length 940mm G3/8×CR4·G3/8
170 RB411-6469-0 Hydraulic hose (bi-speed, 1/4) 1 Length 1050mm G1/4×CR9·G1/4
180 RB411-6479-0 Hydraulic hose (drain, 1/4) 1 Length 1000mm G1/4×CR4·G1/4
190 RB411-6441-0 Hydraulic hose (3/8) 1 Length 440mm G3/8×CR4·G3/8
