U20-3, U25-3 WSM Machine body (Service section)
II-S-5

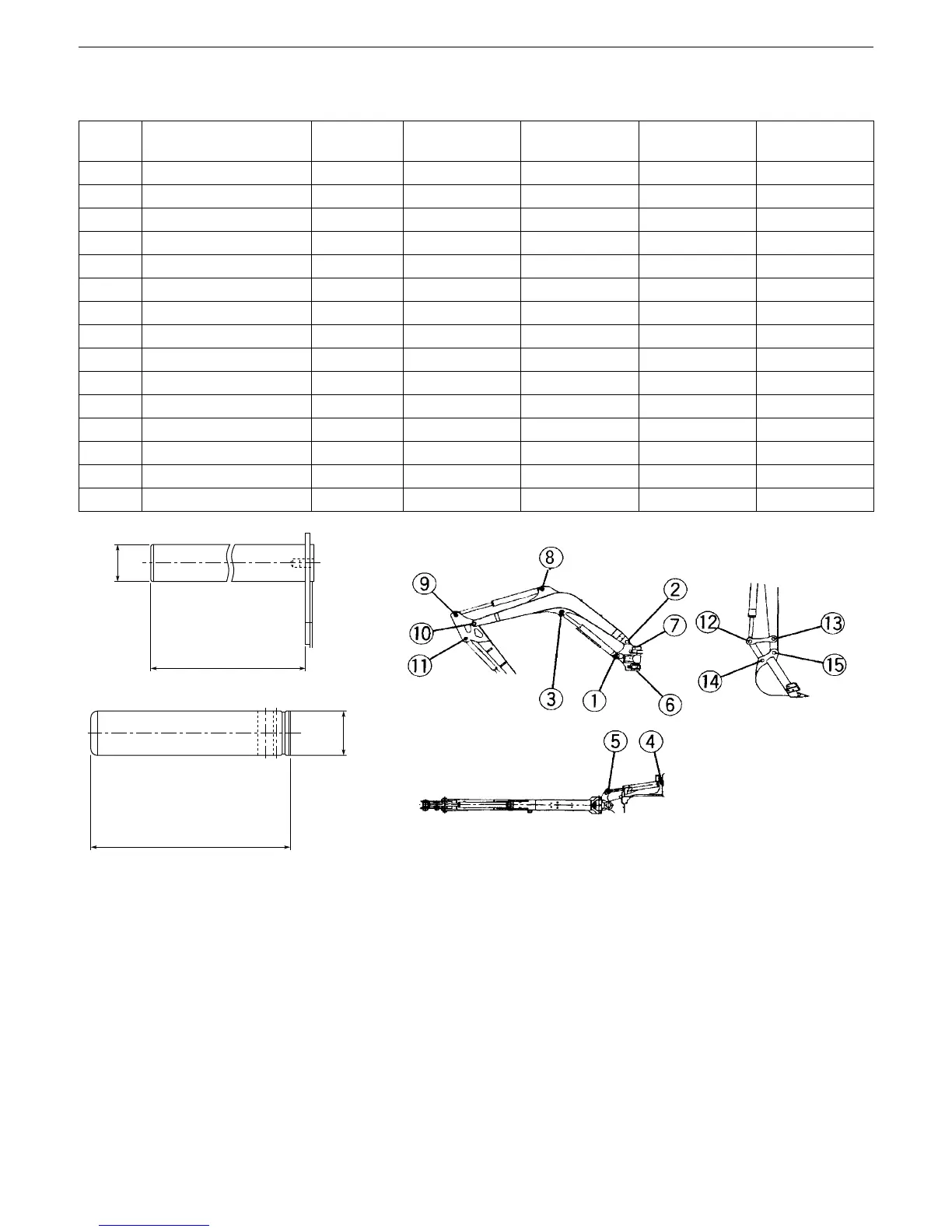

d. Dimensions of parts
[1] Front pins
No. Unit U20-3 U25-3
Allowable wear
limit
1 Pin diameter × length mm 40 × 164 40 × 164
2 Pin diameter × length mm 40 × 236 40 × 236
3 Pin diameter × length mm 40 × 177 40 × 177
4 Pin diameter × length mm 30 × 118 30 × 118
5 Pin diameter × length mm 30 × 83.5 30 × 83.5
6 Pin diameter × length mm 60 × 104 60 × 104
7 Pin diameter × length mm 60 × 137 60 × 137
8 Pin diameter × length mm 40 × 177 40 × 177
9 Pin diameter × length mm 40 × 145 40 × 163
10 Pin diameter × length mm 40 × 199 40 × 199
11 Pin diameter × length mm 40 × 145 40 × 163
12 Pin diameter × length mm 40 × 104 40 × 104
13 Pin diameter × length mm 30 × 170 30 × 170
14 Pin diameter × length mm 30 × 183 30 × 183
15 Pin diameter × length mm 30 × 183 30 × 183
a
O.D.
O.D.
a
a : length
