Malfunctions in driving mode
7.5 Fuses
7 - 20 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
7.5.1 Fuses in the driver's cab

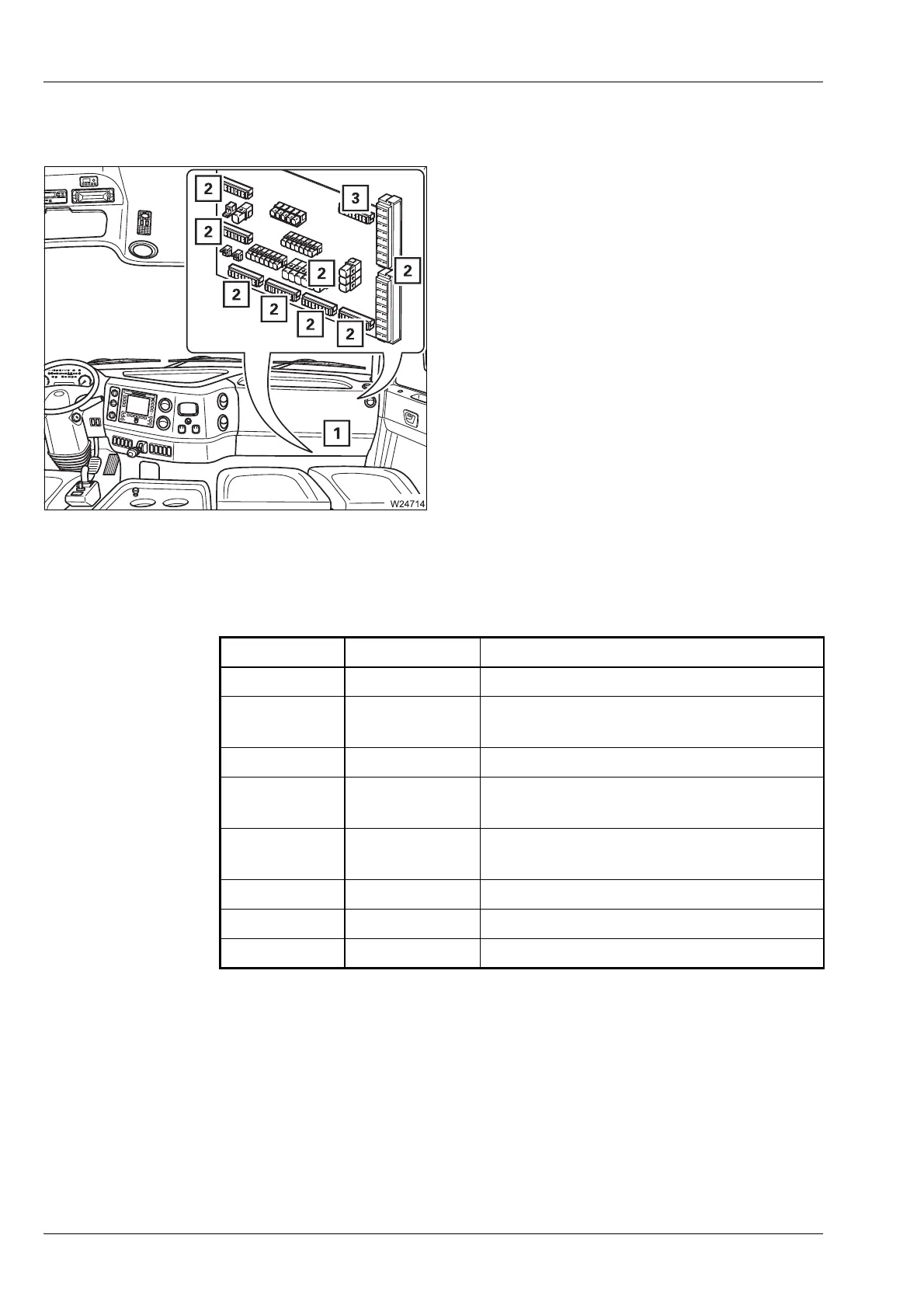

• Remove the covers (1).
The following sections show the designa-
tions of the individual fuses, including their
amperage and functions.
Group F1 The fuses are labelled with the numbers.
• Observe the instructions on changing fuses; à p. 7 - 19.
2 Fuse groups F1 to F10
3 Reserve fuses
Designation Amperage (A) Function
F1/1 20 Automatic parking light
1)
F1/2 10
Diagnostics plug, cab lighting
Cigarette lighter
F1/3 20 Oil cooler, 24 V/12 V voltage transformer
F1/4 10
Hazard warning system, light switch,
power supply
1)
F1/5 5
Engine electronic system, ECOS control
unit
F1/6 10 Electronic gear system
F1/7 15 ABS trailer
F1/8 – Unassigned
1)
Additional equipment
