Crane operation
11.2 Operation of the rated capacity limiter
11 - 34 3 112 xxx en Operating Manual GMK6300L
xx.xx.xxxx
11.2.4 Displays during crane operation
The following information is constantly displayed in addition to the displays
of the rigging mode:

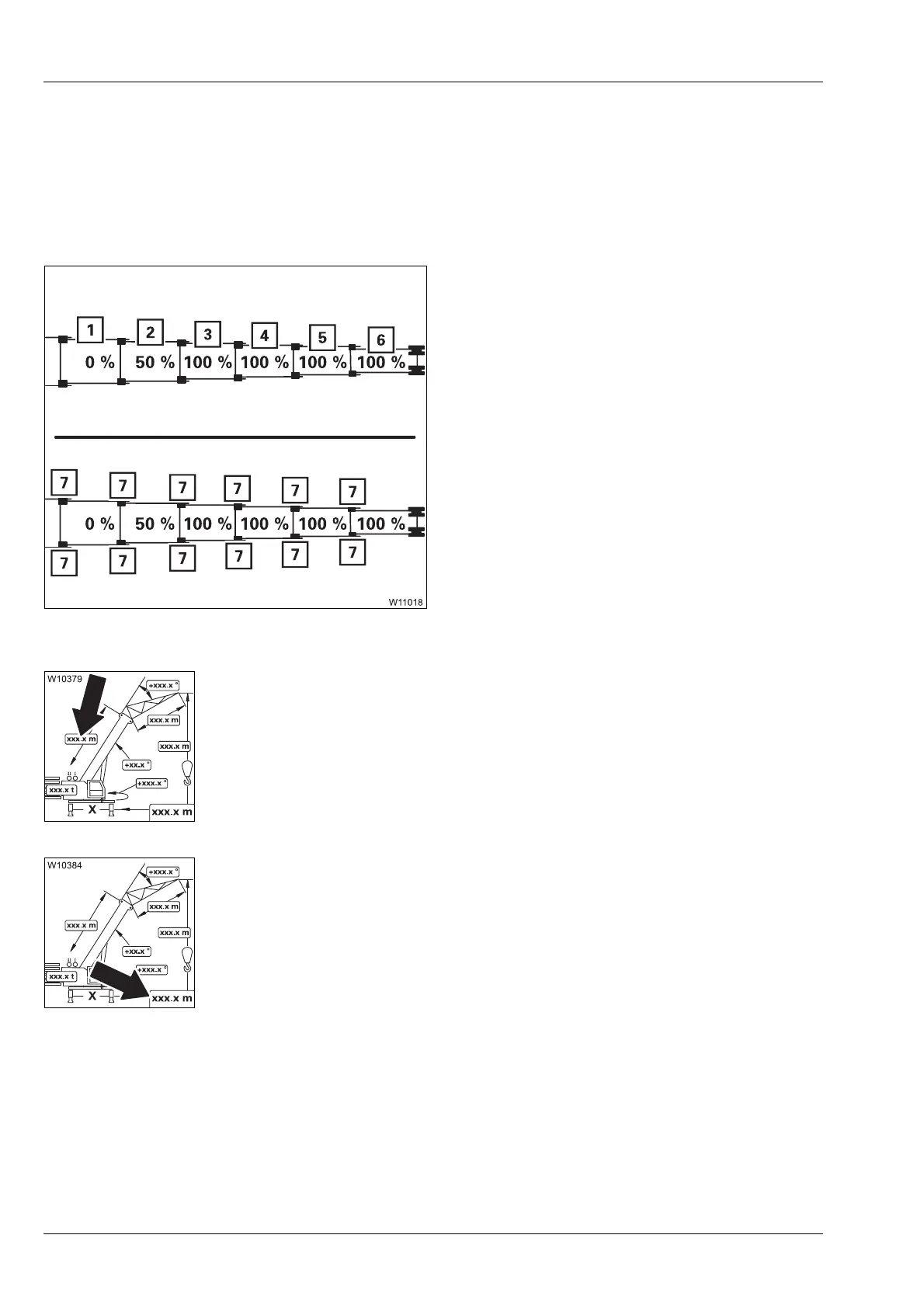

The current telescoping
The displays (1) to (6) show the current tele-
scoping of the telescopic sections
I to IV in
percent, e.g. 50%.
Fixed and intermediate lengths differ in the
locking pins (7)
The current main boom length
Shows the current main boom length in metres (m) or feet (ft).
The current working radius
Shows the current working radius = horizontal distance between the
turntable axis and the hook block axis.
The displayed value is calculated on the basis of the telescoping and the
main boom or lattice extension angle.
The value is displayed either in metres (m) or feet (ft), depending on the
setting.
7 – Green: Fixed length
– Black: Intermediate length
– Flashing: Telescopic section at fixed
length not set down or
unlocked
