MIMAKI JV5 Series Operating Manual

2-4

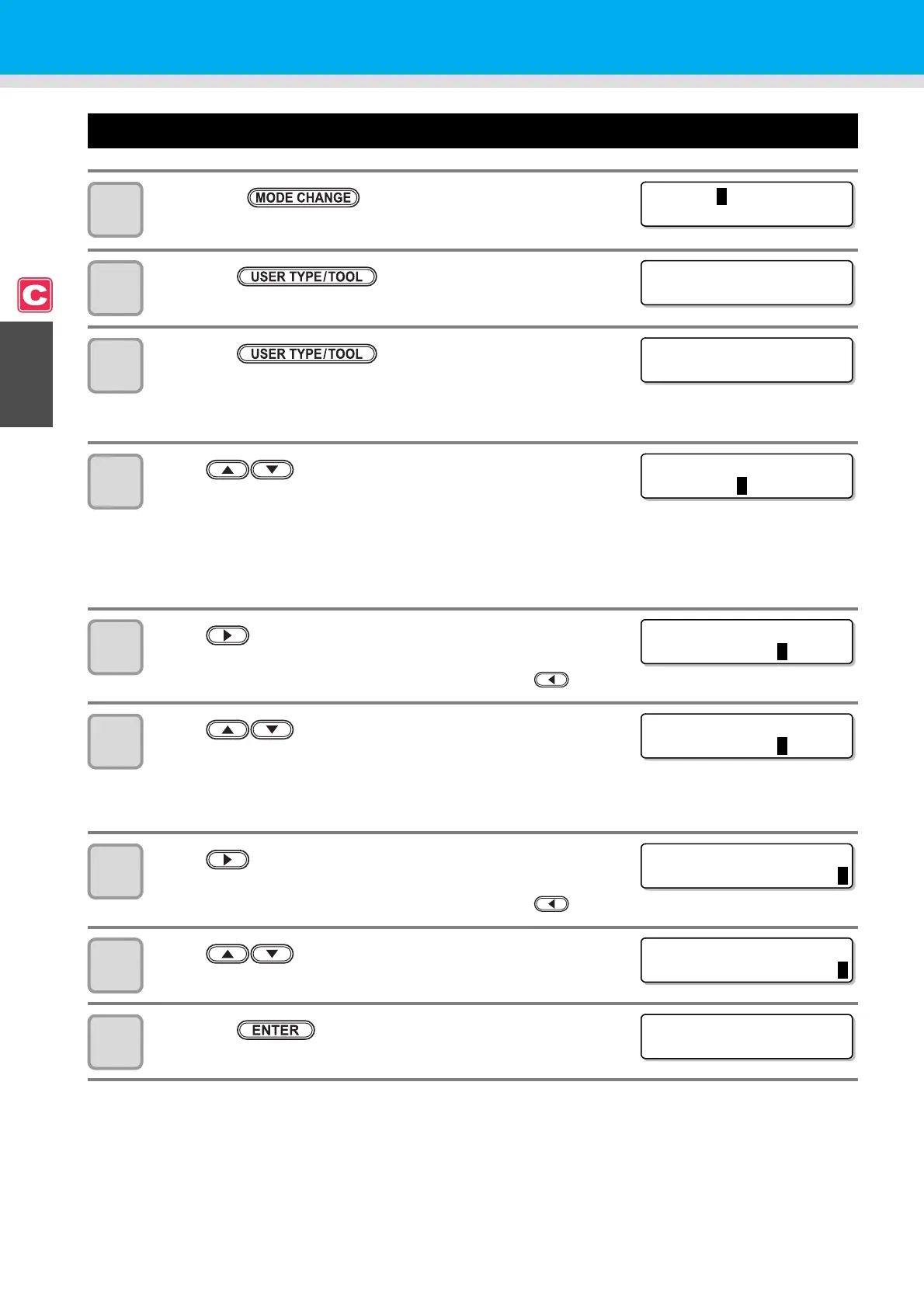

Registering a Tool Condition
1
Press the key in LOCAL to select the
cutting mode.
2
Press the key.
3
Press the key to select a tool condition
to be set.
• A tool condition consists of cutting conditions (CUT1 to CUT3), printing-with-a-pen condition (PEN), and
cutting condition (HALF).
4
Press to set a speed.
• Set value : 1 to 10 cm/s (The value can be set by
the unit of 1 cm/s.)
15 to 30 cm/s (The value can be set by the unit of 5 cm/s.)
• When the value is made larger, the speed becomes faster. When the value is made smaller, the speed
becomes slower.
(Normally, the value is set at 20 to 30 cm/s.)
5
Press to select PRS (PRESSURE).
• The cursor moves to PRS.
• To return to the previous setting item, press the jog key .
6
Press to set a pressure value.
• Set value : 10 to 20 g (The value can be set by the unit of 2 g.)
20 to 100 g (The value can be set by the unit of 5 g.)
100 to 350 g (The value can be set by the unit of 10 g.)
• When selecting “PEN” for the tool condition, the maximum value is 150g.
7
Press to select OFS (OFFSET).
• The cursor moves to OFS.
• To return to the previous setting item, press the jog key .
8
Press to set an OFS value.
• Set value : 0.0 to 2.5 mm
9
Press the key.
• The set value is registered.
<LOCAL . C > [ #01 ]
CUT 1 ( 3 0 / 6 0 / 0 . 3 0 )
SPD PRS OFS
[CUT1] 30 60 0.30
SPD PRS OFS
[CUT2] 20 50 0.50
SPD PRS OFS
[CUT2] 2
0 50 0 . 50
SPD PRS OFS
[CUT2] 20 5
0 0.50
SPD PRS OFS
[CUT2] 20 6
0 0.50
SPD PRS OFS
[CUT2] 20 60 0.5
0
SPD PRS OFS
[CUT2] 20 60 0.3
0
SPD PRS OFS
[CUT2] 20 60 0.30
