NAiS FP1 User Manual

12

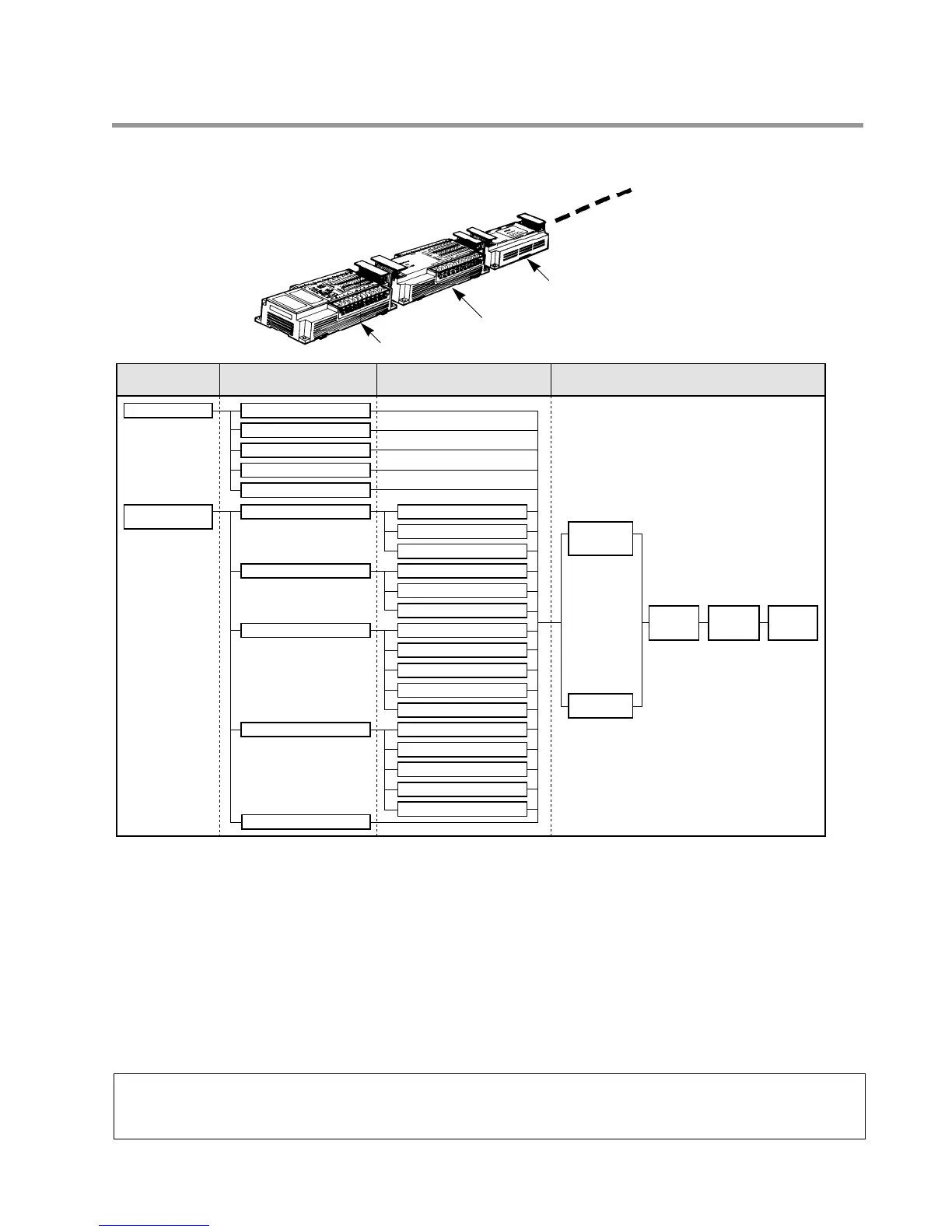

1-3. Expansion and Configurations
1-3. Expansion and Configurations
1. Expansion of Units
Be sure to check that the units are expanded according to the following restrictions:
1) Expansion Units
Note:
• Expansion units (E8 and E16 series) which do not require power supply cannot be connected in
succession. For this reason, when an E8 series or an E16 series is used as a primary expansion unit, it
can only be combined with E24 or E40 series as secondary expansion unit.
■ Control Units (C24, C40, C56 or C72 series)
• Number of expandable units: Max. 2 units
• Total number of I/O points:
C24 series: Max. 104 points
C40 series: Max. 120 points
C56 series: Max. 136 points
C72 series: Max. 152 points
■ Control Units (C14 and C16 series)
• Number of expandable units: 1 unit
• Total number of I/O points:
C14 series: Max. 54 points
C16 series: Max. 56 points
C14 or C16 series E8 series
E16 series
E24 series
E40 series
E8 series
E16 series
E24 series
E40 series
E24 series
E40 series
E24 series
E40 series
E8 series
E16 series
E24 series
E40 series
E8 series
E16 series
E24 series
E40 series
FP1 D/A
Converter
Unit
FP1 D/A
Converter
Unit
C24, C40, C56 or
C72 series
FP1 I/O
Link Unit
One unit
FP1 A/D
Converter
Unit
One unit
or
Control Unit
Primary
Expansion Unit
Secondary
Expansion Unit
Intelligent Unit and Link Unit
FP1
Transmitter
Master Unit
FP1 Transmitter Master Unit
FP1 Transmitter Master Unit
FP1 Transmitter Master Unit
FP1 Transmitter Master Unit
FP1 Transmitter Master Unit
FP1 Transmitter Master Unit
Control Unit
Expansion Unit
Intelligent Unit
Example:
