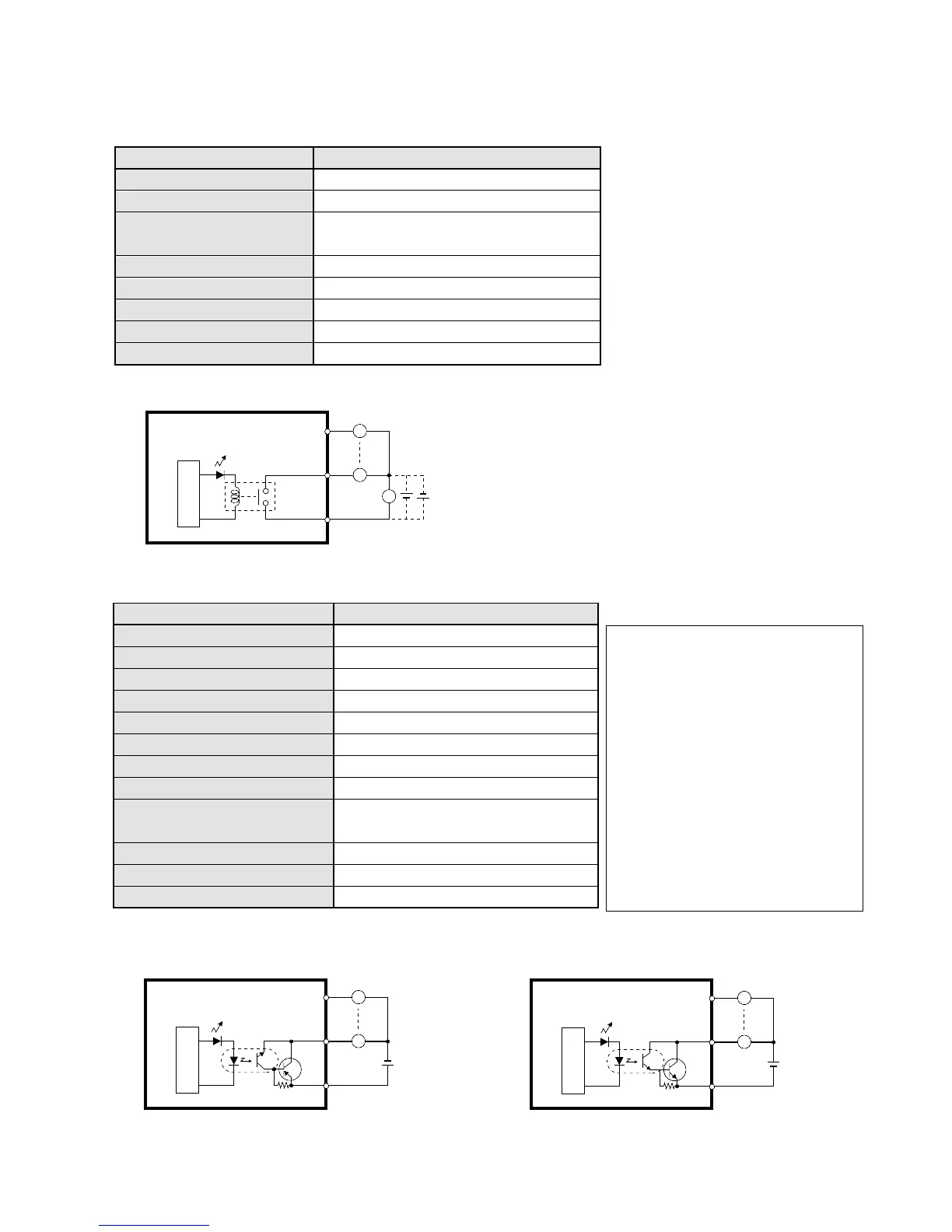

2-2. Specifications
3) Output Specifications of Control Unit and Expansion Unit
■ Relay output type
■ Transistor output type (PNP or NPN open collector)
(FP1 Control/Expansion Unit)
L
Internal
circuit
"
"
"
Output
terminals
• Wiring diagram
L
COM
L
Internal
circuit
"
"
"
Output
terminals
L
COM
L: Load
L: Load
NPN open collector typePNP open collector type
LED
LED
1. For C56 and C72 series
Control Units, make the current
for one common no more than
the following values.
1 point/common circuit:
0.5 A/common
4 points/common circuit:
1 A/common
8 points/common circuit:
2 A/common
2. For C14, C16, C24, and C40
series, Y7 only is 100 µs
maximum, and for C56 and
C72 series, Y6 and Y7 are 100
µs maximum.
Insulation method
Output type
Rated load voltage range
Operating load voltage range
Max. load current
Max. surge current
OFF state leakage current
ON state voltage drop
Response time
(See note 2.)
Surge absorber
Operating mode indicator
Connection method
Optical coupler
Transistor PNP or NPN open collector
5 V to 24 V DC
4.75 V to 26.4 V DC
0.5 A/point (at 24 V DC) (See note 1.)
3A
100 µA or less
1.5 V or less
1 ms or less
1 ms or less
Zener diode
LED
Terminal block (M3.5 screw)
OFF → ON
ON → OFF
Item Description
(FP1 Control/Expansion Unit)
L
Internal
circuit
"
"
"
Output
terminals
• Wiring diagram
L
~
COM
L: Load
LED
Output type
Rated control capacity
Response time
Mechanical life time
Electrical life time
Surge absorber
Operating mode indicator
Connection method
Normally open (1 Form A)
2 A 250 V AC, 2 A 30 V DC (5 A/common)
8 ms or less
10 ms or less
5 × 10
6
operations or more
10
5
operations or more
None
LED
Terminal block (M3.5 screw)
OFF → ON
ON → OFF
Item Description
Notes:
