6. Basic Key Operation for Programs

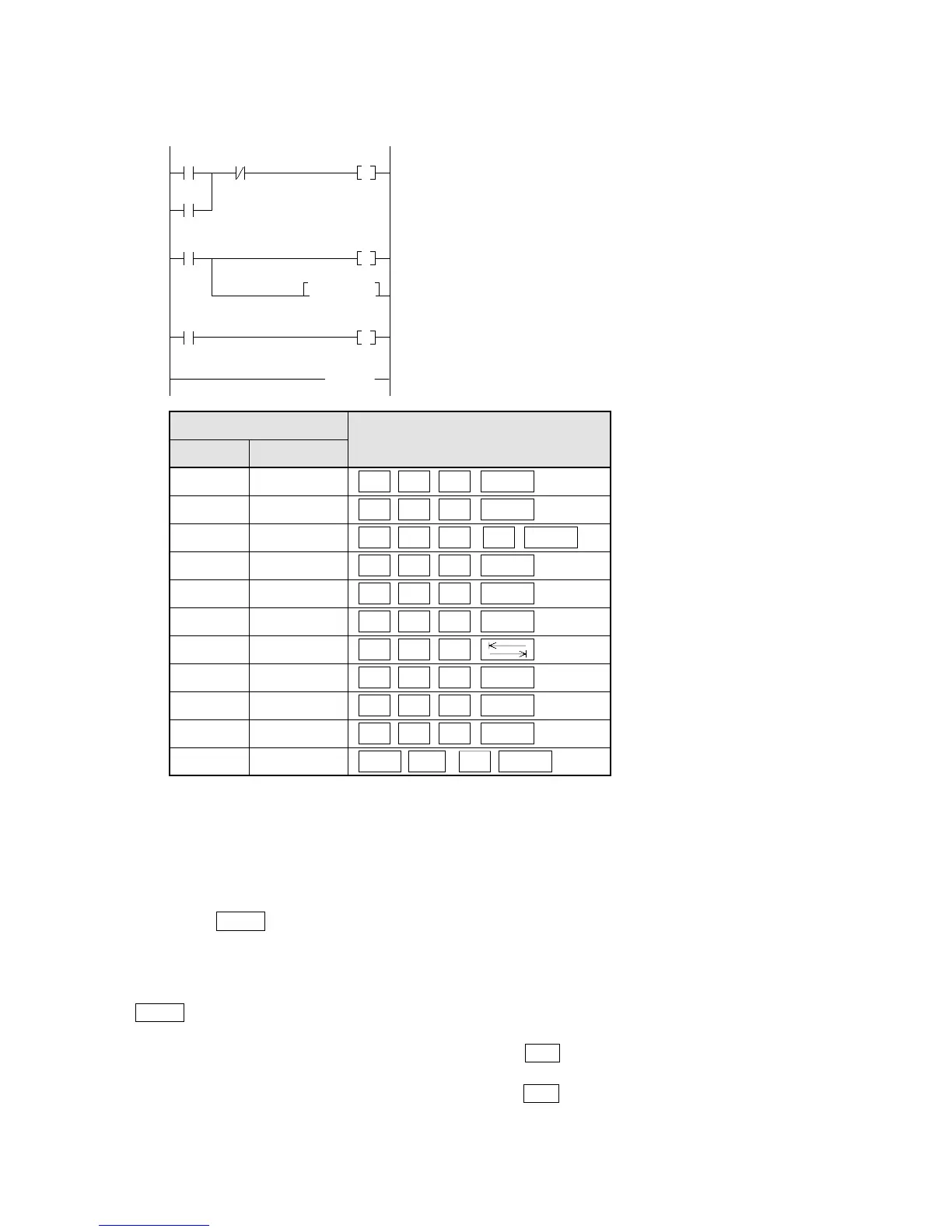

Input the following program using the ladder symbol mode.
When you first start NPST-GR, you will be in the ladder symbol mode.
The [1.PROGRAMMING STYLE] option changes the programming style to the Boolean non-ladder mode.
Procedure
1. Select the [EDIT A PROGRAM] option from the NPST menu.
2. Select the [1.PROGRAMMING STYLE] option from the [EDIT A PROGRAM] menu.
3. Select “BOOLEAN NONLADDER” from the [PROGRAMMING STYLE] window.
4. Press .
■ Program Input
Input the program using the function keys. The command language input will be displayed in the input field at the
bottom of the screen. It will be interpreted and displayed as an element on the ladder diagram when you press the
key.
[Input Deletions]
When deleting from the input field...................................Press .
When deleting from the ladder diagram display area.......Move the cursor to the location containing the mistake and
press .
Refer to the “NPST-GR Software” manual for details.
